Star Tech x4 PCIe 3.0 to M.2 PCIe SSD Adapter for M.2 SSD (NVMe/AHCI)

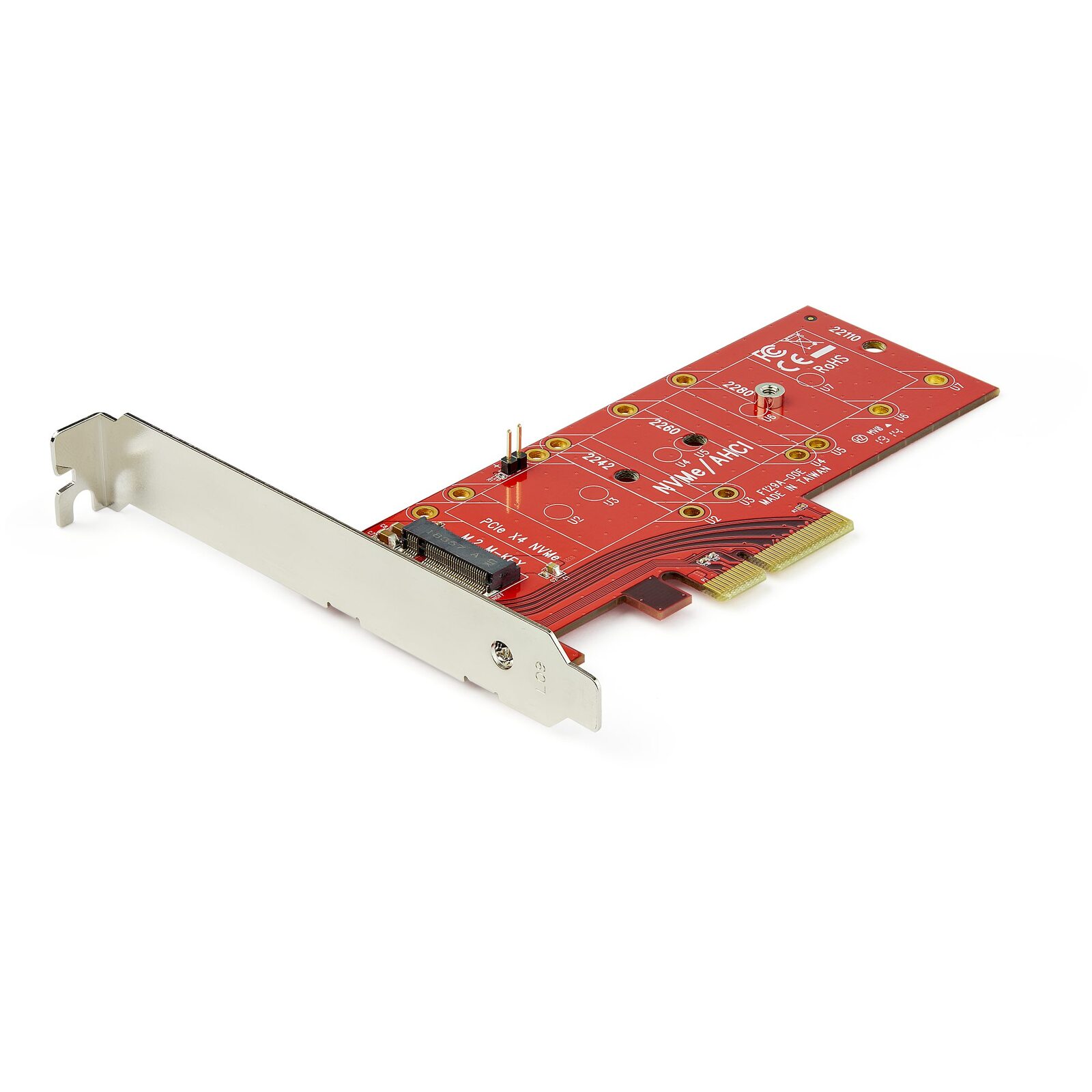

Get ultra-fast data access by adding a PCIe M.2 SSD to your existing computer. This adapter lets you add a high-speed, 4-lane M.2 SSD (PCIe-based), such as a Samsung 950 Pro or Samsung SM 951, to a PC with an available x4 PCI Express expansion slot. You can mount the PCIe M.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.

Boost your system speed and performance

The expansion card lets you take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an M.2 PCIe-based SSD (NVMe or AHCI) through ultra-fast x4 PCIe. The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0. With the M.2 PCIe based drive in place, the adapter gives your computer a significant speed boost.

Supports PCIe M.2 SSDs

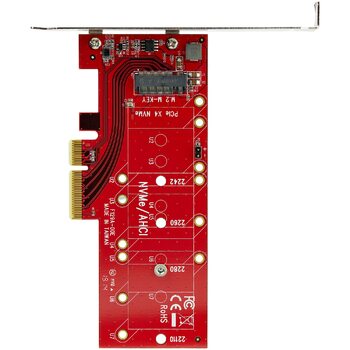

The adapter supports PCIe 3.0 x4 NVMe (M Key) and PCIe-AHCI M.2 SSDs including 2242, 2260, 2280, and 22110 drives. The expansion slot adapter supports the most common drive sizes including 110 mm, 80 mm, 60 mm and 42 mm.

Easy to install

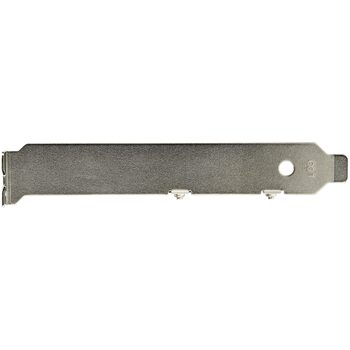

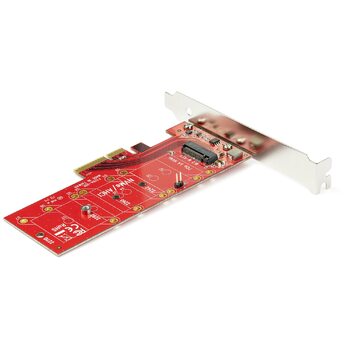

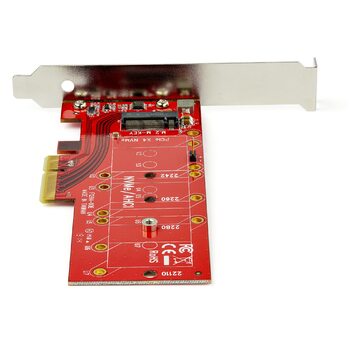

The expansion card is equipped with a full-profile bracket and includes a half-height/low-profile bracket, for installation in small form-factor computers.

(PEX4M2E1)

This item comes with a 2 Years warranty

Boost your system speed and performance

Indicators
LED Indicators  : Pin header on board for drive LED connection

Packaging Information
Package Height  : 46 mm [1.8 in]
Package Length  : 15.9 cm [6.3 in]
Package Width  : 21.9 cm [8.6 in]
Shipping (Package) Weight  : 151 g [5.3 oz]

Performance
Hardware Raid Supported  : No
Hot Swap Capability  : No
Type and Rate  : PCI Express 3.0 (8 Gbps)

Physical Characteristics
Color  : Red
Material  : Steel
Max Drive Height  : 110 mm [4.3 in]
Product Height  : 0.4 cm [0.2 in]
Product Length  : 13.5 cm [5.3 in]
Product Width  : 8 cm [3.1 in]
Weight of Product  : 47 g [1.7 oz]

Prominence
Description CDW 75 - 1st Line  : StarTech.com PCI Express 3.0 x4 to M.2 PCIe 3.0 NVMe - SSD Adapter Card

Software
OS Compatibility  : OS independent; No software or drivers required

Special Notes / Requirements
Note  : An operating system that natively supports PCIe SSDs (NVMe), such as: - Windows® 8 and later - Mac OS 10.10.3 and later

What's in the Box
Included in Package  : full-profile bracket (pre-installed)
low-profile bracket
quick start guide
SSD standoff and installation screw
x4 PCI Express® to M.2 PCIe SSD Adapter

Hardware
Supported Drive Height(s)  : 2280
2260
2242
22110
Number of Drives  : 1
Interface  : PCI Express x4
Drive Size  : 22m - M.2 NGFF
Drive Installation  : Fixed
Compatible Drive Types  : M.2 (PCIe, AHCI, M-Key, NGFF)
Bus Type  : PCI Express

Environmental
Storage Temperature  : -25°C to 70°C (-13°F to 158°F)
Operating Temperature  : 5°C to 50°C (41°F to 122°F)
Humidity  : 15% ~ 90% RH

Connector(s)
Host Connectors  : PCI Express x4 Male
Drive Connectors  : M.2 (PCIe, M-Key, AHCI/NVMe, NGFF)

Model # PEX4M2E1
Barcode # 065030865043
Brand STAR TECH
Shipping Weight 0.1500kg
Shipping Width 0.160m
Shipping Height 0.050m
Shipping Length 0.220m
Shipping Cubic 0.001602000m3
Type Adapter
