Star Tech 2-Port USB-C to HDMI MST Hub - 4K Multi-Stream Transport Hub

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

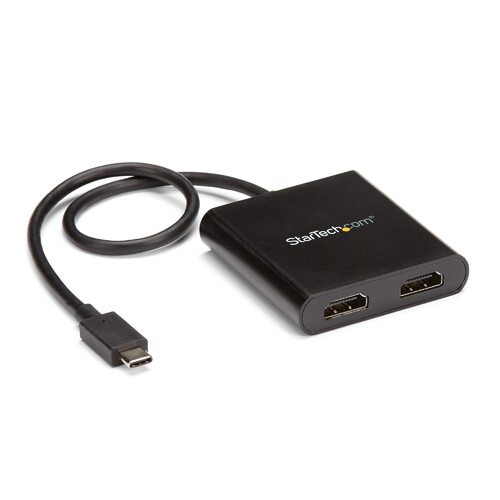

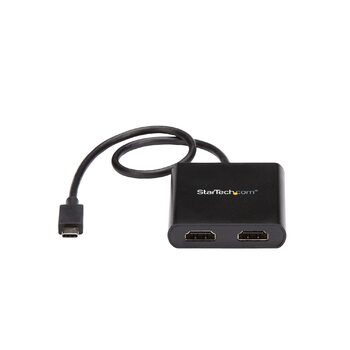

Star Tech 2-Port USB-C to HDMI MST Hub - 4K Multi-Stream Transport Hub

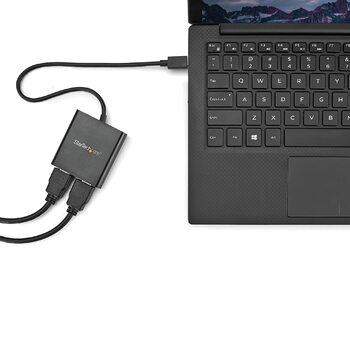

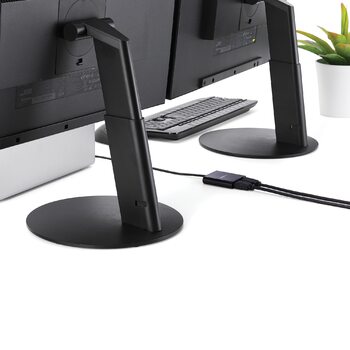

This USB-C to HDMI MST Hub lets you connect two HDMI monitors to your USB Type-C Windows device, conveniently helping you to maximize your productivity.

Multi-tasking Made Easy

With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This multi-stream transport hub solves that problem by enabling you to connect two separate displays to your USB-C computer, making multi-tasking much easier. Using this USB-C to HDMI video splitter, you can mirror your display onto additional monitors or stream independent content to each display, which makes it the ideal accessory for travel or hot-desking.

Astonishing Picture Quality

MST technology uses your existing video card to minimize the use of system resources, while delivering UHD 4K resolutions for two monitors or displays simultaneously. With support for HD 1080p and UHD 4K the USB-C hub is perfect for all high-resolution applications such as graphic design and CAD drawing.

Hassle-Free Setup

Multi-stream transport offers an easy setup by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C to HDMI hub is Thunderbolt 3 compatible, and offers plug-and-play installation with no drivers or software required. Additionally, this dual-monitor splitter is powered by the USB-C port, meaning no external power cords are necessary.

(MSTCDP122HD)

This item comes with a 3 Years warranty

Hardware
Ports: 2

Packaging Information
Package Height: 32 mm [1.3 in]
Package Length: 17.4 cm [6.9 in]
Package Width: 14.4 cm [5.7 in]
Shipping (Package) Weight: 143 g [5 oz]

Performance
Audio Specifications: HDMI - 7.1 Channel Audio
Maximum Cable Distance To Display: 15.2 m [49.9 ft]
Maximum Digital Resolutions: 3840x2160 @ 30hz
Supported Resolutions:

Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.

Average resolution bandwidth allocation

1920x1080 (1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%

Note: Exceeding 100% will reduce functionality.


Wide Screen Supported: Yes

Physical Characteristics
Cable Length: 292.1 mm [11.5 in]
Color: Black
Material: Plastic

Special Notes / Requirements
Note: Your USB-C equipped device must support video (DP Alt Mode) to work with this adapter

What's in the Box
Included in Package: MST hub : quick-start guide

Hardware
Chipset ID: MegaChips - STDP4320
Parade - PS8402A
VIA/VLI - VL100
AV Output: HDMI - 1.4
AV Input: USB-C
Audio: Yes

Environmental
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Temperature: 5°C to 35°C (41°F to 95°F)
Humidity: 50-90%

Connector(s)
Connector B: HDMI (19 pin) Output Female

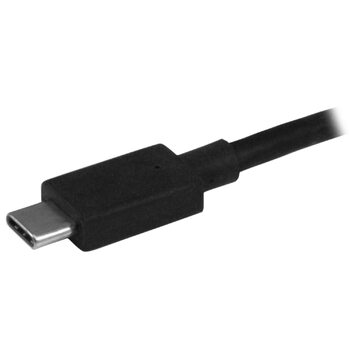

Connector A: USB-C (24 pin) DisplayPort Alt Mode Input Male

Software
OS Compatibility: Windows 10, 8.1, 8

Prominence
Description CDW 75 - 1st Line: StarTech.com 2-Port Multi Monitor Adapter - USB-C to Dual HDMI - MST Hub

Physical Characteristics
Weight of Product: 44 g [1.6 oz]
Product Width: 58 mm [2.3 in]
Product Length: 62 mm [2.4 in]
Product Height: 1.3 cm [0.5 in]

Model # MSTCDP122HD
Barcode # 065030866491
Brand STAR TECH
Shipping Weight 0.1400kg
Shipping Width 0.170m
Shipping Height 0.030m
Shipping Length 0.140m
Shipping Cubic 0.000714000m3
Type AV Adapter/Converter
