Star Tech USB-C USB-A Dock - Hybrid Universal USB 3.0 Laptop Dock

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Star Tech USB-C USB-A Dock - Hybrid Universal USB 3.0 Laptop Dock

Up to 4096 x 2160p @ 60Hz

  • Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz

  • Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz

  • Single 5K DisplayPort* | Up to 5120 × 2880

    • *Requires monitor support for 5K using two DP ports

    Certified for Maximum Compatibility & Performance

    This docking station is fully certified to meet top industry standards for DisplayLink (video connections) certification to guarantee the highest quality, performance, and compatibility.

    Flexible Setup Options

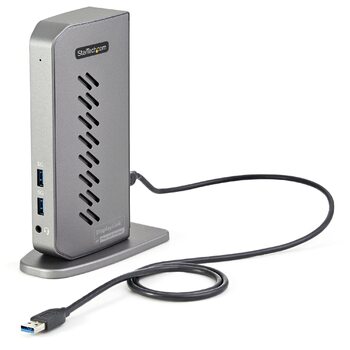

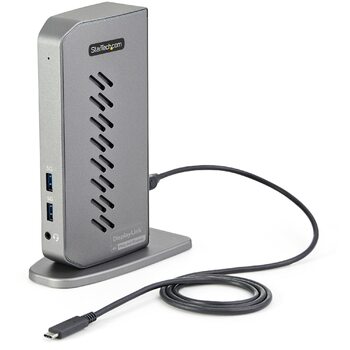

    For fast setup right out of the box, the two included host cables (USB-C and USB-A) connect to any laptop. The included dock stand lets you position the dock vertically to save space or lay flat on the desk.

    The Connections You Need

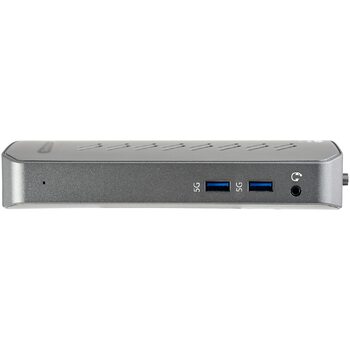

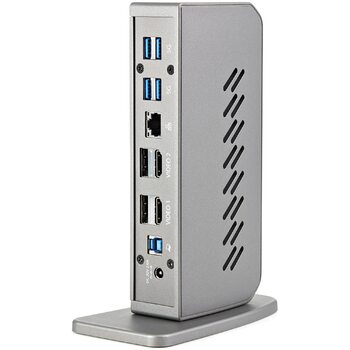

    Connect your devices with six downstream USB Type-A (USB 3.0 5 Gbps) ports, two positioned on the front, and four on the back. The dock provides a GbE port and a 3.5 mm 4-position headset audio jack.

    The IT Pro's Choice Since 1985

    StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

    (DK30A2DHU)

    This item comes with a 3 Years warranty

    Hardware
    Interface: USB 3.2 Gen 2 - 10 Gbit/s
    Ports: 8
    USB Pass-Through: Yes

    Packaging Information
    Package Height: 14.2 cm [5.6 in]
    Package Length: 10.9 cm [4.3 in]
    Package Width: 21 cm [8.3 in]
    Shipping (Package) Weight: 360 g [12.7 oz]

    Performance
    Maximum Digital Resolutions: 4K 60Hz
    MTBF: 26 280 hrs
    Wake-on-LAN (WoL): Wake-on-LAN (WoL): Yes

    Physical Characteristics
    Cable Length: 1 m [3.3 ft]
    Color: Black & Gray
    Material: Aluminum and Plastic
    Product Height: 18.7 cm [7.4 in]
    Product Length: 7.3 cm [2.9 in]
    Product Width: 13.5 cm [5.3 in]
    Weight of Product: 340 g [12 oz]

    Power
    Input Current: 1.0A
    Input Voltage: 110V-240V AC
    Output Current: 2A
    Output Voltage: 20V DC
    Plug Type: N
    Power Consumption (In Watts): 40W
    Power Source: AC Adapter Included

    Prominence
    Description CDW 75 - 1st Line: StarTech.com USB-C USB-A Dock - Hybrid Docking Station Dual 4K 60Hz HDMI/DP

    Software
    OS Compatibility: Windows®️ 2000, XP, Vista, 7, 8, 8.1, 10
    macOS 10.6 - 10.12, 10.14 - 10.15, 11.0
    Chrome OS™️ v55+

    Special Notes / Requirements
    Note: DisplayLink docking stations and video adapters support more than one external display on Apple's M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup.

    What's in the Box
    Included in Package: Dock Stand : Docking Station : Quick-Start Guide : Universal Power Adapter (NA/JP, ANZ) : USB-A to USB-B Cable : USB-C to USB-B Cable

    Hardware
    Fast-Charge Port(s): Yes
    Displays Supported: 2
    Chipset ID: DL-6950
    Bus Type: USB-C
    Audio: Yes
    4K Support: Yes

    Environmental
    Storage Temperature: -20 to 70°C
    Operating Temperature: 0 to 50°C
    Humidity: 0% to 95% (non-condensing) at 25°C

    Connector(s)
    Host Connectors: USB 3.1 USB Type-B (9 pin, Gen 1, 5 Gbps) Receptacle
    Connector Type(s): USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps) Receptacle : RJ-45 Receptacle Latching: HDMI Receptacle : DisplayPort Receptacle : 3.5 mm Audio Receptacle

    Model # DK30A2DHU
    Barcode # 065030891349
    Brand STAR TECH
    Shipping Weight 0.3600kg
    Shipping Width 0.110m
    Shipping Height 0.140m
    Shipping Length 0.210m
    Shipping Cubic 0.003234000m3
    Type Docking Station
