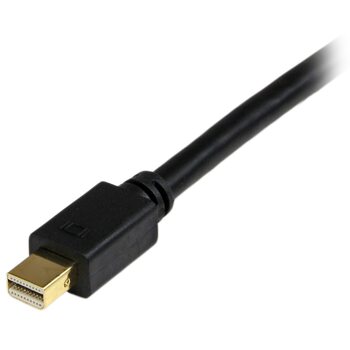

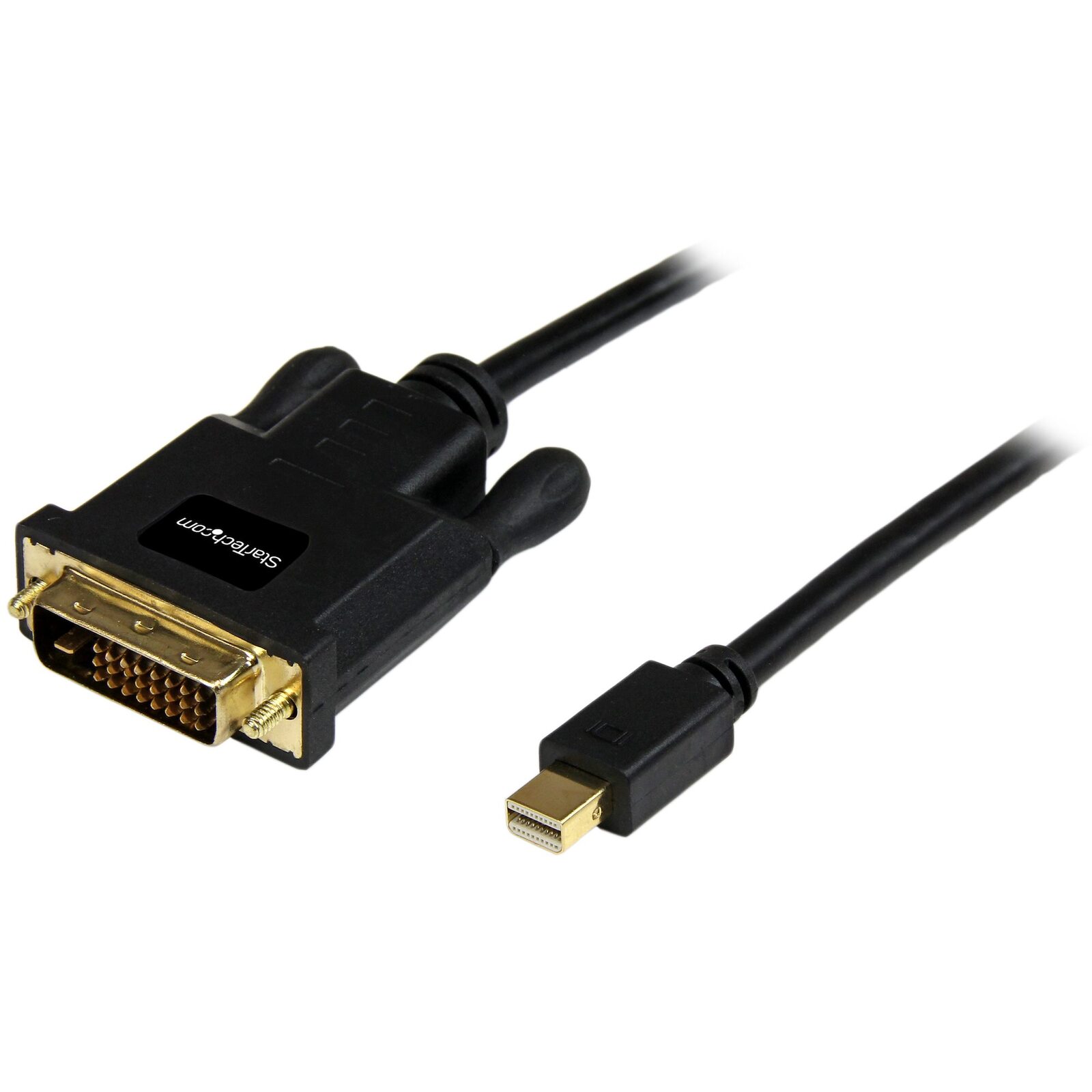

Star Tech 3ft Mini DisplayPort to DVI Adapter - Mini DP to DVI - Black

The MDP2DVIMM3B Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.

The adapter cable is 3 feet (1 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display device with no additional cabling required.

Compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).

MDP2DVIMM3B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

(MDP2DVIMM3B)

This item comes with a 3 Years warranty

Performance
Maximum Cable Length: 0.9 m [3 ft]
Maximum Digital Resolutions: 1920x1200 / 1080p
MTBF: 2,405,577 hours
Wide Screen Supported: Yes

Physical Characteristics
Cable Length: 0.9 m [3 ft]
Color: Black
Product Height: 1.5 cm [0.6 in]
Product Length: 92 cm [36.2 in]
Product Width: 3.8 cm [1.5 in]
Weight of Product: 69.4 g [2.5 oz]

Prominence
Description CDW 75 - 1st Line: StarTech.com 3ft Mini DisplayPort to DVI Adapter Cable - Mini DP to DVI-D

Special Notes / Requirements
System and Cable Requirements: DP++ (DisplayPort++) port required from video card or video source for DVI and HDMI® signal pass-through

What's in the Box
Included in Package: Mini DisplayPort® to DVI Adapter

Performance
Audio Specifications: DVI - No Audio Support

Packaging Information
Shipping (Package) Weight: 86 g [3 oz]
Package Width: 20 cm [7.9 in]
Package Length: 22 cm [8.7 in]
Package Height: 1.7 cm [0.7 in]

Hardware
Chipset ID: NXP - 3361
AV Output: DVI-D - Single-Link
AV Input: Mini DisplayPort - 1.2
Audio: No
Active or Passive Adapter: Passive

Environmental
Storage Temperature: 0°C to 70°C (32°F to 158°F)
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Humidity: 40%-85%RH

Connector(s)

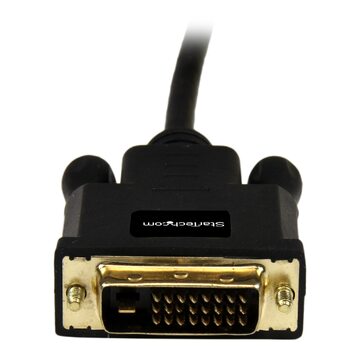

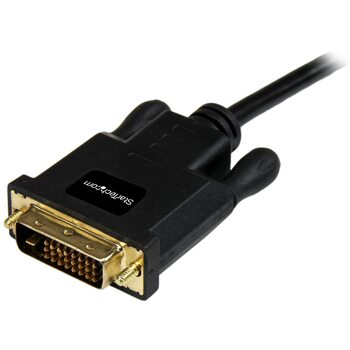

Connector B: DVI-D (25 pin) Male

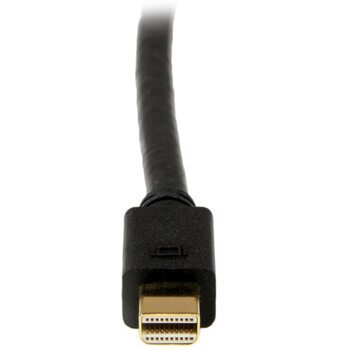

Connector A: Mini-DisplayPort (20 pin) Male

Model # MDP2DVIMM3B
Barcode # 065030851527
Brand STAR TECH
Shipping Weight 0.0900kg
Shipping Width 0.220m
Shipping Height 0.020m
Shipping Length 0.200m
Shipping Cubic 0.000880000m3
Type DisplayPort Cable
