Star Tech Thunderbolt 3 to Dual DP Adapter - 4K60 - Mac and Windows

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Star Tech Thunderbolt 3 to Dual DP Adapter - 4K60 - Mac and Windows

This high-performance Thunderbolt™ 3 adapter lets you add two 4K 60Hz DisplayPort monitors to your Windows® or Mac computer through a single Thunderbolt 3 port, or it can be used to connect your Thunderbolt 3 port to a 5K 60Hz display using two DP cables.

The Thunderbolt video adapter is compatible with computer systems that support Thunderbolt 3, such as models of MacBook Pro, Dell™ Precision, and Dell XPS. Thunderbolt 3 is a protocol that uses the USB-C™ connector, but your computer system must support Thunderbolt 3 in order for the adapter to function as expected. If you connect the adapter to a USB-C port that does not support Thunderbolt 3, the adapter will not function.

Connect two UHD 4K displays to your computer at 60Hz resolution

With an unprecedented 40Gbps of throughput, Thunderbolt 3 enables you to achieve the previously impossible feat of using a single port on your laptop to output dual 4K resolution at 60Hz to two independent displays. This performance enables you to run the most resource-demanding applications imaginable on two independent displays. You can output independent content to each display at resolutions of up to 4096 x 2160p (60Hz), which is perfect for editing 4K video or performing other Ultra HD tasks such as creating CAD drawings or reviewing medical imagery.

Connect a 5K display to your computer at 60Hz resolution

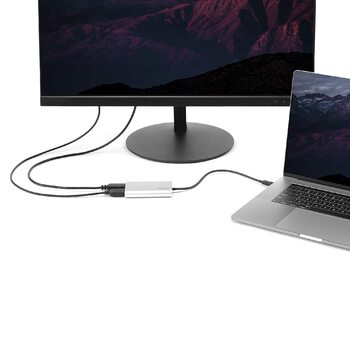

For added versatility, the Thunderbolt 3 adapter can be used to connect two DisplayPort channels to a single 5K display. Using a Thunderbolt 3 adapter is the only way to connect a 5K display to computers that don’t have multiple DP or Thunderbolt 3 ports, such as your Dell Precision 15 3000 Series workstation.

Supports dual 4K displays to work more efficiently

Functioning as an external 2-port graphics adapter with audio support, this is a compact and convenient alternative to a laptop dock when you don’t need full docking capability.

With two UHD 4K displays, you can work more efficiently from your laptop, so you can accomplish more in the same amount of time. Plus, with each display delivering 4K performance, you can have four times the screen space compared to 1080p. Creative professionals can be more productive with the freedom to edit 4K video on one display while previewing raw video playback on the second 4K display.

Won't drain system resources

This adapter helps to keep your system running at peak performance. Unlike USB external video solutions, Thunderbolt 3 lets you run Ultra HD 4K resolution at 60Hz on both displays without draining system resources.

Because it’s backward compatible with your high-definition 1080p displays, this is a great accessory for home, office or other desktop workspace applications.

(TB32DP2T)

This item comes with a 24 months warranty

Physical Characteristics
Cable Length: 300 mm [11.8 in]
Color: Silver
Product Height: 1.5 cm [0.6 in]
Product Length: 11 cm [4.3 in]
Product Width: 60 mm [2.4 in]
Weight of Product: 93 g [3.3 oz]

Prominence
Description CDW 75 - 1st Line: StarTech.com Thunderbolt 3 to Dual DisplayPort Adapter 4K 60Hz - TB3 to DP

Software
OS Compatibility: Microsoft Windows® 8, 8.1, 10
macOS 10.12 - 10.15, 11.0

Special Notes / Requirements
Note: MacBook Air, MacBook Pro and Mac Mini systems using the new Apple M1 chip support only a single external display over the Thunderbolt 3 ports, even when connected to a Thunderbolt 3 adapter with more than one video output. This limitation also applies to using multiple Thunderbolt or Type C display adapters on both Type C ports. : The adapter will only function when connected to the Thunderbolt 3 port of your computer. If the port is a USB-C port that does not support Thunderbolt 3 the adapter will not function.

What's in the Box
Included in Package: Thunderbolt 3 to dual DP adapter

Performance
Supported Resolutions: 4096x2160
3840x2160
2560x1600
1920x1200
1920x1080
1280x720

Note: The adapter can support 5120×2880 (5K) when both DP outputs are connected to a single monitor that supports 5K.
Maximum Digital Resolutions: Dual monitor: 4K @ 60 Hz
Maximum Data Transfer Rate: 40 Gbps

Packaging Information
Shipping (Package) Weight: 221 g [7.8 oz]
Package Width: 14.5 cm [5.7 in]
Package Length: 21.2 cm [8.3 in]
Package Height: 40 mm [1.6 in]

Hardware
Chipset ID: PD TI TPS65983 : Intel JHL6540
AV Output: DisplayPort
AV Input: Thunderbolt™ 3 USB-C (24-pin) (40Gbps)
Audio: Yes
Active or Passive Adapter: Active

Connector(s)

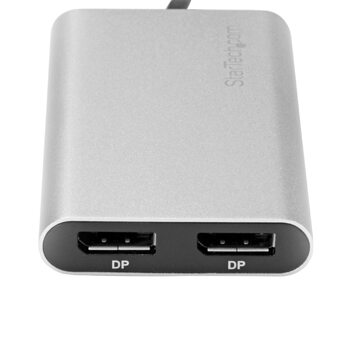

Connector B: DisplayPort (20 pin) Output Female

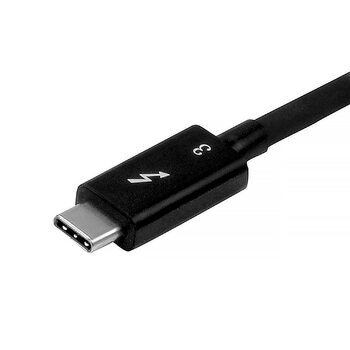

Connector A: Thunderbolt™ 3 USB-C (24-pin) (40Gbps) Input Male

Model # TB32DP2T
Barcode # 065030867238
Brand STAR TECH
Shipping Weight 0.2200kg
Shipping Width 0.210m
Shipping Height 0.040m
Shipping Length 0.150m
Shipping Cubic 0.001260000m3
Type AV Adapter/Converter
