Star Tech USB 3.0 VGA video adapter - on-board driver installation

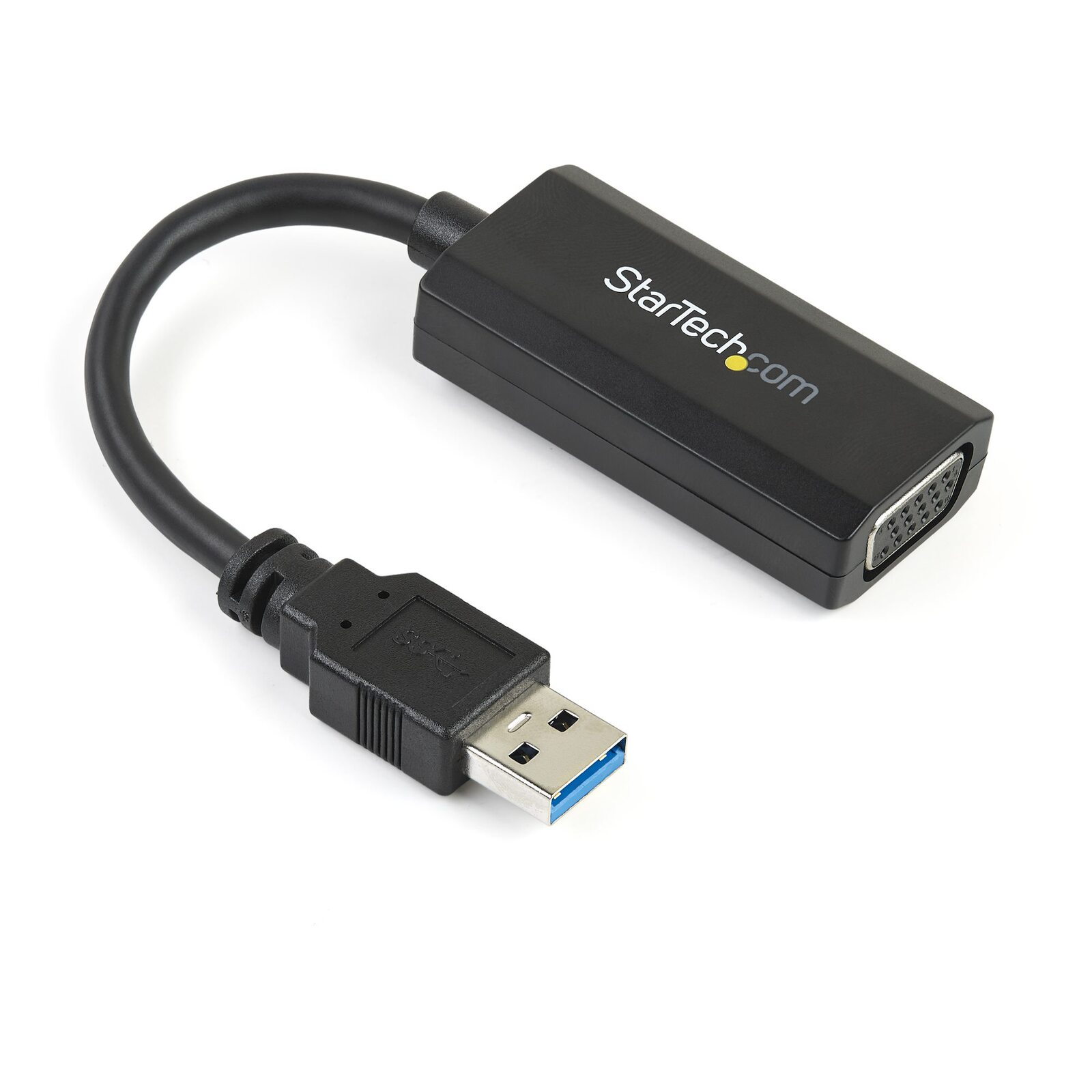

This USB 3.0 to VGA video adapter works as an external video card, enabling the USB port on your computer to output video to a VGA display at 1920 x 1200 resolution. The adapter also features on-board driver installation, which means the adapter will work when you connect it, even without a software disc or Internet connection.

Save time and hassle with on-board driver installation

For the ultimate in hassle-free installation, this USB video adapter features on-board drivers which prompts for installation as soon as you connect the adapter to your Ultrabook™ or laptop computer. This means you can maximize portability by never requiring an installation disc or Internet connection to install the device.

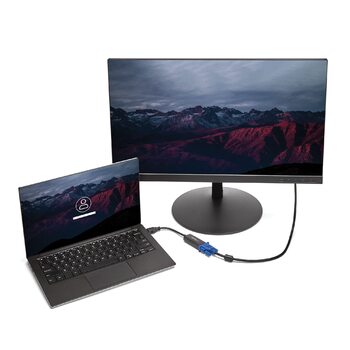

Increase your productivity by connecting an additional display

Adding a second or third display to your computer can vastly increase your productivity by giving the freedom to access more applications at the same time. This video adapter is intended to support all of your business applications including web browsing, e-mail. spreadsheets and presentations. You can also leave your system video card available for more demanding applications such as gaming or CAD design, while you use the USB monitor for reference material.

USB 3.0 performance for business applications

Using the high-bandwidth USB 3.0 interface, this adapter enables smoother scrolling through documents, higher refresh rates and an overall enhanced performance over USB 2.0. The adapter is optimized for use with USB 3.0, but for added compatibility this adapter is also backward compatible with USB 2.0 computer systems supporting an 800 x 600 resolution at 60Hz.

(USB32VGAV)

This item comes with a 24 months warranty

Performance
Recommended System Requirements: Recommended System Requirements:
Core 2.4GHz or higher processor (i5 recommended)
4GB of RAM
General Specifications: This USB video adapter uses a Fresco family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Trigger family chipset.
Maximum Analog Resolutions: USB 3.0: 1920x1200
USB 2.0: 800x600
MTBF: 1,138,683 hours
Supported Resolutions: Widescreen(16/32 bit):
1920x1200, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720

Standard(16/32 bit):
1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600
Wide Screen Supported: Yes

Physical Characteristics
Cable Length: 139.7 mm [5.5 in]
Product Height: 1.2 cm [0.5 in]
Product Length: 19.5 cm [7.7 in]
Product Width: 25 mm [1 in]
Weight of Product: 9.3 g [0.3 oz]

Prominence
Description CDW 75 - 1st Line: StarTech.com USB 3.0 to VGA Adapter - Multi Monitor External Graphics Card

Software
Microsoft WHQL Certified: Yes
OS Compatibility: Windows® Vista, 7, 8, 8.1, 10

Special Notes / Requirements
Note: Connect a maximum of 6 USB video adapters on a single computer. Support for multiple adapters will vary depending upon your system resources : This USB video adapter is not intended for graphical intensive applications, such as gaming : This USB video adapter uses a Fresco Logic® family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, avoid using devices with different family chipsets, such as DisplayLink® or Trigger
System and Cable Requirements: System Processor: Quad Core 2.4GHz (i5 recommended)
System Memory: 4GB

What's in the Box
Included in Package: Quick install guide : USB 3.0 to VGA adapter

Packaging Information
Shipping (Package) Weight: 92 g [3.2 oz]
Package Width: 14.3 cm [5.6 in]
Package Length: 17.2 cm [6.8 in]
Package Height: 30 mm [1.2 in]

Hardware
USB Pass-Through: No
Memory: 8MB
Industry Standards: SuperSpeed USB 3.0, USB 2.0
Chipset ID: Fresco - FL2000DX
AV Output: VGA
AV Input: USB 3.0

Environmental
Storage Temperature: -10°C to 55°C (14°F to 131°F)
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Humidity: 40%~50% RH

Connector(s)

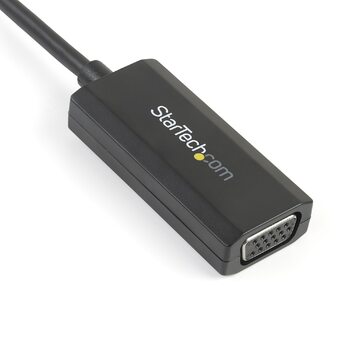

Connector B: VGA (15 pin, High Density D-Sub) Output Female

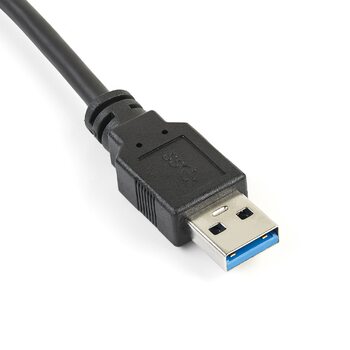

Connector A: USB Type-A (9 pin) USB 3.0 (5 Gbps) Input Male

Model # USB32VGAV
Barcode # 065030860833
Brand STAR TECH
Shipping Weight 0.0900kg
Shipping Width 0.170m
Shipping Height 0.030m
Shipping Length 0.140m
Shipping Cubic 0.000714000m3
Type AV Adapter/Converter
