Star Tech 3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card

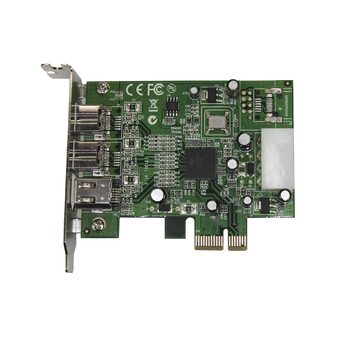

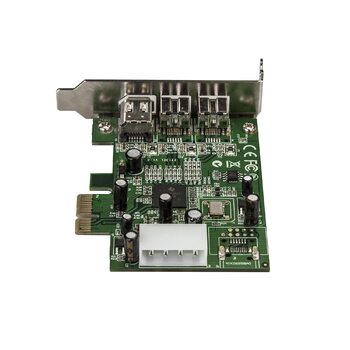

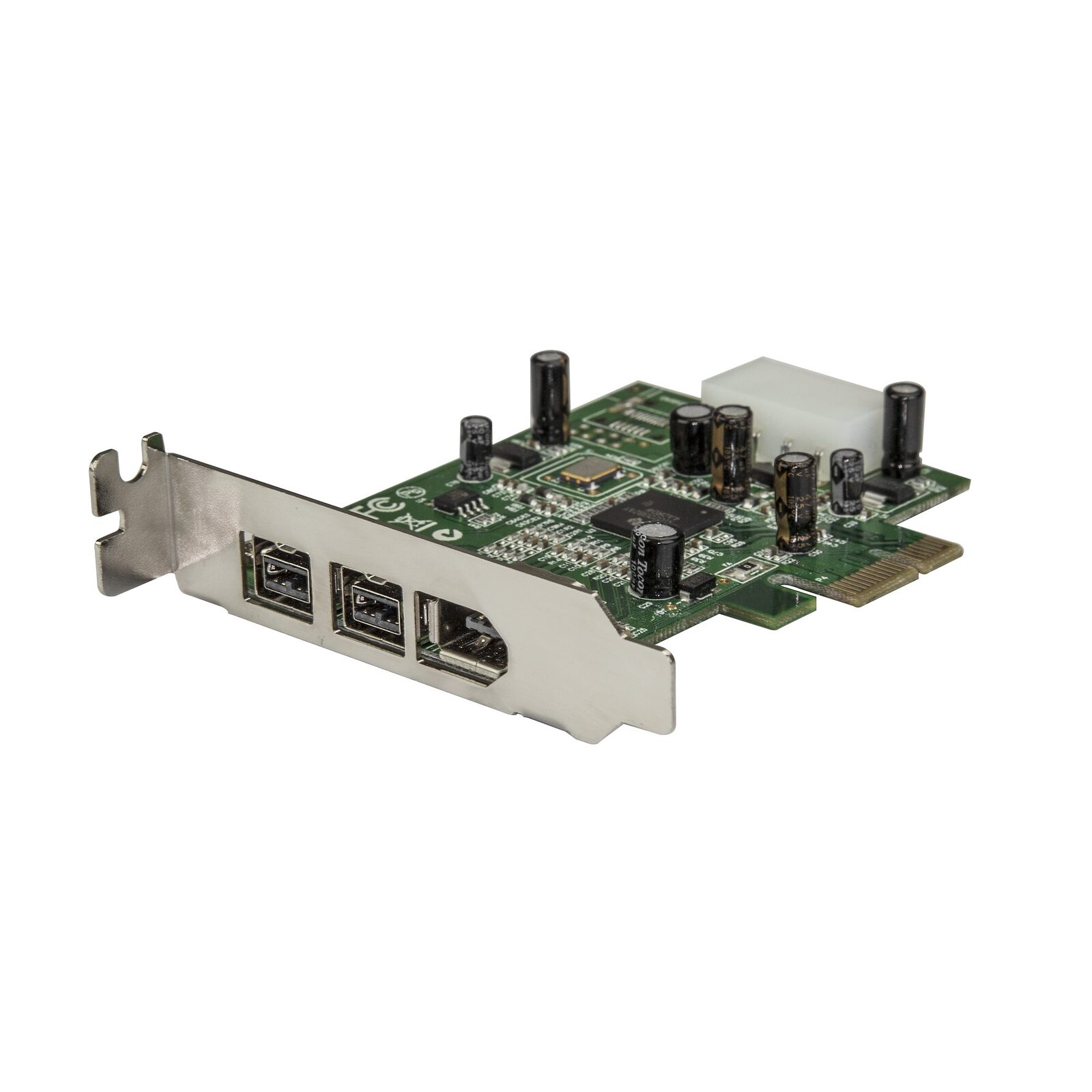

This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case.

The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).

The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip.

(PEX1394B3LP)

This item comes with 5 years warranty

The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip.

Packaging Information
Package Length  : 14.4 cm [5.7 in]
Package Quantity  : 1
Package Width  : 17.5 cm [6.9 in]
Shipping (Package) Weight  : 200 g [7.1 oz]

Performance
Maximum Data Transfer Rate  : 400/800 Mbps
MTBF  : 149,905 hours
Type and Rate  : FireWire 400 IEEE-1394a - 400 Mbit/s
FireWire 800 IEEE-1394b - 800 Mbit/s

Physical Characteristics
Material  : Steel
Product Height  : 2 cm [0.8 in]
Product Length  : 85 mm [3.3 in]
Product Width  : 58 mm [2.3 in]
Weight of Product  : 43 g [1.5 oz]

Software
OS Compatibility  : Windows® 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2016, 2019
macOS 10.6 to 10.15, 11.0
Linux 3.5.x to 4.4.x LTS Versions Only

Special Notes / Requirements
System and Cable Requirements  : PCI Express enabled computer with an available PCI Express x1 slot or higher

What's in the Box
Included in Package  : FireWire Cable
Full Profile Bracket
Instruction Manual
PCI Express FireWire Card
Software CD

Packaging Information
Package Height  : 32 mm [1.3 in]

Hardware
Ports  : 3
Interface  : FireWire 800 (1394b)
FireWire 400 (1394a)
Industry Standards  : IEEE-1394/1394A/1394B
OHCI
PCI Express 1.1
Chipset ID  : Texas Instruments - XIO2213B
Card Type  : Low Profile (SP bracket incl.)
Bus Type  : PCI Express

Environmental
Storage Temperature  : -20°C to 90°C (-4°F to 194°F)
Operating Temperature  : 0°C to 70°C (32°F to 158°F)
Humidity  : 0~90% RH

Connector(s)
Internal Ports  : LP4 (4 pin; Large Drive Power) Male
External Ports  : FireWire 800 (9 pin, IEEE 1394b) Female
FireWire 400 (6 pin, IEEE 1394a) Female
Connector Type(s)  : PCI Express x1 Male

Model # PEX1394B3LP
Barcode # 065030837897
Brand STAR TECH
Shipping Weight 0.2000kg
Shipping Width 0.140m
Shipping Height 0.030m
Shipping Length 0.180m
Shipping Cubic 0.000806000m3
Type Adapter Card
