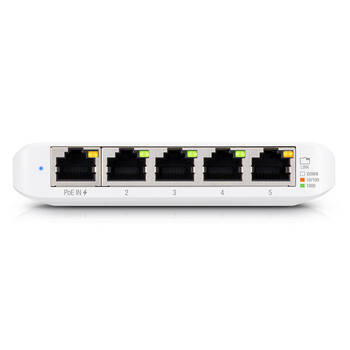

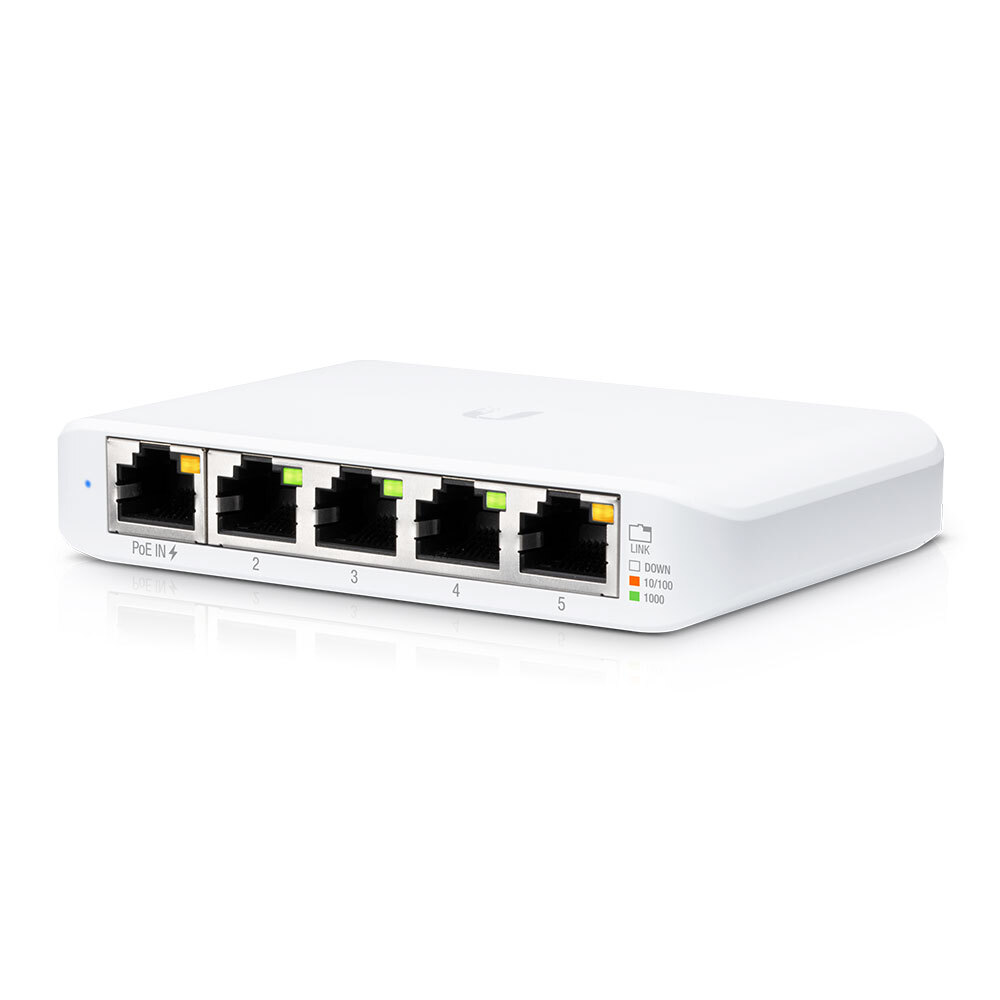

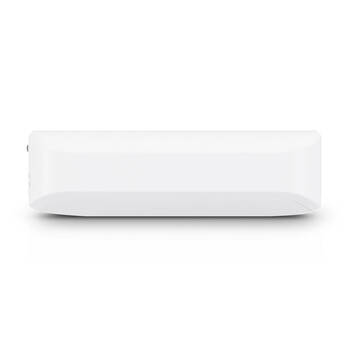

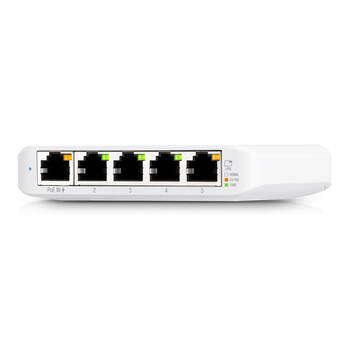

Ubiquiti USW Flex Mini Compact 5 Port Gigabit Switch

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter.

Build and expand your network with the UniFi® Switch, part of the Ubiquiti Networks® UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.
Managed by UniFi Network Controller version: 5.12.5 or higher

  • Works with UniFi Network Controller
  • Manage your networks from a single interface.
  • Enjoy intuitive configuration options, as well as robust device control and monitoring.
  • Upgrade device firmware remotely.
  • Easily manage network users and guests.
  • Personalize the design, architecture, and privacy of guest hotspots.

Includes:
1x Gigabit Ethernet Switch

(NHU-USW-FLEX-MINI)

Standard Consumer Warranty

Dimensions: 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83")
Weight: 150 g (5.29 oz)
Networking Interfaces: (5) 10/100/1000 Mbps RJ45 Ports
PoE In Interface: 802.3af/at PoE (Pins 1, 2+; 3, 6-)
Max. Power Consumption: 2.5W
Power Method: USB Type C, 5V 802.3af/at; PoE (44 - 57VDC, 0.05 - 0.04A)
Power Supply: 5V, 1A Power Adapter*
Voltage Range: USB Type C - 4.7 - 5.2VDC; 802.3af/at PoE - 44 - 57VDC
LEDs: System - Status; RJ45 Data Ports - Link/Speed/Activity
ESD/EMP Protection: ± 16kV Air, ± 12kV Contact
Operating Temperature: -5 to 45° C (23 to 113° F)
Operating Humidity: 10 to 90% Noncondensing
Certifications: CE, FCC, IC



Model # NHU-USW-FLEX-MINI
Barcode # 817882029810
Brand UBIQUITI
Shipping Weight 0.2300kg
Shipping Width 0.190m
Shipping Height 0.040m
Shipping Length 0.120m
Shipping Cubic 0.000912000m3
Type Ethernet Switch
