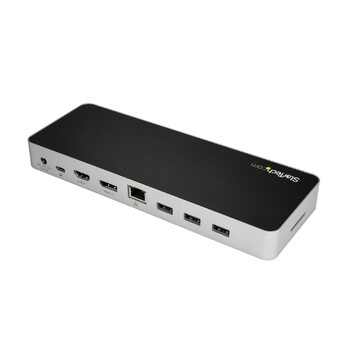

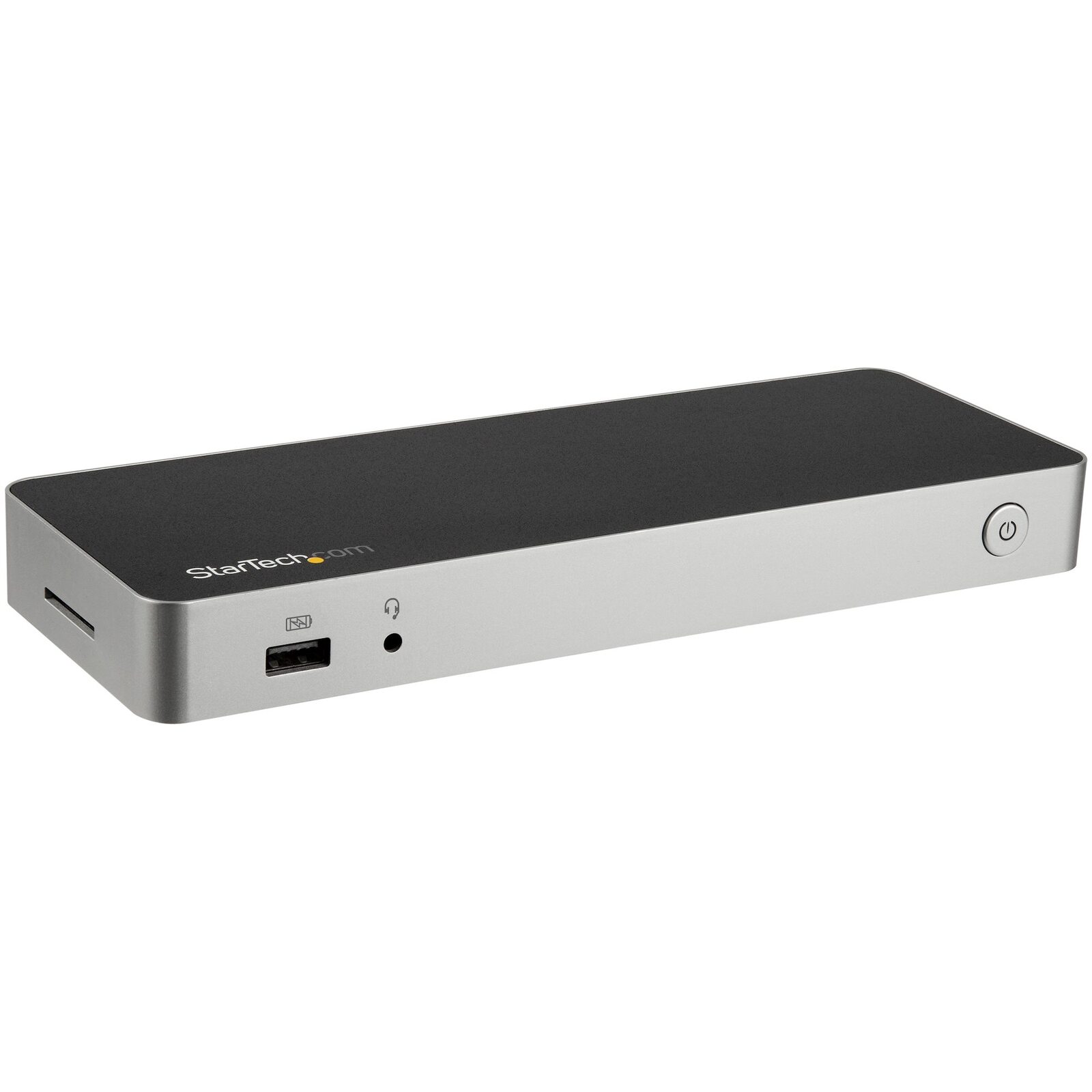

Star Tech Dual Monitor USB C Dock - Dual 4K DP / HDMI - 60W PD - SD

This dual-monitor USB-C™ dock transforms your MacBook or Windows® laptop into a dual Ultra HD 4K workstation, with support for 4K DisplayPort and HDMI monitors. It gives you all the connections to create a fully capable workstation, including an SD™ card reader slot.

The USB-C docking station features USB Power Delivery 2.0 (60W), to power and charge your laptop as you work. It’s the perfect companion for your MacBook Pro or other Thunderbolt™ 3 equipped laptop.

Create a dual-4K video workstation

The USB-C dock expands the display capabilities of your laptop across two Ultra HD 4K monitors. It enables DisplayLink® and USB-C DP Alt Mode to allow dual 4K video output to HDMI and DisplayPort 4K monitors. With the dual-4K dock, you can connect:

  • 1x 4K DisplayPort display at 3840 x 2160 resolution @ 30Hz
  • 1x 4K HDMI display at 3840 x 2160 resolution @ 30Hz

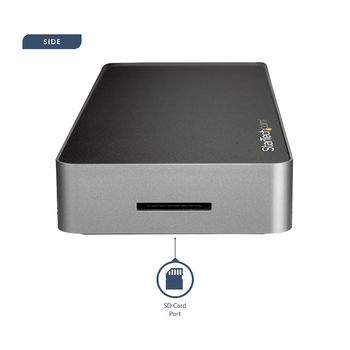

SD card reader

The dock provides direct access to your SD memory cards or microSD™ cards (with adapter). The SD card slot can also be used for additional storage and backup through macOS X Time Machine or Windows 10 File History.

Ample connections

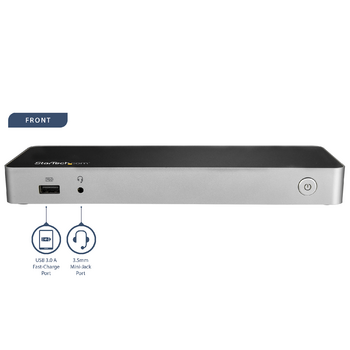

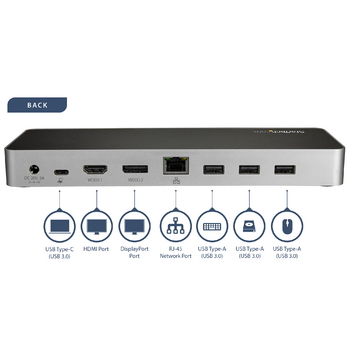

The dock provides four USB 3.0 (Type-A) ports to connect your peripherals, including a USB 3.0 fast-charge and sync port, a Gigabit Ethernet port, and a combined 3.5 mm audio and microphone port.

Universal support

Compatible with Mac and Windows, this universal dock works with USB-C and Thunderbolt 3 enabled laptops.

Connected Device Transparency with the StarTech.com MAC Address Changer Utility

The DK30CHDDPPD, includes a free Windows® application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer’s MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.



(DK30CHDDPPD)

This item comes with a 3 Years warranty

Hardware
Fast-Charge Port(s): Yes
Industry Standards: USB Power Delivery Specification Rev. 2.0
USB Battery Charging Specification Rev. 1.2
DisplayPort 1.2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Interface: USB 3.0

Packaging Information
Package Height: 90 mm [3.5 in]
Package Length: 27 cm [10.6 in]
Package Width: 15.5 cm [6.1 in]
Shipping (Package) Weight: 1.3 kg [2.9 lb]

Performance
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
General Specifications: Supports SD 4.0 and UHS-II (Ultra High Speed) for high speed file transfers, with bus speed up to 312MB/s
Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: HDMI (DP Alt Mode) - 3840 x 2160p @30Hz
DisplayPort (DisplayLink) - 3840 x 2160p @30Hz


Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.

Memory Media Type: microSD (Micro Secure Digital) (adapter required) : microSDHC (Micro Secure Digital High Capacity) (adapter required) : microSDXC (Micro Secure Digital eXtended Capacity) (adapter required) : SD/MMC (Secure Digital/Multimedia Card) : SDHC (Secure Digital High Capacity) : SDXC (Secure Digital eXtended Capacity)
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes

Physical Characteristics
Cable Length: 1000 mm [39.4 in]
Color: Black & Silver
Material: Plastic
Product Height: 2.5 cm [1 in]
Product Length: 22 cm [8.7 in]
Product Width: 80 mm [3.1 in]
Weight of Product: 261 g [9.2 oz]

Power
Center Tip Polarity: Positive
Input Current: 2 A
Input Voltage: 100 - 240 AC
Output Current: 5 A
Output Voltage: 20V DC

Hardware
Displays Supported: 2
Chipset ID: DisplayLink - DL-5700
Genesys Logic - GL3215
VIA Labs - VL813
Texas Instruments - TPS65983
Bus Type: USB-C
4K Support: Yes

Environmental
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Humidity: 0~95% RH

Connector(s)
Connector Type(s): USB Type-C (24 pin) USB 3.0 (5Gbps) Female: USB Type-A (9 pin) USB 3.0 (5 Gbps) Female : USB 3.0 A (Fast-Charge, 9 pin) Female : SD / MMC Slot Female: RJ-45 Female : HDMI (19 pin) Female : DisplayPort (20 pin) Female : 3.5 mm Mini-Jack (4 Position) Female

Power
Power Delivery: 60W
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com USB C Dock - 4K Dual Monitor HDMI/DisplayPort 60W PD/SD/4xUSB

Software
OS Compatibility: Windows® 7, 8, 8.1, 10
macOS 10.9 - 10.12, 10.14 - 10.15, 11.0
Ubuntu 18.04, 20.04
Chrome OS™ v55+

Special Notes / Requirements
Note: 4K resolution is supported on both video ports. A 4K-capable DisplayPort or HDMI display is required to achieve 4Kx2K resolutions : DisplayLink docking stations and video adapters support more than one external display on Apple's M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup. : Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode. : The card reader supports popular SD cards (SDSC, SDHC and SDXC including UHS cards), and is backwards compatible with older SD card versions. The card reader will also support microSD™ and miniSD™ (with adapter) and MMCmobile™, RS-MMC™ and MMCplus™ (with adapter). : USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
System and Cable Requirements: USB-C enabled computer with an available USB Type-C port

What's in the Box
Included in Package: docking station : instruction manual : universal power adapter (NA/JP, ANZ) : USB-C cable

Model # DK30CHDDPPD
Barcode # 065030868242
Brand STAR TECH
Shipping Weight 1.3000kg
Shipping Width 0.270m
Shipping Height 0.090m
Shipping Length 0.160m
Shipping Cubic 0.003888000m3
Type Docking Station
