USB Type-C Travel Laptop Dock - Mini Docking Station USB PD
Reviews
Be The First To Review This Product!
Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

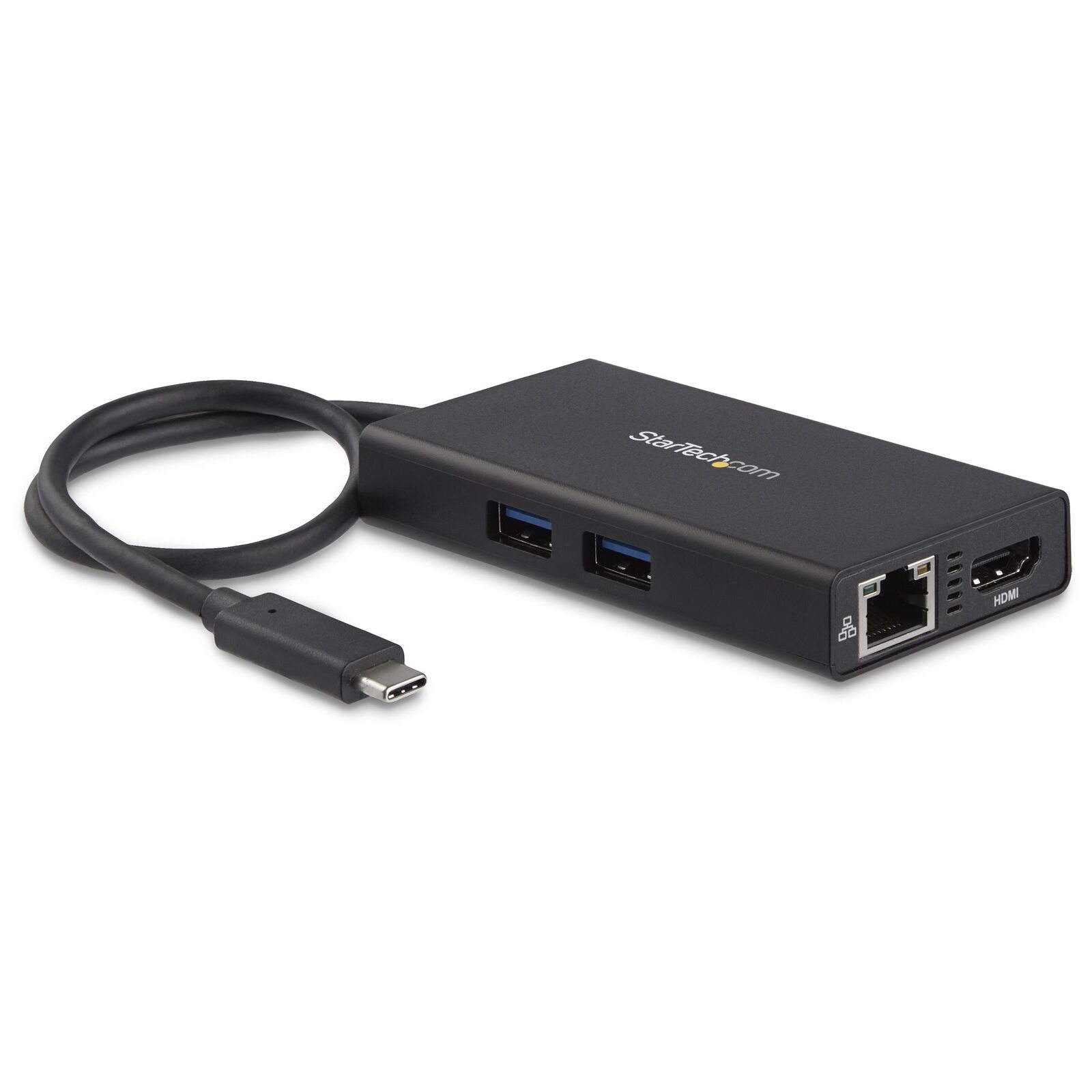

USB Type-C Travel Laptop Dock - Mini Docking Station USB PD
Connect to an external HDMI monitor for multitasking
Deliver presentations on an HDMI TV or projector in a boardroom or classroom
Connect to an HDMI TV in a hotel or hot desk space
- 4-IN-1 TRAVEL DOCK: USB-C multiport adapter has 4K 30Hz UHD HDMI video output for a single display, 2x USB-A 3.0 (5Gbps) ports, Gigabit Ethernet (GbE), and 60W Power Delivery 2.0 charging pass through
- EXTRA LONG CABLE: The portable USB-C mini dock’s 25cm (10 in.) attached cable provides extended reach to reduce port/connector strain on 2-in-1 devices or laptops on riser stands
- WIDE DEVICE COMPATIBILITY: USB C multiport adapter for USB-C & Thunderbolt 3 laptops, Ultrabooks, Chromebooks, tablets & phones for brands like HP, Dell, Lenovo, MacBooks, Surface and Samsung Galaxy
(DKT30CHPD)
This item comes with a 36 months warranty
Packaging Information
Package Length: 21.2 cm [8.3 in]
Package Width: 14.6 cm [5.7 in]
Shipping (Package) Weight: 198 g [7 oz]
Performance
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
Lower resolutions are also supported.
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes

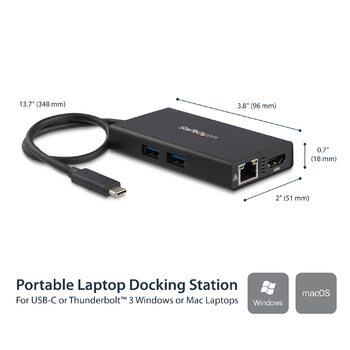

Physical Characteristics
Cable Length: 348 mm [13.7 in]
Color: Black
Material: Plastic
Product Height: 1.8 cm [0.7 in]
Product Length: 96 mm [3.8 in]
Product Width: 51 mm [2 in]
Weight of Product: 64 g [2.3 oz]
Power
Power Delivery: 60W
Power Source: USB-Powered
Prominence
Description CDW 75 - 1st Line: StarTech.com USB-C Multiport Adapter Travel Dock - 4K HDMI, GbE, 2x USB, PD
Software
OS Compatibility: Windows® 7, 8, 8.1, 10
macOS 10.9 to 10.15
Chrome OS™
Special Notes / Requirements
Note: A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K) : Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode. : The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop. : USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps. : Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
System and Cable Requirements: A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode) : Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)
What's in the Box
Included in Package: quick-start guide : USB-C multiport adapter
Packaging Information
Package Height: 41 mm [1.6 in]
Hardware
Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Fast-Charge Port(s): No
Displays Supported: 1
Chipset ID: VIA/VLI - VL813
VIA/VLI - VL100
Chrontel - CH7525A
ASIX - AX88179
Bus Type: USB-C
4K Support: Yes
Environmental
Storage Temperature: -10°C to 65°C (14°F to 149°F)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Humidity: 0~85% RH (Non-condensing)
Connector(s)
Connector Type(s): USB Type-C (24 pin) USB 3.0 (5Gbps) Male : USB Type-C (24 pin) USB 3.0 (5Gbps) Female : USB Type-A (9 pin) USB 3.0 (5 Gbps) Female : RJ-45 Female : HDMI (19 pin) Female
Model # | DKT30CHPD |
Barcode # | 065030864978 |
Brand | STAR TECH |
Shipping Weight | 0.2000kg |
Shipping Width | 0.210m |
Shipping Height | 0.040m |
Shipping Length | 0.150m |
Shipping Cubic | 0.001269000m3 |
Type | Docking Station |
