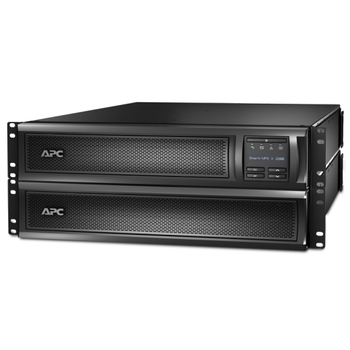

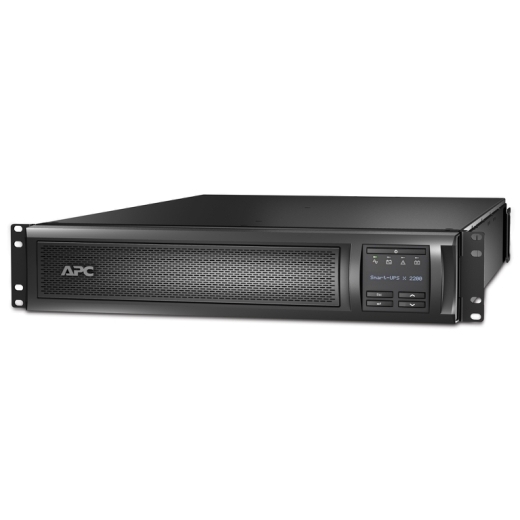

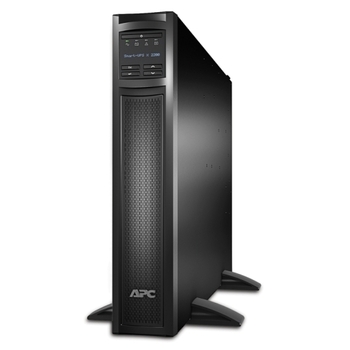

APC Smart-UPS 2200VA/1980W Rack/Tower UPS Battery Backup
Reviews
Be The First To Review This Product!
Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.
APC Smart-UPS X 2200VA Rack/Tower LCD 200-240V.
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Features:
Run time for load: 1980W
Min-max: 198-1980 W
Max. Capacity Used: 100%
Output power capacity: 1.98kWatts / 2.2kVA
Rack Height: 2U

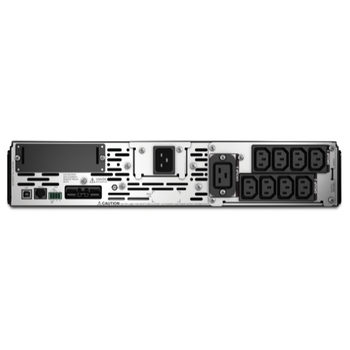

Output Connections
- (1) IEC 320 C19 (Battery Backup)
- (8) IEC 320 C13 (Battery Backup)
- (2) IEC Jumpers (Battery Backup)
Nominal Output Voltage: 208V, 230V
Nominal Input Voltage: 208V, 230V
Input Connections: BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
Cord Length: 1.8 meters
- Cold-start capable: Provides temporary battery power when the utility power is out.
- Energy meter: Provides actual kilowatt hours of usage for energy conscious users.
- Green mode: Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency: Reduces utility costs, generates less heat.
- Intelligent Card Slot: Customize UPS capabilities with management cards.
- Multiple switched outlet groups: Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Predictive replace battery date: Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.
Smart-UPS Features & Benefits
Serviceability
- Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Resettable circuit breakers: Enables a quick recovery from overload events.
- User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
- Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Predictive failure notification: Provides early-warning fault analysis ensuring proactive component replacement.
Adaptability
- Adjustable voltage-transfer points: Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Adjustable voltage sensitivity: Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Availability
- Disconnected battery notification: Warns when a battery is not available to provide backup power.
- Intelligent battery management: Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Boost and Trim Automatic Voltage Regulation (AVR): Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
- Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power.
- Power conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances.
- Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature.
Manageability
- Audible alarms: Provides notification of changing utility power and UPS conditions.
- Serial connectivity: Provides management of the UPS via a serial port.
- USB connectivity: Provides management of the UPS via a USB port (not available on all models).
- LED status indicators: Quickly understand unit and power status with visual indicators.
- Network manageable: Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.
Includes:
- 1x CD with Software
- 1x Documentation CD
- 1x Rack Mounting Brackets
- 1x Smart UPS Signalling RS-232 Cable
- 1x USB Cable
- 1x User Manual
(UPAPC-SMX2200RMHV2U)
Output
-
Max Configurable Power (Watts): 1.98kWatts / 2.2kVA
-
Output Voltage Distortion: Less than 5 %
-
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
-
Other Output Voltages: 220 V, 240 V
-
Topology: Line interactive
-
Waveform type: Sine wave
-
Transfer Time: 2-4 ms
-
Transfer Time: 6 ms typical : 10 ms maximum
Input
-
Input frequency: 50/60 Hz +/- 3 Hz Auto-sensing
-
Input voltage range for main operations: 140 - 280V
-
Number of Power Cords: 1
-
Other Input Voltages: 220 V, 240 V
-
Transfer Time: 2-4 ms
Batteries & Runtime
-
Battery type: Lead-acid battery
-
Typical recharge time: 3hour(s)
-
Replacement Battery: APCRBC117
-
Expected Battery Life (years): 3 - 5
-
RBC Quantity: 1
-
Battery Charge Power (Watts): 233 Watts
-
Extendable Run Time: 1
Communications & Management
-
Interface Port(s): RJ-45 Serial, SmartSlot, USB
-
Control panel: LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators, Multifunction LCD status and control console
-
Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays
-
Emergency Power Off (EPO): Yes
-
Available SmartSlot™ Interface Quantity: 1
Surge Protection and Filtering
-
Surge energy rating: 645Joules
-
Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
-
Maximum Height: 85MM, 8.5CM
-
Maximum Width: 432MM, 43.2CM
-
Maximum Depth: 667MM, 66.7CM
-
Net Weight: 37.32KG
-
Shipping weight: 45.36KG
-
Shipping Height: 243MM, 24.3CM
-
Shipping Width: 596MM, 59.6CM
-
Shipping Depth: 869MM, 86.9CM
-
Colour: Black
-
# of Layers per Pallet: 4.0
-
# of Units per Layer per Pallet: 2.0
-
Pallet Weight: 856.91lbs.
-
Units per Pallet: 8.0
Environmental
-
Operating Temperature: 0 - 40 °C
-
Operating Relative Humidity: 0 - 95 %
-
Operating Elevation: 0 - 3048meters
-
Storage Temperature: -15 - 45 °C
-
Storage Relative Humidity: 0 - 95 %
-
Storage Elevation: 0 - 15240meters
-
Audible noise at 1 meter from surface of unit: 55.0dBA
-
Online thermal dissipation: 150.0BTU/hr
Model # | UPAPC-SMX2200RMHV2U |
Barcode # | 731304272687 |
Brand | APC |
Shipping Weight | 46.7600kg |
Shipping Width | 0.870m |
Shipping Height | 0.240m |
Shipping Length | 0.610m |
Shipping Cubic | 0.123692000m3 |
Type | Smart-UPS |
