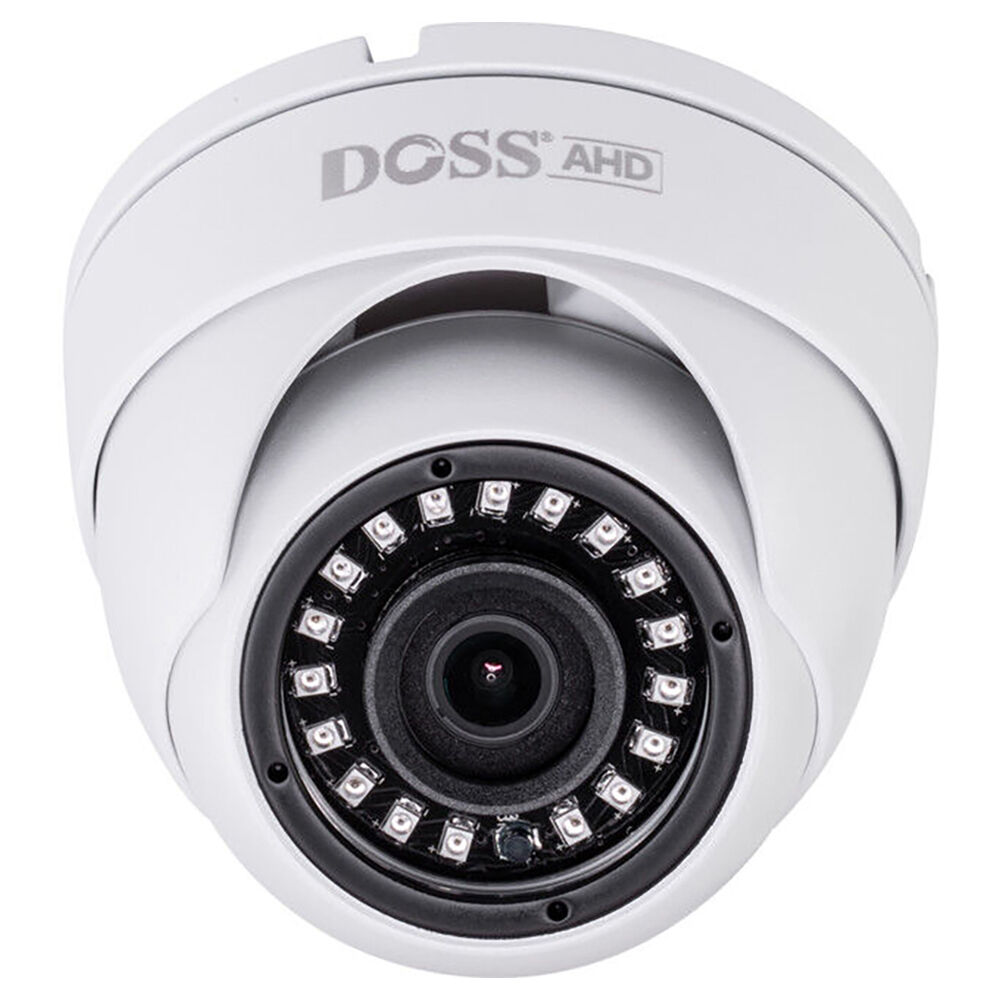

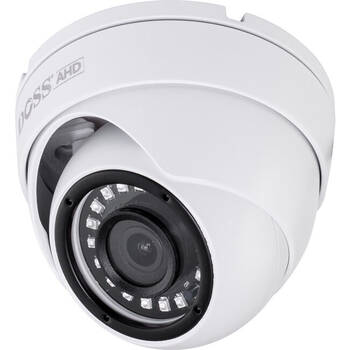

Doss 5MP 4-in-1 3.6mm Lens Dome Camera Home Surveillance CCTV IP66 White

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Doss 5MP 4-in-1 3.6mm Lens Dome Camera Home Surveillance CCTV IP66 White

Features

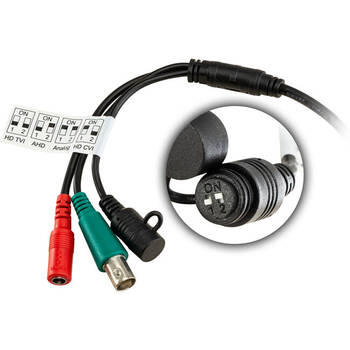

This 4 in 1 AHD, TVI-HD, CVI-HD, CVBS camera is compatible with the Hybrid HD or analog DVR. With the dip switch built-in to the OSD cable, easy to switch to 4 different output modes.

  • Up to 5MP high-resolution video quality
  • Adopt low illumination1/2.7" 5MP CMOS image sensor
  • 3.6mm fix lens
  • IR Distance: 15-20m/18x SMT IR LEDs
  • HD AHD/TVI 5MP@20/12.5fps, 4MP@30/25/15fps, 1080P25/30fps
  • CVBS 960H PAL/NTSC
  • Small and compact size
  • D-WDR, 3D NR supported
  • Auto Day&Night, IR Cut (Infrared-cut) filterS for producing accurate color images
  • IP66 Rating
  • Support UTC Function via the DVR, OSD menu setting, which includes AE, AWB, Day-Night, Image-Enhancement, Video Output Language, and Reset

Specifications

Sensor

1/2.7" 5 Megapixel CMOS Sensor

Signal System

NTSC/PAL

Sync. System

Internal Sync.

Effective Pixels

5MP

Horizontal Resolution

2560x1944@20/12.5fps

Lens

3.6mm fix

Minimum Illumination

0 Lux (Infrared led ON)

Day/Night

Auto, IR Cut filter

IR Distance

15-20m/18x SMT IR leds

OSD Menu

Support(UTC Coaxial control)

Video Output

HD-AHD/TVI/CVI and CVBS output

S/N Ratio

More than 50dB(AGC OFF)

White Balance

Auto White Balance

Electronic Shutter

1/25-1/50000

Image Adjustment

Contrast, Sharpness, Saturate

Digital WDR

ON/OFF

DNR

3DNR
Weather Proof IP66

Working Temperature

-10°C~50°C

Storage Temperature

-20°C~60°C

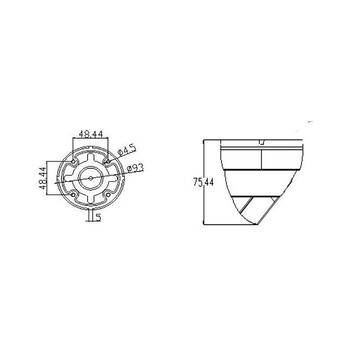

Size 93mm (W) x 75mm (H)

Power Requirement

DC12V/2A

Includes:
1 x Camera

(43150305)

12 Months

Model # 43150305
Barcode # 9328202034359
Brand DOSS
Shipping Weight 0.3400kg
Shipping Width 0.300m
Shipping Height 0.050m
Shipping Length 0.250m
Shipping Cubic 0.003750000m3
