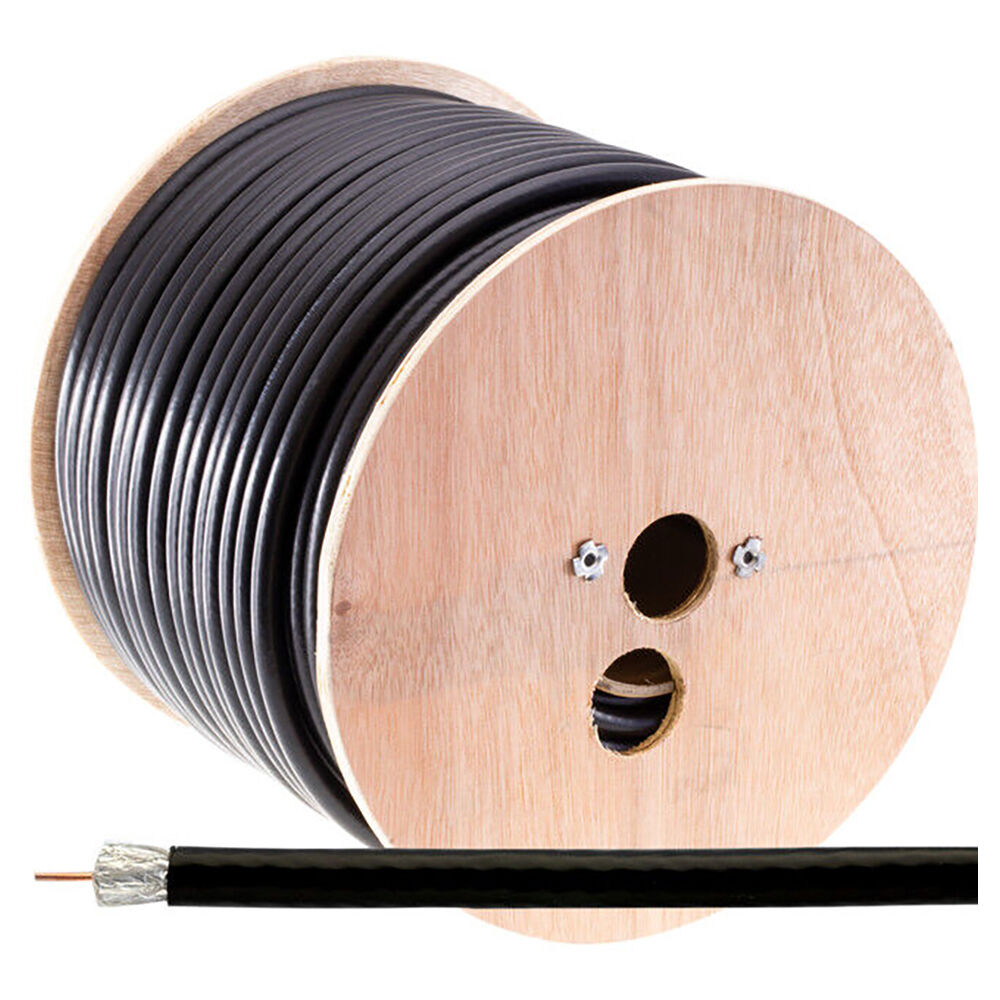

Doss RG11 Quad Shield Coaxial Cable Cord Lead 75OHM Roll Reel Black 100M

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Doss RG11 Quad Shield Coaxial Cable Cord Lead 75OHM Roll Reel Black 100M

  • Cable construction (inner- to outer-most):
    • Core:
      • 14 AWG / Ø1.63mm
      • CCS (Copper Coated Steel) 21%
      • DC Resistance: 11Ω / 1000ft. at 20°C
    • Dielectric Foam PE: Ø7.11mm
    • Shielding:
      • Bonded Aluminium Foil
      • Braid Aluminium Shield:
        • 96x Ø0.16mm,
        • 60% Coverage
      • Non-bonded Aluminium Foil
      • Braid Aluminium Shield:
        • 64x Ø0.16mm,
        • 40% Coverage
      • Shield DC Resitance: 6.9Ω / 1000ft. at 20°C
    • PVC Jacket:
      • Ø10.3mm
      • Colour: Black
  • Operating temperature range: -20 ~ 60°C
  • Return loss: 15dB Max (100% swept tested)
  • Impedance: 75.0Ω ± 3Ω
  • Attenuation:
    • 0.20dB/100ft @ 1MHz
    • 0.50dB/100ft @ 10MHz
    • 0.95dB/100ft @ 50MHz
    • 1.25dB/100ft @ 100MHz
    • 1.75dB/100ft @ 200MHz
    • 2.45dB/100ft @ 400MHz
    • 3.35dB/100ft @ 700MHz
    • 3.8dB/100ft @ 900MHz
    • 4.00dB/100ft @ 1000MHz
    • 4.40dB/100ft @ 1200MHz
    • 4.80dB/100ft @ 1450MHz
    • 5.30dB/100ft @ 1800MHz
    • 5.80dB/100ft @ 2200MHz

Includes:
1 x Cable Roll Reel

(RP-05052471)

12 Months

Model # RP-05052471
Barcode # 9328202021045
Brand DOSS
Shipping Weight 10.0000kg
Shipping Width 0.180m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.002700000m3
Type Coaxial Raw
