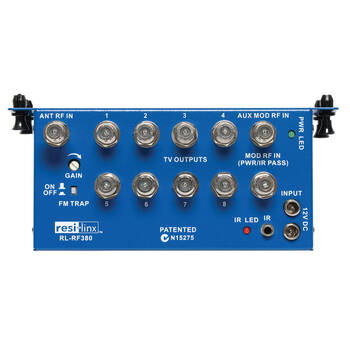

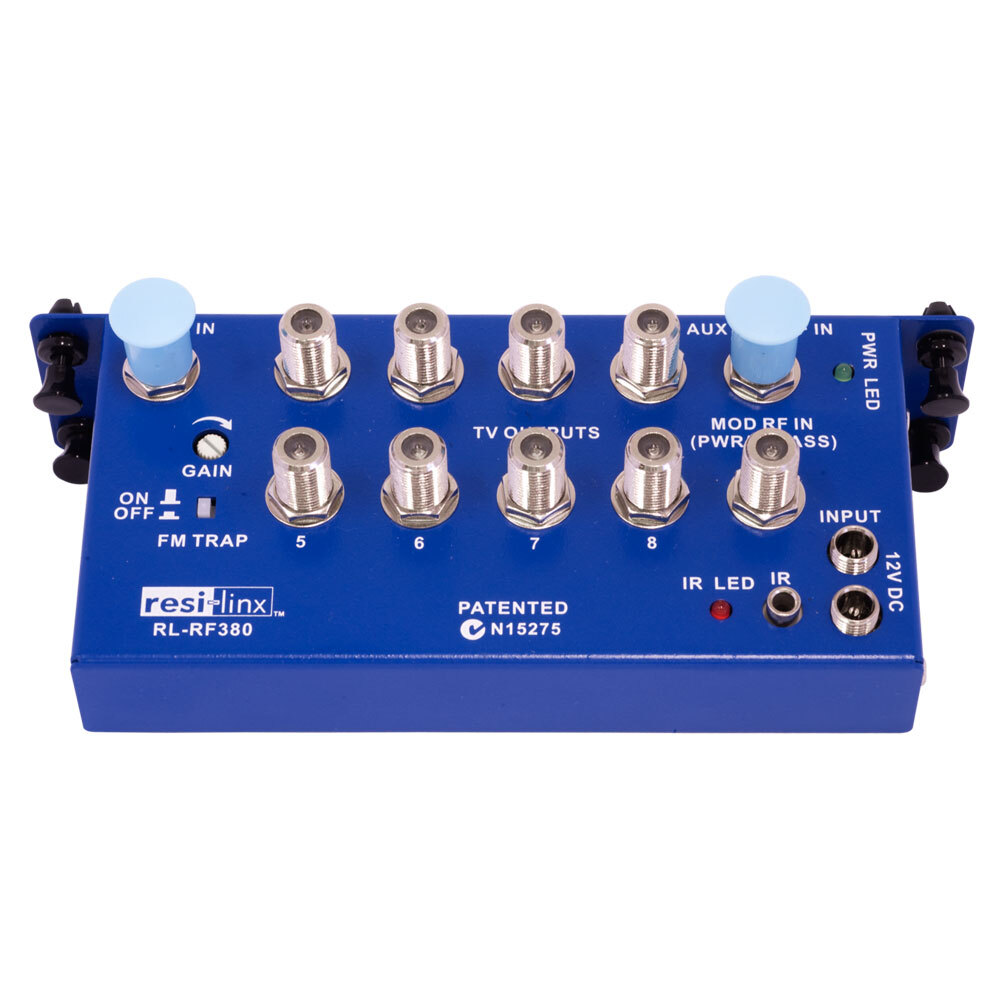

Resi-Linx RLRF380 3 Input / 8 Output Rf Distribution Module

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

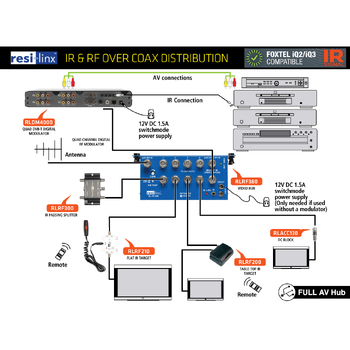

Resi-Linx RLRF380 3 Input / 8 Output RF Distribution Module's patented design is for whole-house video distribution with IR control.

The splitters have reverse-path IR control, that when combined with other products in the IR range, will allow you to control the AV inputs from other locations.

The RL-RF380 must be remotely powered by an IR Modulator when using the IR Control.

  • Inputs: 3

  • Outputs: 8

  • Output Run Distance: 60m

  • IR Control: Yes

  • Patented

  • Must be remotely powered by an IR Modulator when using the IR Control

Features:

  • Active, low loss combiner and splitter with 3 inputs, 8 outputs

  • Includes gain control for Free To Air input to eliminate problems due to high/low signal strength.

  • When combined with gain control on the modulator, allows complete balancing of signals

  • FM trap On/Off switch to filter 88-108MHz signals from transferring through to output ports to eliminate FM interference to TV reception

(RLRF380)

This item comes with a 12-month warranty.

The RL-RF380 must be remotely powered by an IR Modulator when using the IR Control.

  • Colour: Blue

  • Output Frequency Pass: 30KHz to 850MHz

  • Number of output: 8

  • Number of input (Modulator / ANT): 3

  • Output run distance: 60 metres

  • Isolation (Modulator inputs to ANT): -80dB

  • Weight: 405g

  • Size: 69mm x 22mm x 135mm

  • Connections - Power Out 1.8mm length with 2.1mm minijack socket

Gain / Loss

  • ANT: +2dB

  • Modulator: +3dB

Power supply

  • Input: 110 - 240V AC

  • Output: 12V DC - 1.5A Switch Mode

Model # RLRF380
Barcode # 9328202020307
Brand RESI-LINX
Shipping Weight 0.4050kg
Shipping Width 0.069m
Shipping Height 0.022m
Shipping Length 0.135m
Shipping Cubic 0.000205000m3
Type Output Splitter Amplifier
