GIGABIT ETHERNET MEDIA CONVERT SC MULTI-MODE UPTO 550M

GIGABIT ETHERNET MEDIA CONVERT SC MULTI-MODE UPTO 550M

Gigabit Ethernet Media Converter (SC, Multi-Mode) Extends Up To 550 Meters

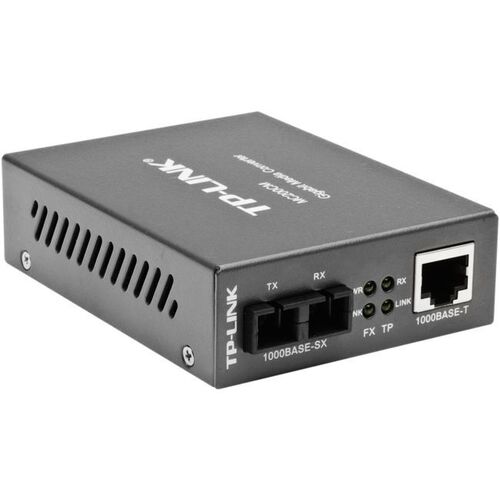

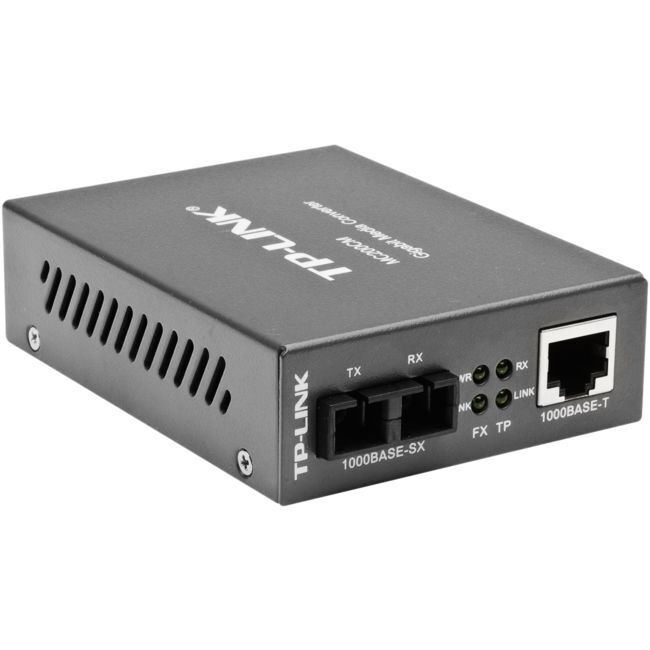

The MC200CM is a media converter designed to convert 1000BASE-SX fibre to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fibre cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire-speed forwarding rate. It works at 850nm on both transmitting and receiving data.

FEATURES
Works at 1000Mbps in Full-Duplex mode for both TX port and FX port
Supports auto MDI/MDIX for TX port
Provides switch configuration of Force /Auto transfer mode for FX port
Extends fibre distance up to 0.5km
Easy-to-view LED indicators to provide status to monitor network activity easily
External power supply
SPECIFICATIONS
Standards and Protocols: IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function:
Full Duplex Flow Control (IEEE 802.3x)
Extends fibre distance up to 0.5km using 50/125umfiber
Extends fibre distance up to 0.22km using 62.5/125um fibre
Ports:
1 x 1000M SC port
1 x 1000M RJ45 port (Auto MDI/MDIX)
Wave Length: 850nm
Network Media 1000BASE-FX: Multi-mode Fiber
Network Media 1000BASE-T:
UTP Category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 ohm STP (maximum 100m)
LED Indicators: PWR, LINK, RX
Dimensions (WxDxH): 3.7 x 2.9 x 1.1 in. (94.5 x 73.0 x 27.0 mm)
Power Supply: External Power Adapter
Safety & Emission: FCC, CE, RoHS
Environment:
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
