Gigabit Fiber SM/MM SFP Transceiver - HP J4859C Compatible

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

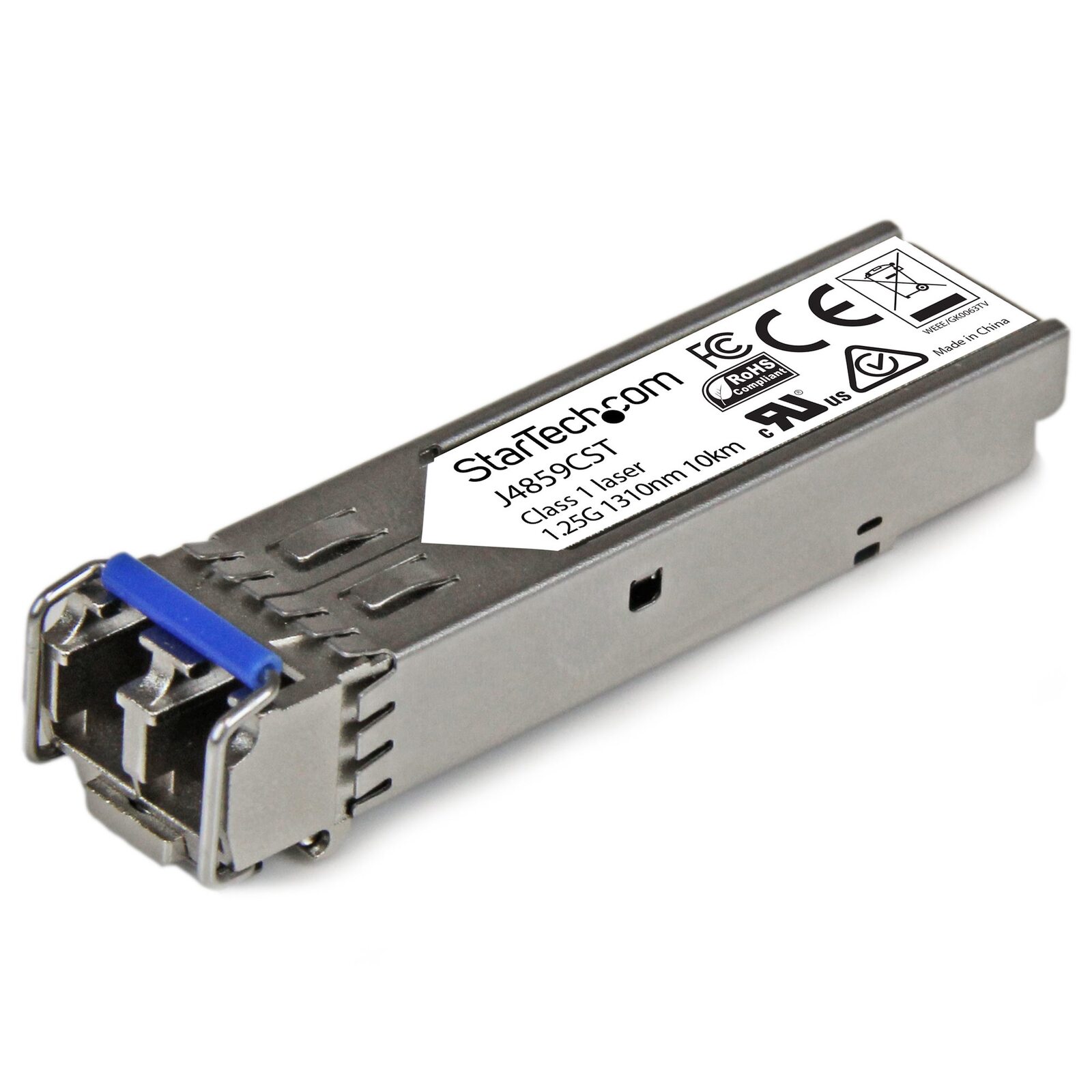

Gigabit Fiber SM/MM SFP Transceiver - HP J4859C Compatible

The J4859CST is an HP J4859C compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

  • Wavelength: 1310 nm
  • Maximum Data Transfer Rate: 1.25 Gbps
  • Type: Single Mode / Multi Mode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM
  • MTBF: 3,092,408 hours
  • Power Consumption: Less than 1 Watt
  • Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

(J4859CST)

This item comes with a 12 months warranty

Technical Specifications:

Performance
DDM: Yes
Fiber Operating Mode: Full-Duplex
Max Transfer Distance: 10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM
Maximum Data Transfer Rate: 1.25 Gbps
MTBF: 3,092,408 hours
Power Consumption (In Watts): < 1 W
Type: Single Mode / Multi Mode
Wavelength: 1310nm

Physical Characteristics
Product Height: 1.3 cm [0.5 in]
Product Length: 57 mm [2.2 in]
Product Width: 14 mm [0.6 in]
Weight of Product: 16 g [0.6 oz]

Prominence
Description CDW 75 - 1st Line: StarTech.com HPE J4859C Compatible SFP - 1GbE SMF/MMF Transceiver 10km DDM

What's in the Box
Included in Package: SFP transceiver

Performance
Compatible Networks: 1000 Mbps (1 Gbps)

Packaging Information
Shipping (Package) Weight: 45 g [1.6 oz]
Package Width: 11.8 cm [4.6 in]
Package Length: 93 mm [3.7 in]
Package Height: 32 mm [1.3 in]

Hardware
Industry Standards: IEEE 802.3z 1000BASE-LX
Compatible Brand: HPE

Environmental
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Humidity: 5~95% RH

Connector(s)
Local Unit Connectors: Fiber Optic LC Duplex Female

System and Cable Requirements: MSA or HP compliant SFP port : For use in Gigabit fiber networking equipment and media converters
Material: Aluminum
Color: Silver

Model # J4859CST
Barcode # 065030865296
Brand STAR TECH
Shipping Weight 0.0500kg
Shipping Width 0.090m
Shipping Height 0.030m
Shipping Length 0.120m
Shipping Cubic 0.000351000m3
Type Single Mode/Multi Mode
