USB to Dual DisplayPort Docking Station - 4K - GbE - USB 3.0

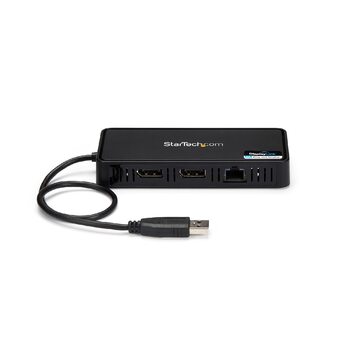

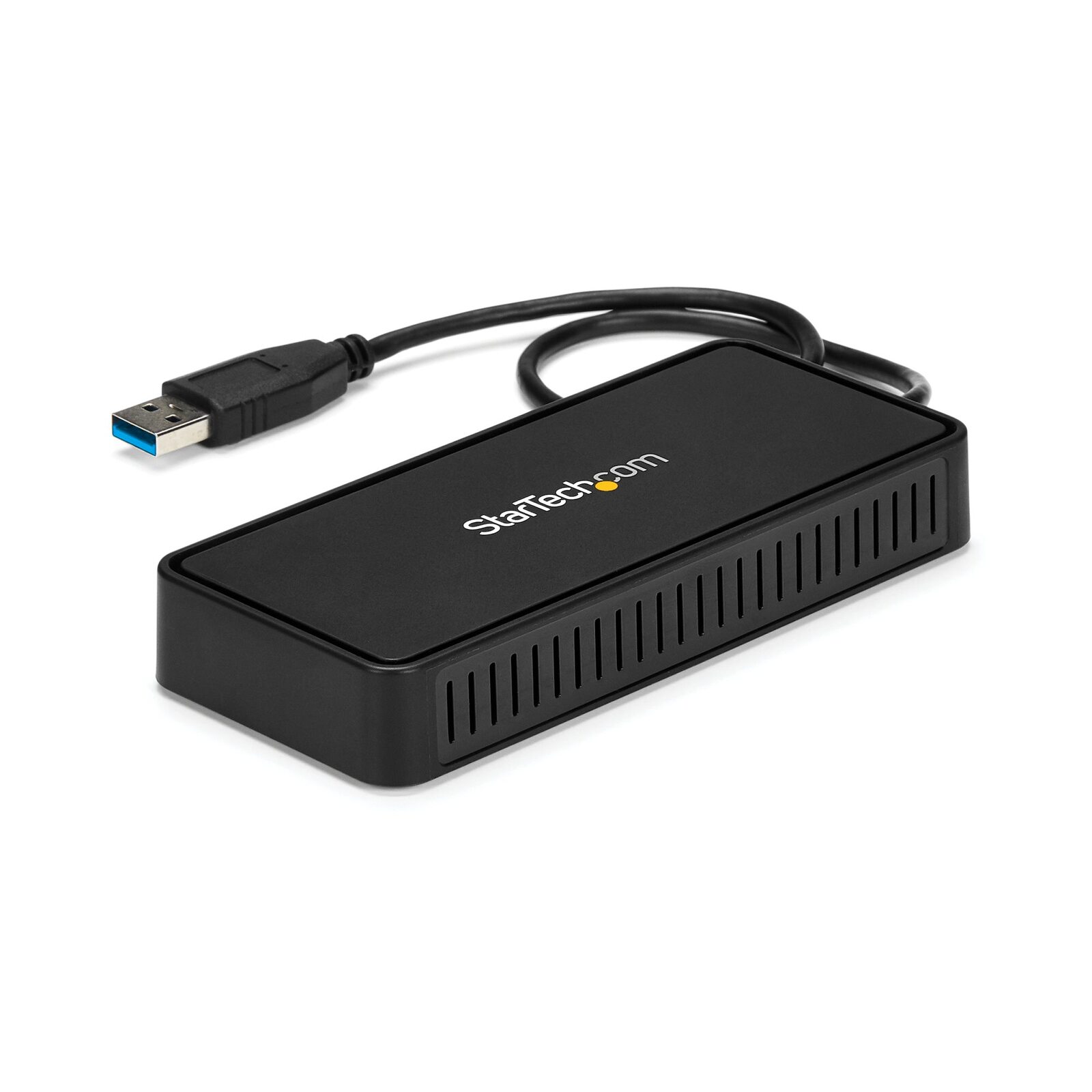

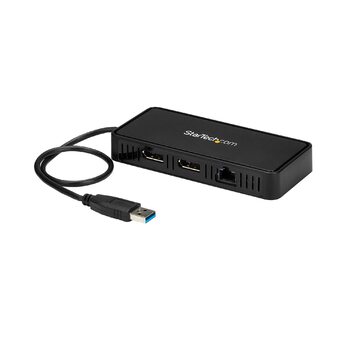

This USB to Dual DisplayPort Mini Dock provides your USB 3.0 laptop with connectivity for dual 4K 60 Hz monitors and Gigabit LAN - enabling you to quickly harness dual-display productivity and network connectivity.

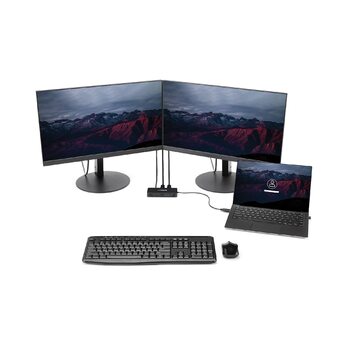

Increase Your Productivity with Two 4K Monitors

The dual DisplayPort adapter adds two DP video outputs to your USB laptop, with resolution support up to 4K. Working on two monitors increases your productivity by giving you more screen space. You can simultaneously access multiple applications and reference material on one display while composing on the other.

Access Hardwired Networks with a GbE Port

Ethernet ports on modern laptops are uncommon, and wireless networks are less secure and less reliable than a hardwired connection. With the GbE port on this portable docking station that features an Ethernet adapter you can access wired LANs even if your USB 3.0 laptop doesn’t have an Ethernet port.

Maximize Portability with a Miniature Docking Station

The dock features a compact design that's perfect for business professionals who need portable office desk accessories for traveling between multiple office locations, or shared workspaces.

(USBA2DPGB)

This item comes with a 36 months warranty

The dual DisplayPort adapter adds two DP video outputs to your USB laptop, with resolution support up to 4K

Packaging Information
Shipping (Package) Weight: 215 g [7.6 oz]

Performance
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: Dual displays - DisplayPort - 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: No

Physical Characteristics
Cable Length: 300 mm [11.8 in]
Color: Black
Product Height: 2 cm [0.8 in]
Product Length: 13 cm [5.1 in]
Product Width: 58 mm [2.3 in]
Weight of Product: 126 g [4.4 oz]

Power
Power Source: USB-Powered

Prominence
Description CDW 75 - 1st Line: StarTech.com USB 3.0 Mini Dock - Dual Monitor USB-A Dock - 4K 60Hz DP & GbE

Software
OS Compatibility: Windows®️ 2000, XP, Vista, 7, 8, 8.1, 10
macOS 10.6 - 10.12, 10.14 - 10.15, 11.0
Ubuntu 14.04, 16.04, 19.04
Linux Kernel 4.2 - 5.2
Chrome OS™️ v55+

Special Notes / Requirements
Note: 4K resolution is supported on both video ports. A 4K-capable DisplayPort display is required to achieve 4Kx2K resolution. : USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
System and Cable Requirements: A host laptop with an available USB-A port.

What's in the Box
Included in Package: mini dock : quick-start guide

Packaging Information
Package Width: 20 cm [7.9 in]
Package Length: 11.4 cm [4.5 in]
Package Height: 38 mm [1.5 in]

Hardware
Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0/1.1
Fast-Charge Port(s): No
Displays Supported: 2
Chipset ID: DisplayLink - DL-6950
Bus Type: USB 3.0
4K Support: Yes

Environmental
Storage Temperature: -10°C to 60°C (14°F to 140°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10-90% RH

Connector(s)
Connector Type(s): USB Type-A (9 pin) USB 3.0 (5 Gbps) Male : RJ-45 Female : DisplayPort (20 pin) Female

Model # USBA2DPGB
Barcode # 065030874328
Brand STAR TECH
Shipping Weight 0.2200kg
Shipping Width 0.110m
Shipping Height 0.040m
Shipping Length 0.200m
Shipping Cubic 0.000866000m3
Type Docking Station
