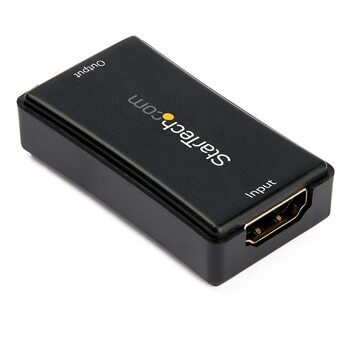

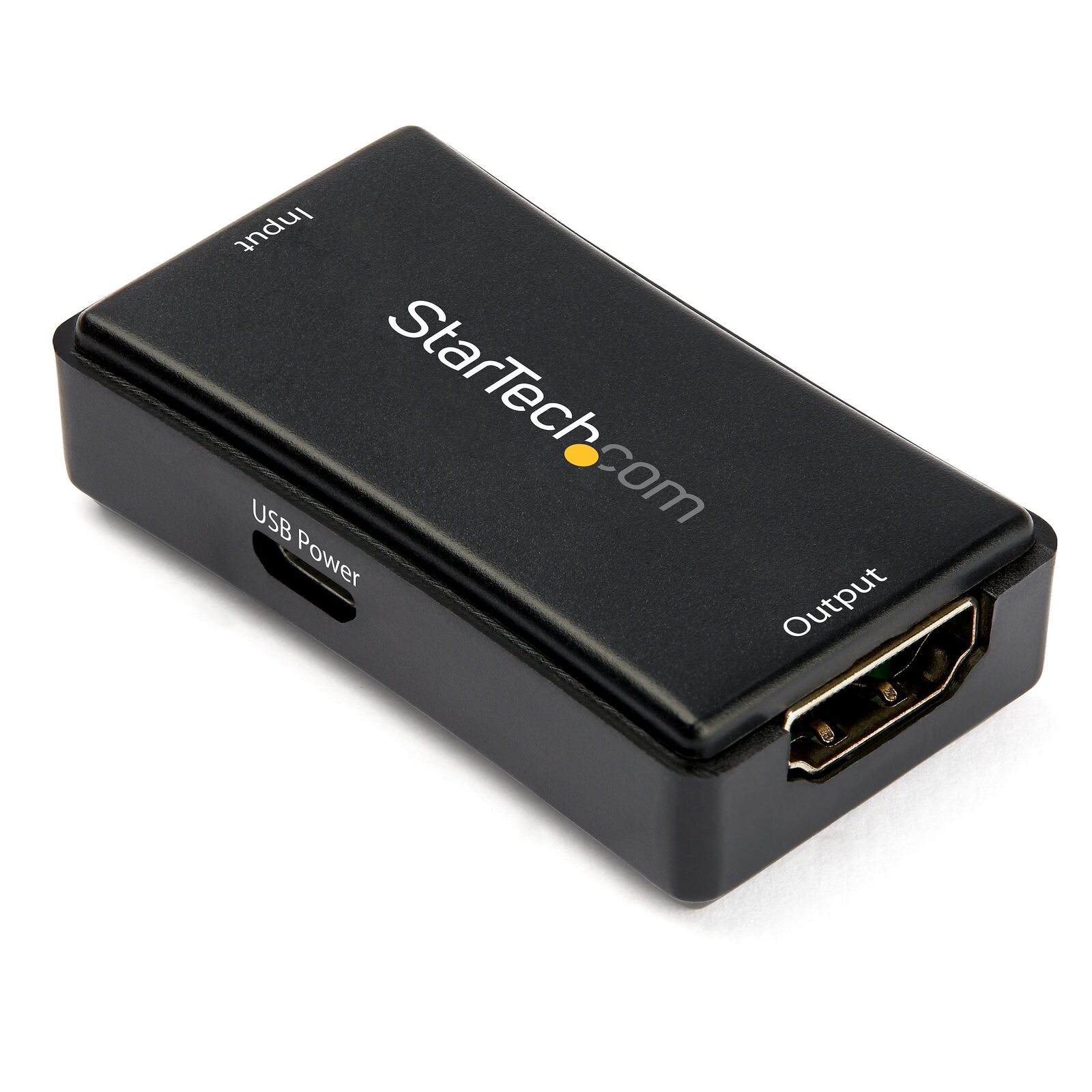

45ft HDMI Signal Booster - 4K 60Hz - USB Powered

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Use this 4K HDMI® signal booster to amplify your HDMI signal and extend it 45 ft. (14 m) using HDMI cabling.

Maintains Ultra HD 4K Video

When you’re extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few short feet. With this signal extender you can ensure that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available even at distances up to 45 ft. (14 m). You can achieve even longer distances at lower refresh rates - up to 4K at 30Hz, at up to 100 ft. (30 m).

The signal booster works by connecting two HDMI certified cables, each up to 22.5 ft. (7 m) in length, to either side of the signal booster.

Hassle-Free Installation

With its compact design, the HDMI signal amplifier is easy to hide, for a discreet installation. By extending your video signal using HDMI certified cables, the inline booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.

Supports Several Distances

Support for a variety of extension distances makes the 4K repeater perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.


Audio Specifications: DTS
Dolby Digital
Bandwidth: 18Gbps
Max Distance: 14 m / 45 ft
Video Revision: HDMI 2.0
Wide Screen Supported: Yes

Physical Characteristics
Color: Black
Material: Plastic
Product Height: 1.4 cm [0.5 in]
Product Length: 2.9 cm [1.1 in]
Product Width: 5.2 cm [2 in]
Weight of Product: 15 g [0.5 oz]

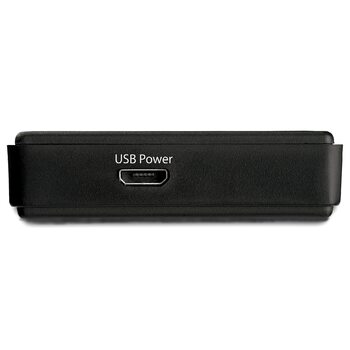

Plug Type: USB Micro-B
Power Consumption (In Watts): <2.5
Power Source: Not Included (not required for standard applications)

Description CDW 75 - 1st Line: StarTech.com 45'HDMI Signal Booster - 4K 60Hz - USB Power - HDMI Repeater

What's in the Box
Included in Package: 1 ft [30 cm] Micro USB Power Cable : HDMI Signal Booster : Quick-Start Guide

Packaging Information
Shipping (Package) Weight: 113 g [4 oz]
Package Width: 14 cm [5.5 in]
Package Length: 17 cm [6.7 in]
Package Height: 3 cm [1.2 in]

Rack-Mountable: No
Daisy-Chain: No
Cabling: HDMI
AV Output: HDMI
AV Input: HDMI
Audio: Yes

Storage Temperature: -10°C to 80°C (14°F to 176°F)
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Humidity: 5% to 90% RH

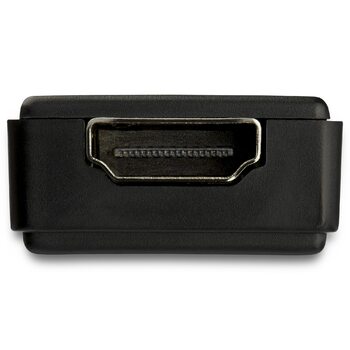

Connector B: HDMI (19 pin) Output Female
Connector A: HDMI (19 pin) Input Female

Model # HDBOOST4K2
Barcode # 065030883795
Shipping Weight 0.1100kg
Shipping Width 0.170m
Shipping Height 0.030m
Shipping Length 0.140m
Shipping Cubic 0.000714000m3
Type HDMI Extender
