HDMI Over Cat5 Extender w/ Power Over Cable - 165ft 1080p

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

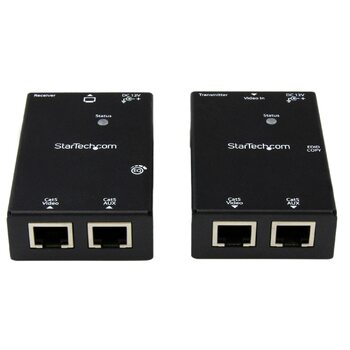

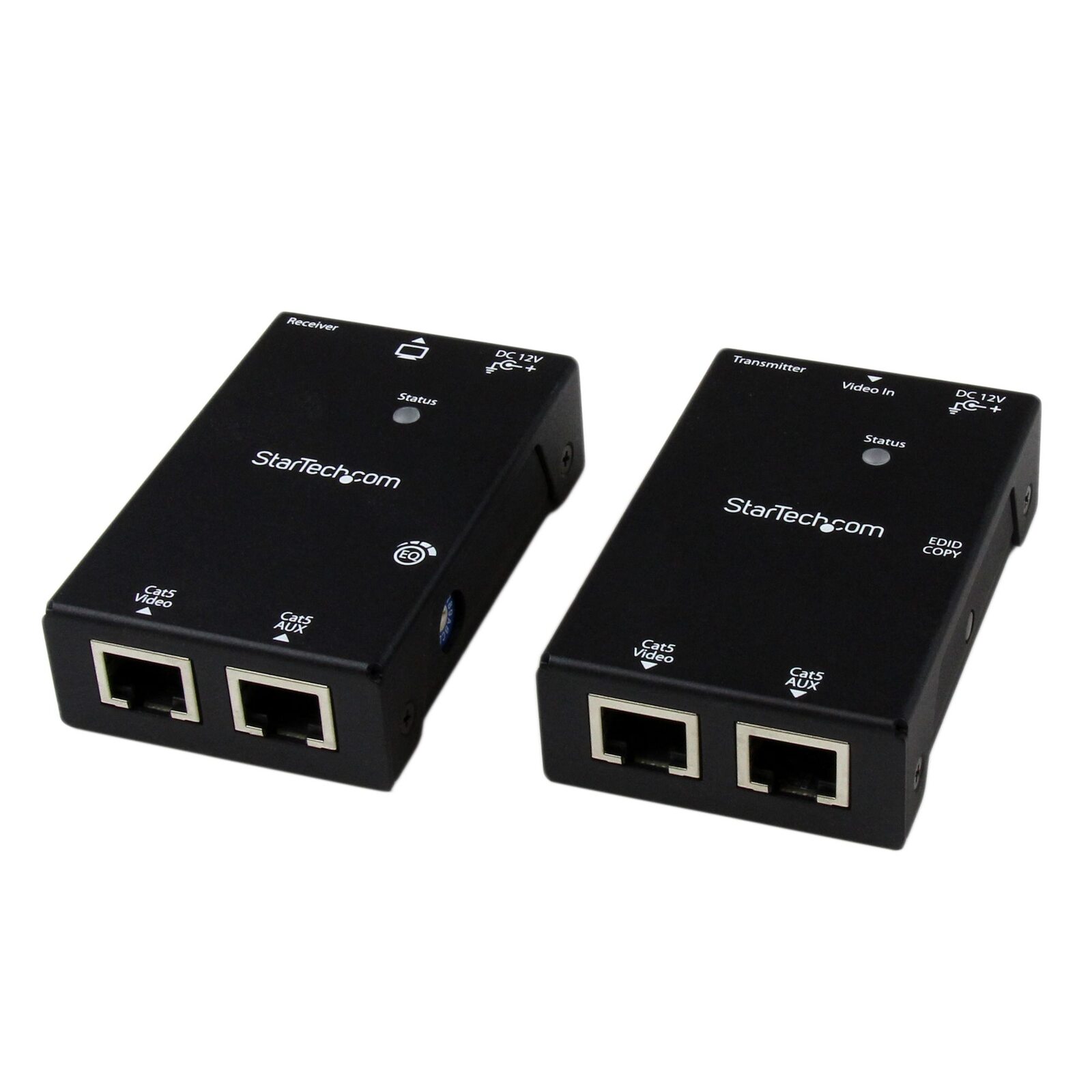

The ST121SHD50 HDMI® over Cat5e/Cat6 Video Extender kit lets you extend HDMI video and audio by up to 165 feet (50 Meters) over dual Cat5e cables or dual Cat6 cables. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.

With support for High-Definition resolutions of up to 1920x1080 / 1080p and the accompanying digital audio, this cost-effective HD extender can easily be installed using new or existing Ethernet infrastructure wiring. For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.

For added flexibility and convenience, HDMI cables up to 32ft (10m) can be connected to both the local and remote units, which lets you extend your HDMI signal to even further distances.

The HDMI extender kit offers a point-to-point digital signage solution right out of the box, including both local transmitter and remote receiver units, along with optional hardware that lets you mount the units as needed. Plus, with Power Over Cable, you can easily extend an HDMI signal in areas where access to power outlets is limited.

(ST121SHD50)

Standard Consumer Warranty
For a convenient plug-and-play installation, the HDMI extender features built-in EDID monitor emulation, which ensures native resolution and maximum compatibility with your display or projector.

Packaging Information
Package Width: 15.7 cm [6.2 in]
Shipping (Package) Weight: 935 g [33 oz]

Performance
General Specifications: Maximum Distances - (1080i only)
CAT5E (stranded) - 40m (130 ft)
CAT5E (solid) - 50m (165 ft)
CAT6 (stranded or solid) - 50m (165 ft)

Max Distance: 50 m / 165 ft
Maximum Digital Resolutions: 1080p / 1920x1080
Supported Resolutions: 1080i
- Cat6 (stranded or solid) - up to 50m
- Cat5e (solid) - up to 50m
- Cat5e (stranded) - up to 40m

1080p
- Cat6 (solid or stranded) - up to 40m
- Cat5 (solid) - up to 20m
- Cat5 (stranded) - up to 16m

See product manual for further details
Wide Screen Supported: Yes

Physical Characteristics
Color: Black
Material: Aluminum
Product Height: 2.1 cm [0.8 in]
Product Length: 80 mm [3.1 in]
Product Width: 51 mm [2 in]
Weight of Product: 314 g [11.1 oz]

Power
Center Tip Polarity: Positive
Input Current: 0.5 A
Input Voltage: 100 - 240 AC
Output Current: 1.5 A
Output Voltage: 12V DC
Plug Type: M
Power Consumption (In Watts): 18
Power Source: AC Adapter Included

Special Notes / Requirements
Note: The extender does not work through Ethernet equipment, such as switches or routers. : This extender requires two CAT5 cables for the entire distance of your cable run.

What's in the Box
Included in Package: foot pad set : HDMI over CAT5e/6 UTP receiver : HDMI over CAT5e/6 UTP transmitter : instruction manual : mounting brackets : universal power adapter (NA / EU / UK / AU)

Packaging Information
Package Length: 23.7 cm [9.3 in]
Package Height: 65 mm [2.6 in]

Indicators
LED Indicators: Power

Hardware
Rack-Mountable: Yes
Ports: 1
Daisy-Chain: No
Cabling: Cat 5 UTP or better
Audio: Yes

Environmental
Storage Temperature: -10°C to 60°C (14°F to 115°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 0% - 80 %

Connector(s)

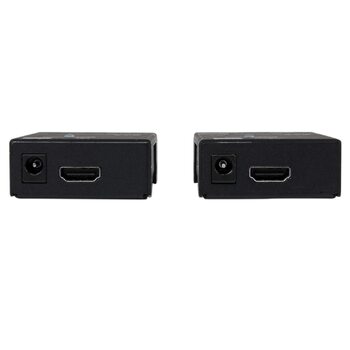

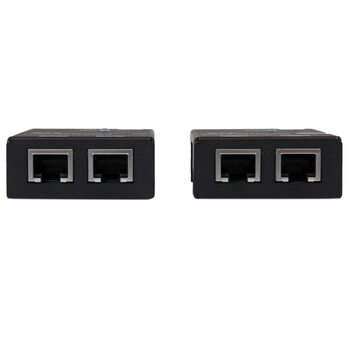

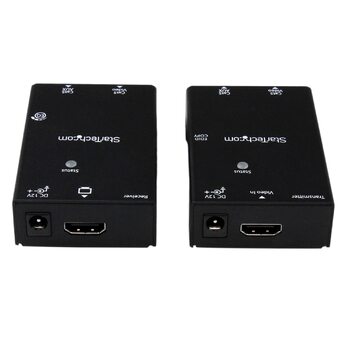

Remote Unit Connectors: RJ-45 Female : HDMI (19 pin) Female
Local Unit Connectors: RJ-45 Female : HDMI (19 pin) Female

Model # ST121SHD50
Barcode # 065030851404
Brand STAR TECH
Shipping Weight 0.9400kg
Shipping Width 0.240m
Shipping Height 0.070m
Shipping Length 0.160m
Shipping Cubic 0.002688000m3
Type HDMI Extender
