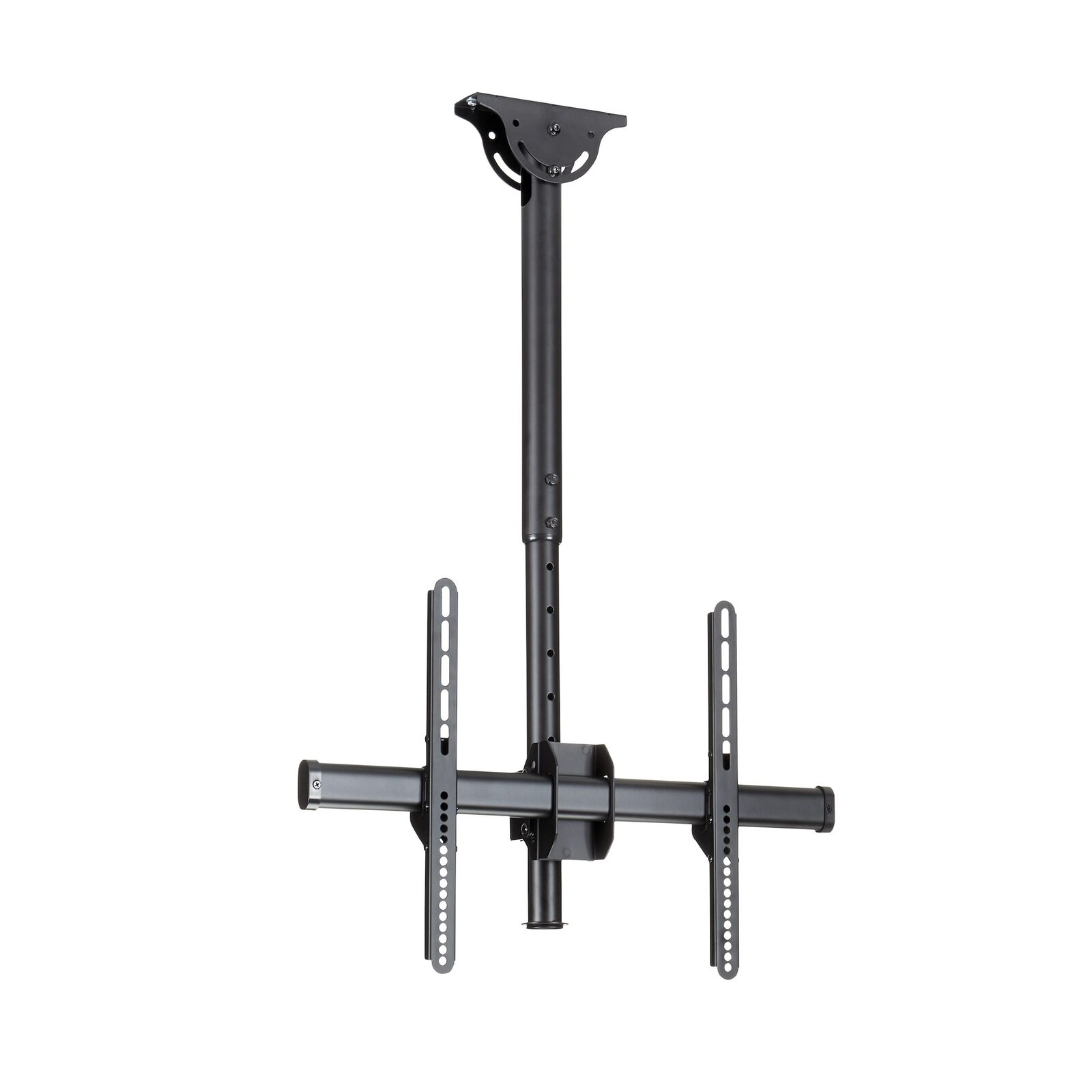

Star Tech Ceiling TV Mount - 1.8 to 3' Short Pole - 32 to 75" Displays

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Star Tech Ceiling TV Mount - 1.8 to 3' Short Pole - 32 to 75" Displays

This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.

The ceiling mount is ideal for use in corporate boardrooms, lobbies, entrances, restaurants, bars and meeting places.

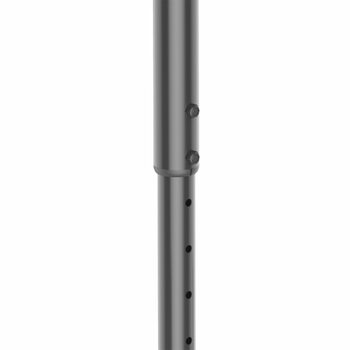

Adjustable Height

With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 22" to 33.5" (560 to 910 mm), with a total lift (height extension) of 13.7" (350 mm).

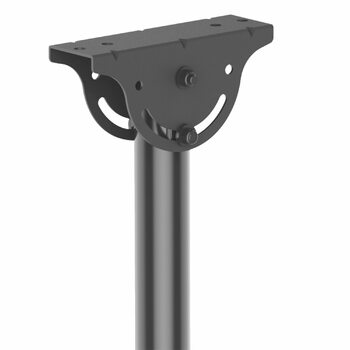

Swivels to Suit Your Ceiling

The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.

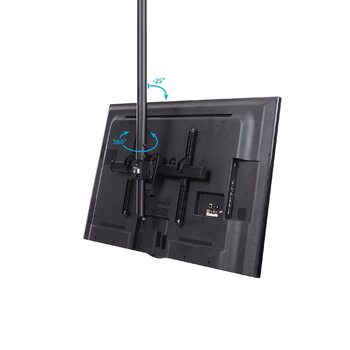

Viewable from Any Direction

You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.

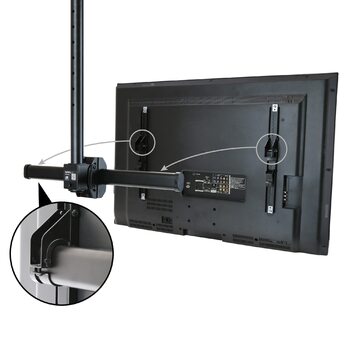

Hook-and-Mount Design

Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.


This item comes with a 5 Years warranty

Display Rotation: 360°
Display Tilt: +0° / -25°
Fits Curved Display: Yes
Height Adjustment: Yes
Maximum Display Size: 75"
Maximum Height: 910 mm [35.8 in]
Minimum Display Size: 32in
Minimum Height: 560 mm [22 in]
Post-Installation Leveling Adjustment: Post-Installation Leveling Adjustment: +/-3°
Swivel / Pivot: +180° to -180°
Video Wall: No
Weight Capacity (Per Display): 50 kg [110.5 lb]

Physical Characteristics
Color: Black
Material: Steel
Product Height: 115 cm [45.3 in]
Product Length: 43.5 cm [17.1 in]
Product Width: 68 cm [26.8 in]
Weight of Product: 4.9 kg [10.8 lb]

Description CDW 75 - 1st Line: Ceiling TV Mount - 1.8' to 3' Short Pole - For 32" to 75" TVs

What's in the Box
Included in Package: 6.3x55 mm screws : bolts : ceiling mount and pole : circular washers : concrete anchor : extension pole : hex key : horizontal bracket : instruction manual : large spacers : M5x14 mm screws : M6x14 mm screws : M6x30 mm screws : M8x30 mm screws

Anti-theft: No

Packaging Information
Shipping (Package) Weight: 6.8 kg [15.1 lb]
Package Width: 77.1 cm [30.4 in]
Package Length: 36.6 cm [14.4 in]
Package Height: 14.9 cm [5.9 in]

Wallmountable: No
VESA Hole Pattern(s): 600x400 mm : 400x400 mm : 400x200 mm : 300x300 mm : 200x200 mm
Mounting Surface Thickness: 560 mm to 910 mm
Mounting Options: Ceiling Mount
Cable Management: Yes
# of Displays Supported: 1

What's in the Box
Included in Package: M8x50 mm screws : mounting template : nuts : rectangular washers : small spacers : vertical brackets : wrench

Barcode # 065030870405
Shipping Weight 6.8500kg
Shipping Width 0.370m
Shipping Height 0.150m
Shipping Length 0.770m
Shipping Cubic 0.042735000m3
Type Ceiling Mount
