3-WAY COMPOSITE AV SELECTOR 3 IN 2 OUT AV SWITCHER (AV31S)

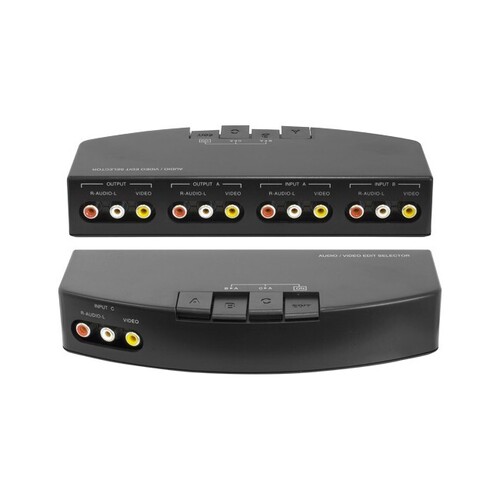

AV313 R Composite AV Selector

Features:

• 3 in 2 out Composite AV Selector
• Connect multiple AV sources to multiple destinations
• Easily switch between AV sources with the press of abutton
• EDIT button: This feature allows you to record material from Source B or C to a VCR which is connected to Output A

Specifications:

Specification for audio :

• Frequency range: 10-20K Hz
• Insertion loss: 0.1dB limited
• Channel separation (@ 1KHz): 60dB normal / 55dB limited
• Crosstalk between function (@ 1K Hz) 60dB normal/ 55dB limited

Note:

• The generator impedance should be 600 ohm
• Signal output reading is taken across a 47K ohm load
• Product Output 4.7K ohm terminated (on testing channel separation and crosstalk)

Specification for video:

• Frequency range: 0.3-6M Hz
• Insertion loss: 0.5dB limited
• Isolation loss: 35dB limited

Note:

• The generator impedance should be 75 ohm
• Input 75 ohm terminated
