HDMI AUDIO EXTRACTION 18G

Features:

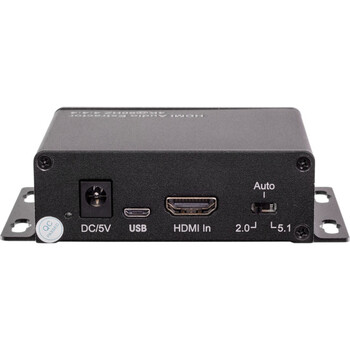

• Three Audio EDID Settings: Auto/2.0 CH/5.1CH

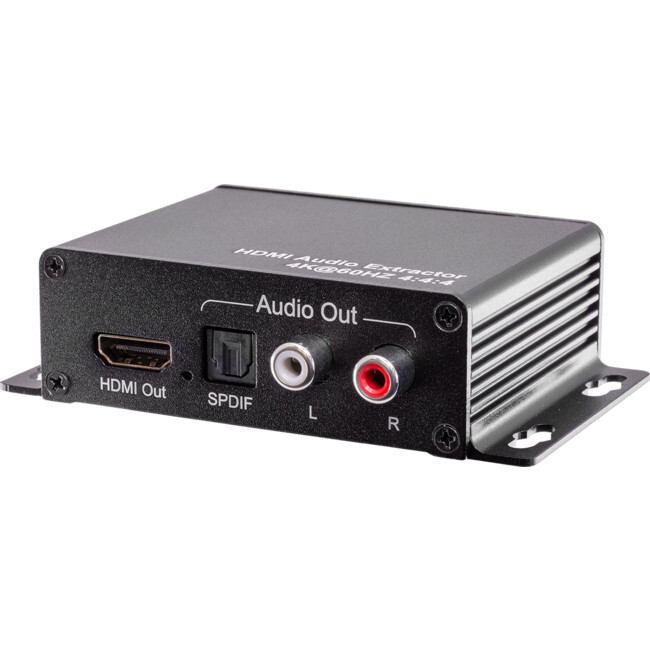

• Extract the digital HDMI audio signal from the HDMI input to 2 channel analog stereo output or 5.1 channel Audio output
• Support PCM and Dolby DTS
• Supports resolution up to 4K@60Hz YUV4:4:4
• Supports deep colour up to 36bit
• HDCP2.2/1.4 Compliant
• Support CEC
• Support firmware updating through USB port

Specifications:

• Operating Temperature Range: -5 to +35
• Operating Humidity Range: 5 to 90%RH (No Condensation)
• Input Video Signal: 0.5-1.0 Volts P-P
• Input DDC Signal: 5 volts p-p(TTL)
• Support Video format:4Kx2K/1080P/1080i/720P/576P/576i/480P/480i/3D video
• Support Video Colour Format: xv-YCC/deep colour 36bit
• Support Audio Format: PCM / DTS-HD Master Audio / Dolbytrue-HD etc.
• Data transfer speed rate: 18Gbps (Maximum)
• Power consumption: 2watts(Maximum)
• Dimension (L×W×H): 104.4x64x28.3mm
• Net Weight: 175g

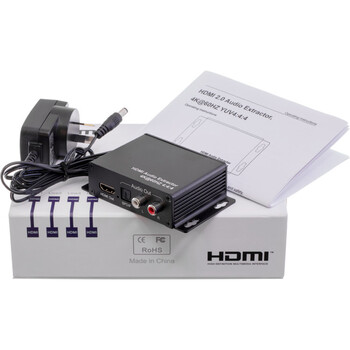

Packaging Contents:

• Main Unit. Mini 4K HDMI Audio Extractor
• DC 5V Power Supply
• Operating Instructions

Specifications are subject to change without notice. Mass and dimensions are approximate.
