HDMI WALL PLATE HDBASET TX RS-232 & IR UPTO 70m (4K- 40M)

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

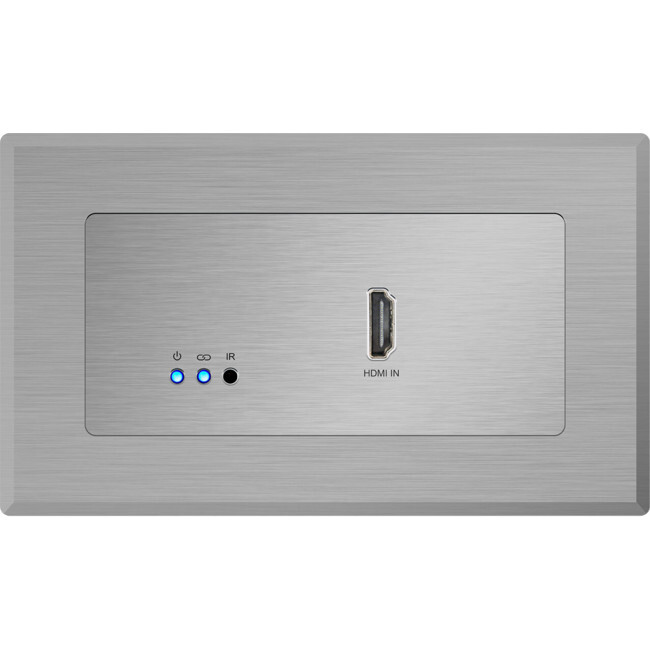

Blustreams HEX11WP-TX HDMI wall plate HDBaseT™ Transmitter is a 4K solution that extends HDMI up to 70m at 1080p (40m 4K 60Hz 4:2:0). Has been designed to work with all Blustream HDBaseT™ Receiver and Matrix solutions, be installed in both UK and European back boxes and can be powered locally or from compatible Blustream HDBaseT™ products.

Key Features:

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Extends HDMI at 1080p up to a distance of 70m
  • Supports all known HDMI audio formats including DolbyTrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Supports 12V-48V PoC from compatible Blustream HDBaseT™ Receiver / Matrix products
  • Bi-directional RS-232 pass through
  • Supports IR pass-through to HDBaseT™ Receiver /Matrix device
  • Compatible with all Blustream HDBaseT™ Receiver/ Matrix products
  • Magnetic faceplate surround allowing both UK & EUbackbox compatibility
  • HDCP 2.2 support

Specifications:

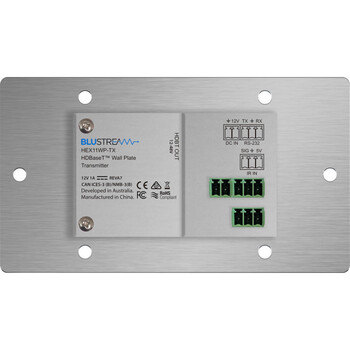

  • Video Input Connectors: 1 x HDMI Type A, 19-pin, female
  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector
  • RS-232 serialport: 1 x 3-Pin Phoenix connector
  • IR Input port: 1 x 3-Pin Phoenix connector
  • Local power input: 1 x 2-Pin Phoenix connector
  • Casing Dimensions (Wx H x D): 136mm x 76mm x 44mm (without faceplate)
  • Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
  • Backbox Mounting Depth: 40mm (minimum) - not supplied
  • Shipping Weight:
  • Operating Temperature: 32°F to 104°F (-5°C to+55°C)
  • Storage Temperature : -4°F to 140°F (-25°C to +70°C)
  • Power Supply: 12V/1A DC

Box Contents:

  • 1 x HEX11WP-TX
  • 1 x 12V/1A DC Power Supply
  • 1 x Magnetic Faceplate surround
  • 1 xQuick Reference Guide

(HEX11WPTX)

This item comes with a 12 months warranty

Model # HEX11WPTX
Barcode # 9340242003201
Brand BLUSTREAM
Shipping Weight 0.7100kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.004000000m3
Type Wall Plate
