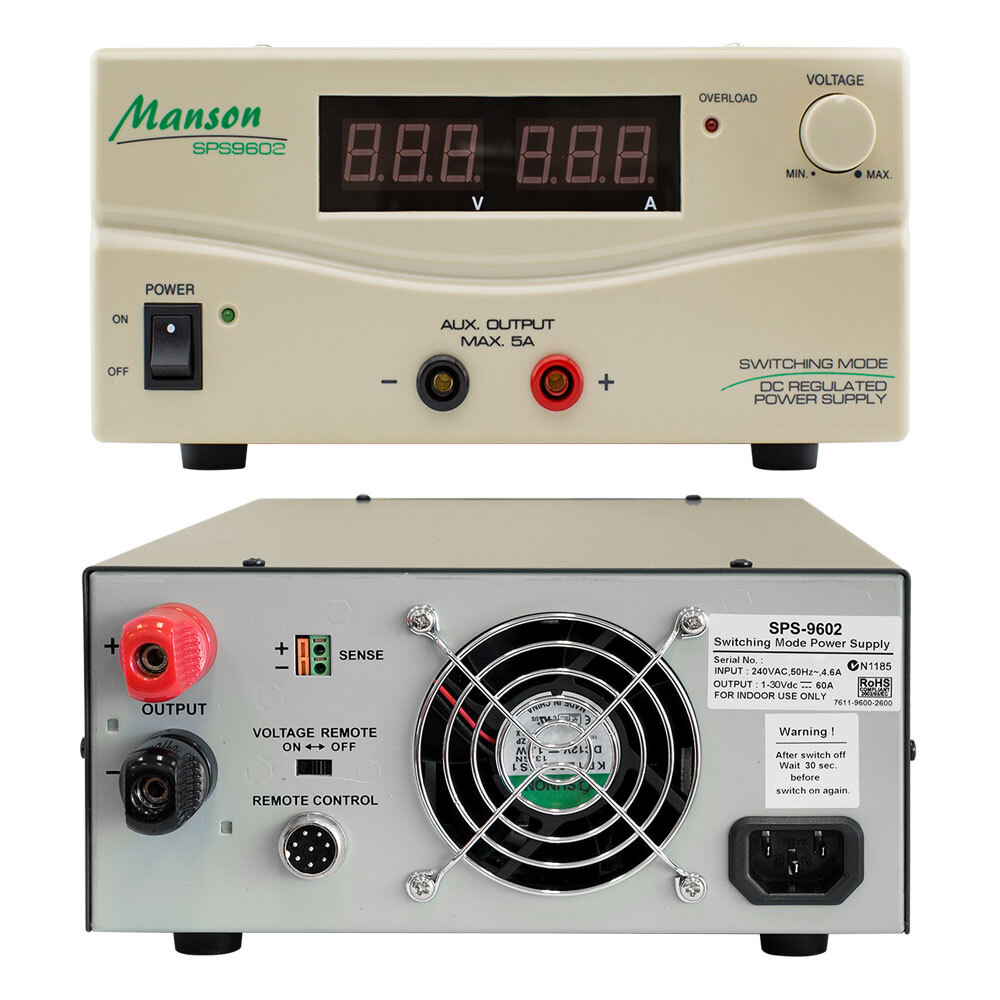

Manson 1-30V 30A DC Power Supply Switchmode Bench Top

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Manson 1-30V 30A DC Power Supply Switchmode Bench Top is designed with a highly efficient active power factor corrector. The constant current limiting protection allows the output current to remain stable but the output voltage decreases to a level that permits safe operation of the power supply.

The remote sensing terminals are used to compensate for output line losses 80 that a precise regulation can be achieved for critical voltage application away from the power supply.

The output voltage level and ON-OFF can be externally controlled via the remote terminal.

It is ideal for applications that need a good quality high DC current network with a precise point of voltage regulation.

SPS-9602 has a small footprint for its 900W continuous maximum power.

It is suitable for a wide range of applications such as street blaster super high power car audio demonstration console, radio equipment and etc.

Features:

  • Total max. continuous output current 30A

  • Main Output/Remote Sensing/ Remote Control/ terminalsat the back

  • Front terminals  3A limiting.

  • ( Precise Load Point Voltage )

  • Remote Sensing for remote point of regulation.

  • Remote control terminals for output voltage adjustment and*on/off"

  • 29HR Count Down Timer (Optional) for Output ON/OFF

  • Floating Ground Design

  • Overload / Over-temperature / Short Circuit Protections

  • Constant Current mode with LED indicator prevents overloading

  • Variable speed thermally controlled fan

  • High RFI stability

  • Active power factor correction ( P.E >0.97 )

(SPS9602G)

This item comes with a 12-month warranty.

  • AU/NZ Plug

  • Variable Output Voltage: 1- 30Vdc

  • Total Rated Output Current (Main Output + Front Output):  30A

  • Rated Output Current (Main Output):  30A

  • Rated Output Current (Front Output):  3A

  • Load Regulation (Main Output): 0.1%+5mV

  • Line Regulation (Main Output): 0.05% +3mV

  • Ripple & Noise (Peak-Peak): 50mVp-p

  • Input Voltage: 230Vac , 50Hz- ( or on request)

  • Efficiency: >85%

  • Meter Type: LED Meter

  • Voltmeter Range: 3 digit display

  • Ammeter Range: 3 digit display

  • Meter's Accuracy: ±I% +1 count

  • Protection Devices: Overload (Constant Current Limiting), Over Temperature, Short Circuit,

  • OVP protections

  • Cooling System: Variable speed thermally controlled fan

  • Special Feature: Remote sensing, Remote output voltage control and *on/off*

  • Approvals CE EMC : EN 55022 , LVD : EN 60950

  • Dimensions: 22 x 11 x 36 cm (WxHxD)

  • Weight: 5.8kgs

  • Remarks: Power factor correction >0.95 at optimal load

Model # SPS9602G
Brand MANSON
Shipping Weight 10.7000kg
Shipping Width 0.380m
Shipping Height 0.130m
Shipping Length 0.240m
Shipping Cubic 0.011856000m3
Type Power Supply
