Mountable 4 Port Rugged Industrial SuperSpeed USB 3.0 Hub

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

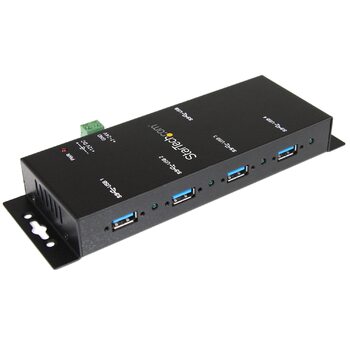

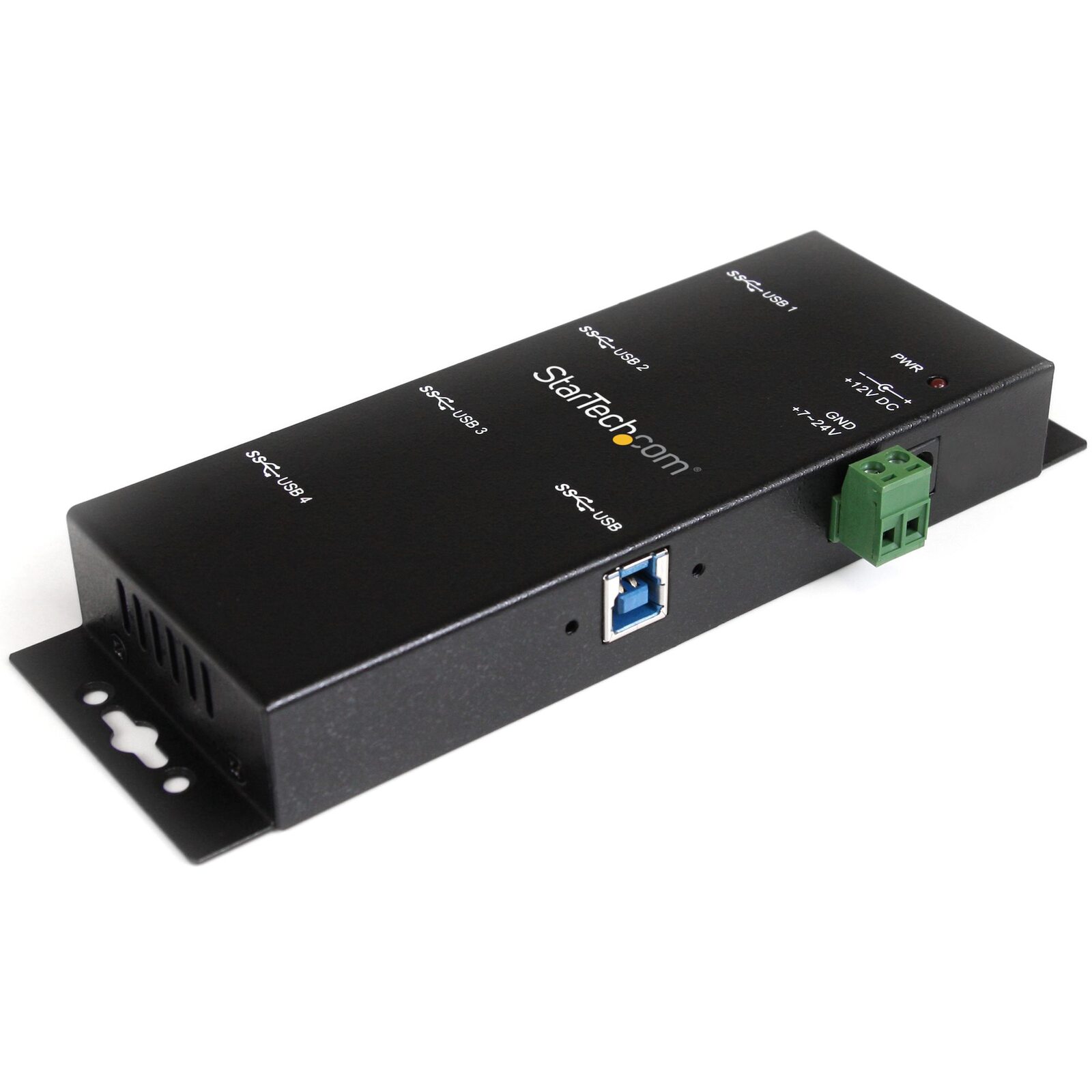

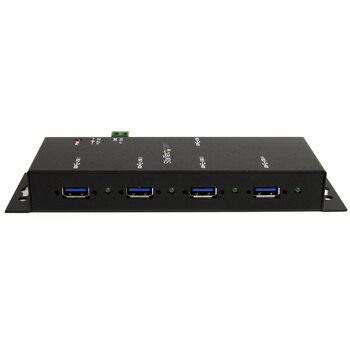

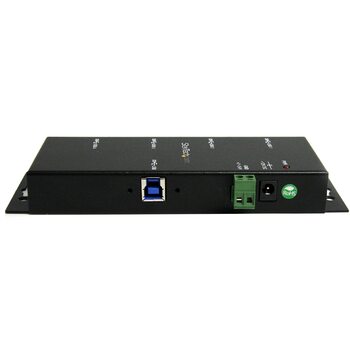

Mountable 4 Port Rugged Industrial SuperSpeed USB 3.0 Hub

This TAA compliant 4-port industrial USB 3.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect & Charge More USB Devices

Designed for a high volume of connections, this robust USB 3.0 hub offers four connection ports, for connecting more USB devices and peripherals.

The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 20W total, so you can charge your mobile devices faster than traditional USB ports allow.

Locate the Hub Where You Need It Most

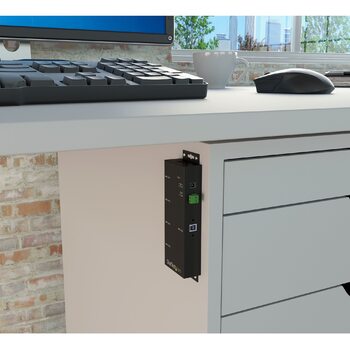

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and an included 1.8-meter USB host cable, you can securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or rack.

StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 5 Gbps bandwidth of USB 3.0 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.0 devices without any disruptions.

(ST4300USBM)

This item comes with a 24 months warranty

Thisindustrial USB hubdelivers reliable performance with a metal, heavy-duty housing.Itsupports wide-range 7-24V DC terminal block input,giving you theflexibility to power the hub as required, based on your own power input capabilities.

Packaging Information
Package Height: 69 mm [2.7 in]

Indicators
LED Indicators: USB Device Connection (Green) : Power (Red)

Hardware
USB-C Host Connection: No
USB-C Device Port(s): No
Ports: 4
Interface: USB 3.0
Fast-Charge Port(s): No
Chipset ID: VIA/VLI - VL811+
Bus Type: USB 3.0

Environmental
Storage Temperature: -20°C to 85°C (-4°F to 185°F)
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Humidity: 5~95% RH

Connector(s)
External Ports: USB Type-B (9 pin) USB 3.0 Female : USB Type-A (9 pin) USB 3.0 (5 Gbps) Female : Terminal Block (2 Wire)

Packaging Information
Package Length: 19.1 cm [7.5 in]

Power
Output Voltage: 12V DC
Plug Type: M
Power Consumption (In Watts): 36
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com 4-Port Industrial USB 3.0 Hub with ESD Protection - Mountable

Software
OS Compatibility: OS Independent; No additional drivers or software required

Special Notes / Requirements
System and Cable Requirements: Available USB 3.0 port

What's in the Box
Included in Package: 6 ft [1.8 m] USB 3.0 cable (non-locking) : Industrial USB 3.0 Hub : Instruction Manual : Terminal Block (2 Wire) : Universal Power Adapter (NA/JP, EU, UK, ANZ)

Packaging Information
Package Width: 29.5 cm [11.6 in]
Shipping (Package) Weight: 1.2 kg [2.6 lb]

Performance
Device Power Consumption (In Watts): 24 Watts
Maximum Data Transfer Rate: 5 Gbps
MTBF: 245,881 Hours
Total Available Power Output (In Watts):  18 Watts

Physical Characteristics
Color: Black
Form Factor: Industrial
Material: Steel
Product Height: 2.4 cm [0.9 in]
Product Length: 15.2 cm [6 in]
Product Width: 59.6 mm [2.3 in]
Weight of Product: 301 g [10.6 oz]

Power
Center Tip Polarity: Positive
Output Current: 3A

Model # ST4300USBM
Barcode # 065030841603
Brand STAR TECH
Shipping Weight 1.1700kg
Shipping Width 0.190m
Shipping Height 0.070m
Shipping Length 0.300m
Shipping Cubic 0.003888000m3
Type Hub/Splitter Box
