Mountable 4 Port Rugged Industrial USB Hub

This TAA compliant 4-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.

Perfect for Harsh Environments

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.

Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.

Connect More USB Devices

Designed for a high volume of connections, this robust USB 2.0 hub offers four connection ports, for connecting more USB devices and peripherals.

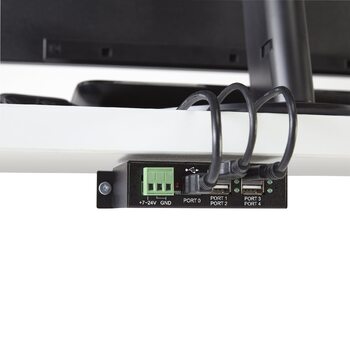

Locate the Hub Where You Need It Most

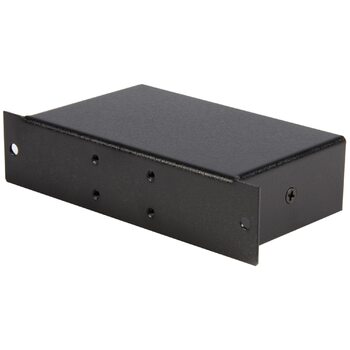

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack. offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for’s line of industrial USB hubs.

Works with Older USB Devices

The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.


This item comes with a 24 months warranty

Packaging Information
Shipping (Package) Weight: 384 g [13.6 oz]

Device Power Consumption (In Watts): 12 Watts
Maximum Data Transfer Rate: 480 Mbps
MTBF: 193,317 Hours
Total Available Power Output (In Watts):  10 Watts

Physical Characteristics
Color: Black
Material: Steel
Product Height: 2.6 cm [1 in]
Product Length: 11.4 cm [4.5 in]
Product Width: 57.3 mm [2.3 in]
Weight of Product: 207 g [7.3 oz]

Input Voltage: 7 ~ 24 DC
Power Source: Terminal Block

Description CDW 75 - 1st Line: 4-Port Industrial USB 2.0 Hub with ESD Protection - Mountable

OS Compatibility: OS independent; No software or drivers required

Special Notes / Requirements
System and Cable Requirements: Any computer with a USB 2.0 port

What's in the Box
Included in Package: DIN Mounting Rails : Instruction Manual : USB 2.0 Hub : USB Cable

Packaging Information
Package Width: 21 cm [8.3 in]
Package Length: 14.6 cm [5.7 in]
Package Height: 40 mm [1.6 in]

LED Indicators: Power

Ports: 4
Interface: USB 2.0
Industry Standards: USB 2.0
Chipset ID: Renesas/NEC - µPD720114
Bus Type: USB 2.0

Storage Temperature: -20°C to 85°C (-4°F to 185°F)
Operating Temperature: 0°C to 55°C (32°F to 131°F)
Humidity: 5 to 95% RH

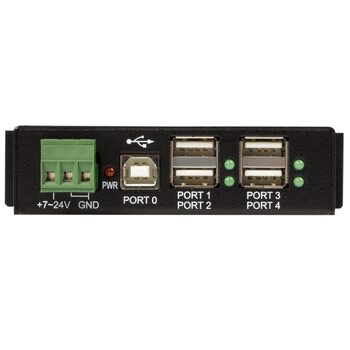

External Ports: USB Type-A (4 pin) USB 2.0 Female : USB B (4 pin) Female : Terminal Block (3 Wire)

Model # ST4200USBM
Barcode # 065030831024
Shipping Weight 0.3800kg
Shipping Width 0.150m
Shipping Height 0.040m
Shipping Length 0.210m
Shipping Cubic 0.001226000m3
Type Hub/Splitter Box
