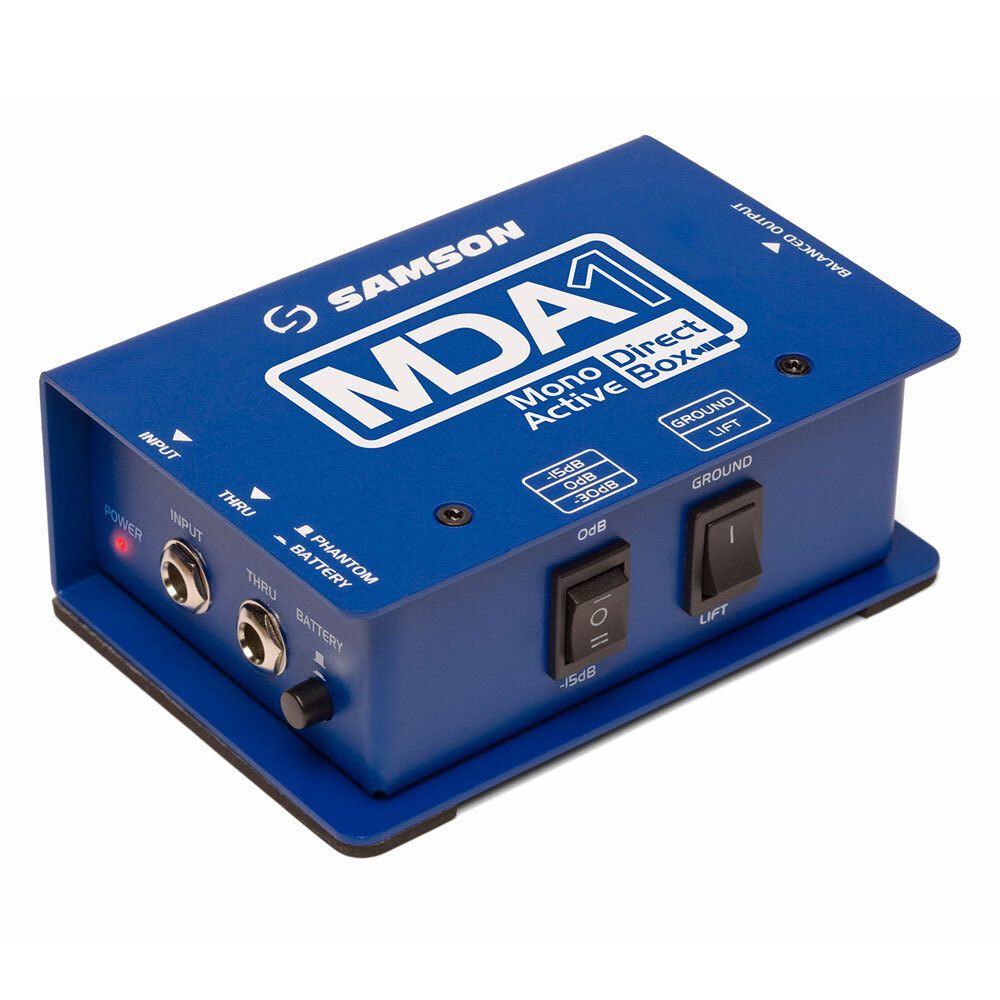

Samson MD1 Mono Active Direct Box

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Samson MD1 Mono Active Direct Stand combines premium sound circuitry with durable, roadworthy construction, providing high-quality signal connection solutions for live sound and recording studio applications.

The MDA1 operates on either batteries or phantom power and allows clean, balanced lines to be sent from your guitars and basses.

The MDA1 Mono Active Direct Box is ideal for running longer signals to your mixer in high interference environments.

An input attenuator lets you adapt the MDA1 to a wide variety of signals, while a ground lift switch enables you to further remove hum and buzz. The MDA1 can run on Phantom Power or a 9V battery.

  • All-metal, impact-resistant design

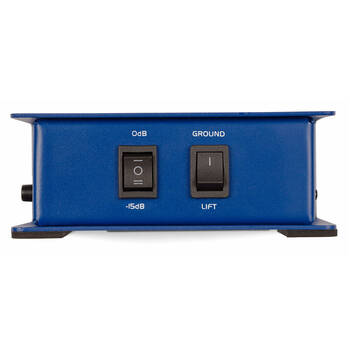

  • 2-position 0dB/-15dB attenuation switch

  • Ground Lift switch

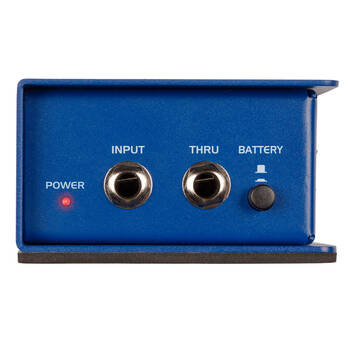

  • 1/4" Input and Thru

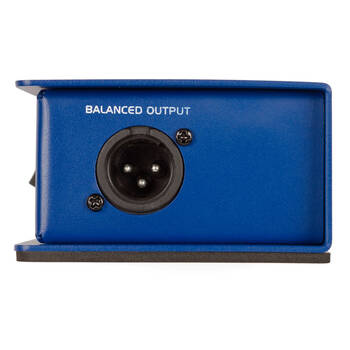

  • Balanced XLR output

  • 48V Phantom and 9V Battery power options

  • Frequency response of 18Hz–35kHz

  • Ideal for guitars and basses

  • Runs on Phantom Power or single 9V battery • 3-position Pad switch (0dB, -15dB, -30dB)

Includes:

  • MD1A Direct Box

  • Manual

(SAMDA1)

This item comes with a 12-month warranty.

The MDA1 Mono Active Direct Box is ideal for running longer signals to your mixer in high interference environments.

  • Colour: Blue

  • Type: Mono Active Direct Box

  • Frequency Response: 18Hz to 35kHz -3dB

  • Maximum Input: +2dBu (9 Volt Battery)

  • Gain: +4.8dB

  • Dynamic Range: 105dB @ Balanced Output

  • Noise Floor: -98dB (Pad Off)

  • Total harmonic distortion: <0.05% from 18Hz to 35kHz

  • Input impedance: 1MΩ (Pad On or Off)

  • Output Impedance: 200Ω

  • Input PAD Switch: 0dB, -15dB

  • Ground Lift: Disconnects XLR pin-1 (Output)

  • Connectors: 1/4” Phone Jack, unbalanced (In & Thru) XLR balanced (Output)

  • Power Supply: 48V Phantom Power or 9 Volt battery

  • Construction: 14 Gauge Steel Chassis

  • Dimensions: 127 x 86 x 50 mm

  • Weight: 611g

Model # SAMDA1
Barcode # 809164018063
Brand SAMSON
Shipping Weight 0.6750kg
Shipping Width 0.140m
Shipping Height 0.060m
Shipping Length 0.100m
Shipping Cubic 0.001000000m3
Type Mono Active Direct Box
