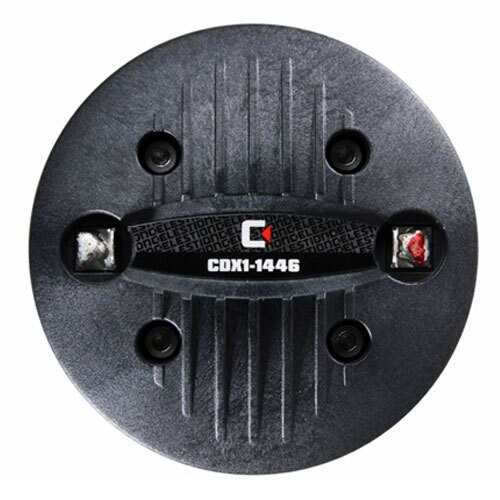

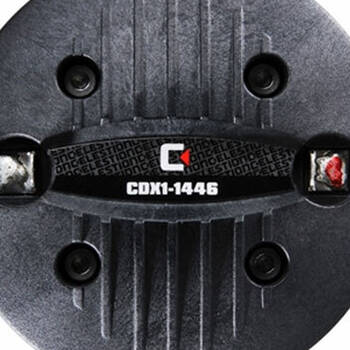

Celestion T5796: 1" 20W HF Driver 8OHM

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

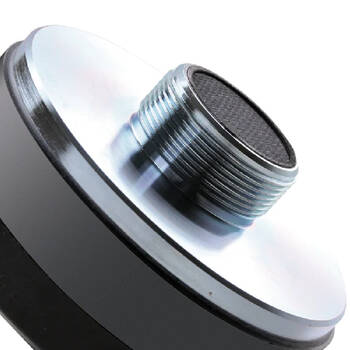

The lightweight and compact ferrite magnet compression driver with 1.4" copper clad aluminium voice coil.

20Wrms power handling (AES standard) and 106dB sensitivity.

Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design.

Suitable for 2-way and 3-way systems

Features:

  • 20W

  • Sensitivity 106dB

  • Recommended min. crossover (12dB/oct) 2200Hz)

  • Voice coil diameter 35mm/1.4in

  • Voice coil material Copper clad aluminium

  • Diaphragm material PETP film

  • Surround material PETP film

  • Unit weight 1.1kg

Includes:

  • 1x Celestion 1" 20W HF Driver 80HM

(28-CDX1-1446)

Standard Consumer Warranty
Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design.

  • Colour: Black

  • Power Rating: 20W

Model # 28/CDX1-1446
Barcode # 739894579643
Brand CELESTION
Shipping Weight 1.0800kg
Shipping Width 0.090m
Shipping Height 0.080m
Shipping Length 0.090m
Shipping Cubic 0.000648000m3
Type High-Frequency Driver
