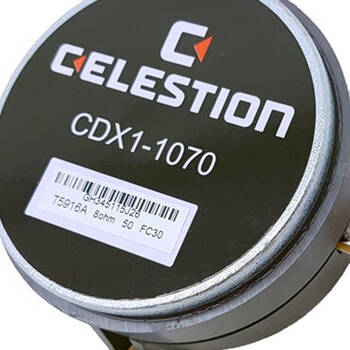

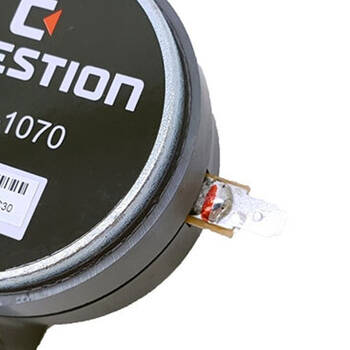

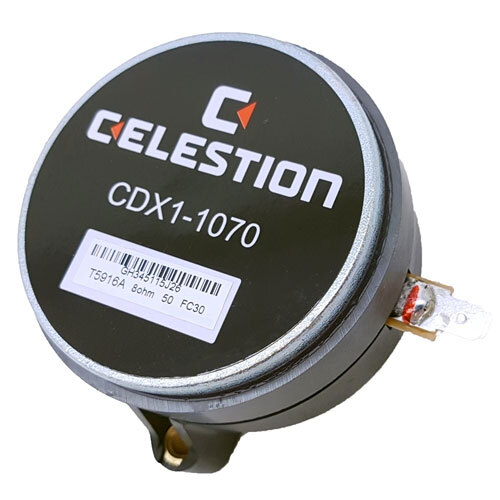

Celestion T5916: 1" 12W HF Driver 8 Ohm
or 4 payments of $16.00 with Learn more
12Wrms (AES standard) power handling and 106dB sensitivity, 1500-20,000Hz frequency range.
Reviews
Be The First To Review This Product!
Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.
Very lightweight, low-profile ferrite magnet compression driver.
12Wrms (AES standard) power handling and 106dB sensitivity, 1500-20,000Hz frequency range.
Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design.
Ideal for entry-level two-way and three-way sound reinforcement cabinets.
Features:
-
Power rating 12Wrms
-
Nominal impedance 8O
-
Frequency range 1500-20,000Hz
-
Sensitivity 106dB
-
Recommended min. crossover (12dB/oct) 2200Hz
-
Voice coil diameter 25mm/1.0in
-
Voice coil material Copper clad aluminium
-
Magnet type Ferrite
-
Diaphragm material PETP film
-
Surround material PETP film
Includes:
-
1x Celestion 1" 12W HF Driver 8 Ohm
(28-CDX1-1070)
-
Colour: Black
-
Power Rating: 12 W
Model # | 28/CDX1-1070 |
Barcode # | 739894591645 |
Brand | CELESTION |
Shipping Weight | 0.5400kg |
Shipping Width | 0.090m |
Shipping Height | 0.060m |
Shipping Length | 0.090m |
Shipping Cubic | 0.000486000m3 |
Type | High-Frequency Driver |
