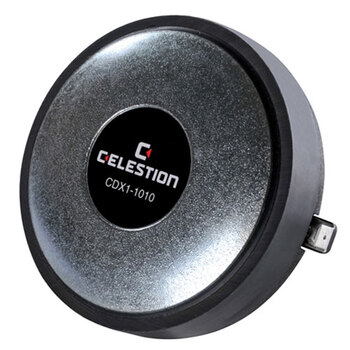

Celestion T5829: 1" 15W HF Driver 8Ohm

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Very lightweight, low-profile ferrite magnet compression driver.

15Wrms (AES standard) power handling and 107dB sensitivity, 1500-20,000Hz frequency range.

Finite Element Analysis (FEA) techniques used to optimise both magnetic and acoustic design.

Ideal for entry-level two-way and three-way sound reinforcement cabinets.

Features:

  • Power rating 15Wrms

  • Nominal impedance 8O

  • Frequency range 1500-20,000Hz

  • Sensitivity 107dB

  • Recommended min. crossover (12dB/oct) 2200Hz

  • Voice coil diameter 25mm/1.0in

  • Voice coil material Copper clad aluminium

  • Magnet type Ferrite

  • Diaphragm material PETP film

  • Surround material PETP film

Includes:

  • 1x Celestion 1" 15W HF Driver 8 Ohm

(28-CDX1-1010)

Standard Consumer Warranty

  • Colour: Black

  • Power Rating: 15W

Model # 28/CDX1-1010
Barcode # 739894582940
Brand CELESTION
Shipping Weight 1.0000kg
Shipping Width 0.100m
Shipping Height 0.070m
Shipping Length 0.130m
Shipping Cubic 0.000910000m3
Type High-Frequency Driver
