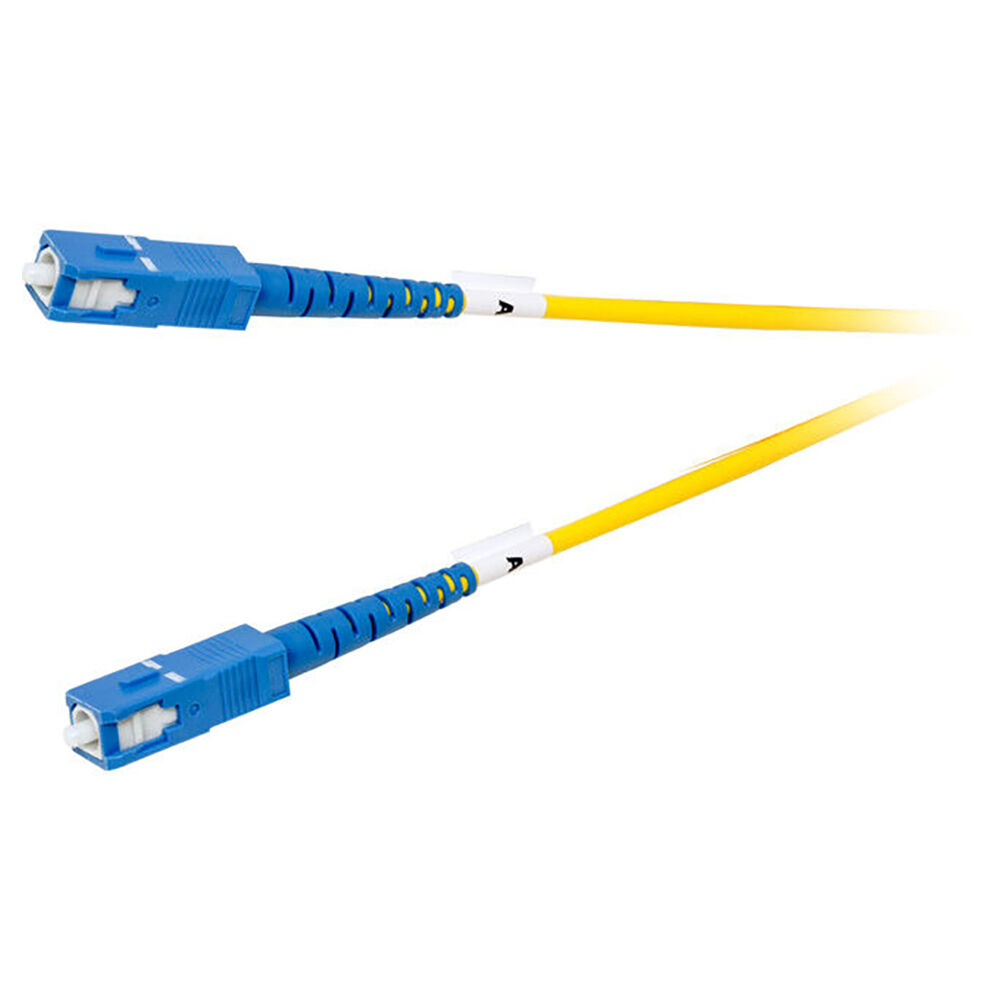

Pro2 SM SC/Subscriber Connector Fibre Patch Network Single Cable Roll 100M

FIB100SF PRO2 SM Subscriber Connector FIBRE CABLE – 100M ROLL

SC stands for Subscriber Connector – a general purpose push / pull style connector

SC Connectors are frequently used for newer network applications. The square, snap-in connector latches with a simple push-pull motion and is keyed. They feature a 2.5mm ferrule and molded housing for protection.

  • Superior qualified standard PC / UPC / APC polishing
  • Compliant with Telcordia GR-326-Core, TIA / EIA and IEC
  • 100% optic test (Insertion Loss & Return Loss)
  • Single mode
  • Comply to IEC Standard
  • Flexible boot are available
  • G652D OS2 standard
  • PVC / LSZH

Applications


  • High Speed and volume Fibre Optic Transmission Systems
  • CATV Networks
  • LAN
  • Fibre Optic Instrumentation

Specifications

Patch Cord/Pigtail


Type SC/UPC to SC/UPC Single Mode SX 3.0mm
Insertion loss
  • A1: 0.17dB
  • A2: 0.13dB
Return Loss
  • A1: 63.2dB
  • A2: 64.1dB
Repeatability ≤0.1dB
Durability ≥1000 matings
Operating Temperature −40°C to +80°C
Tensile Strength(N)
  • ≥90N (f3)
  • ≥70N (f2)
Cable Length 100m

Includes:
1 x Fibre Cable Roll

(RP-05060700)

12 Months

Model # RP-05060700
Barcode # 9328202021076
Brand PRO2
Shipping Weight 0.6000kg
Shipping Width 0.250m
Shipping Height 0.060m
Shipping Length 0.250m
Shipping Cubic 0.007500000m3
Type Single Mode
