Thunderbolt 3 PCIe Expansion Chassis with DP - PCIe x16

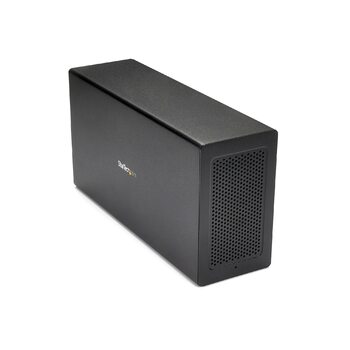

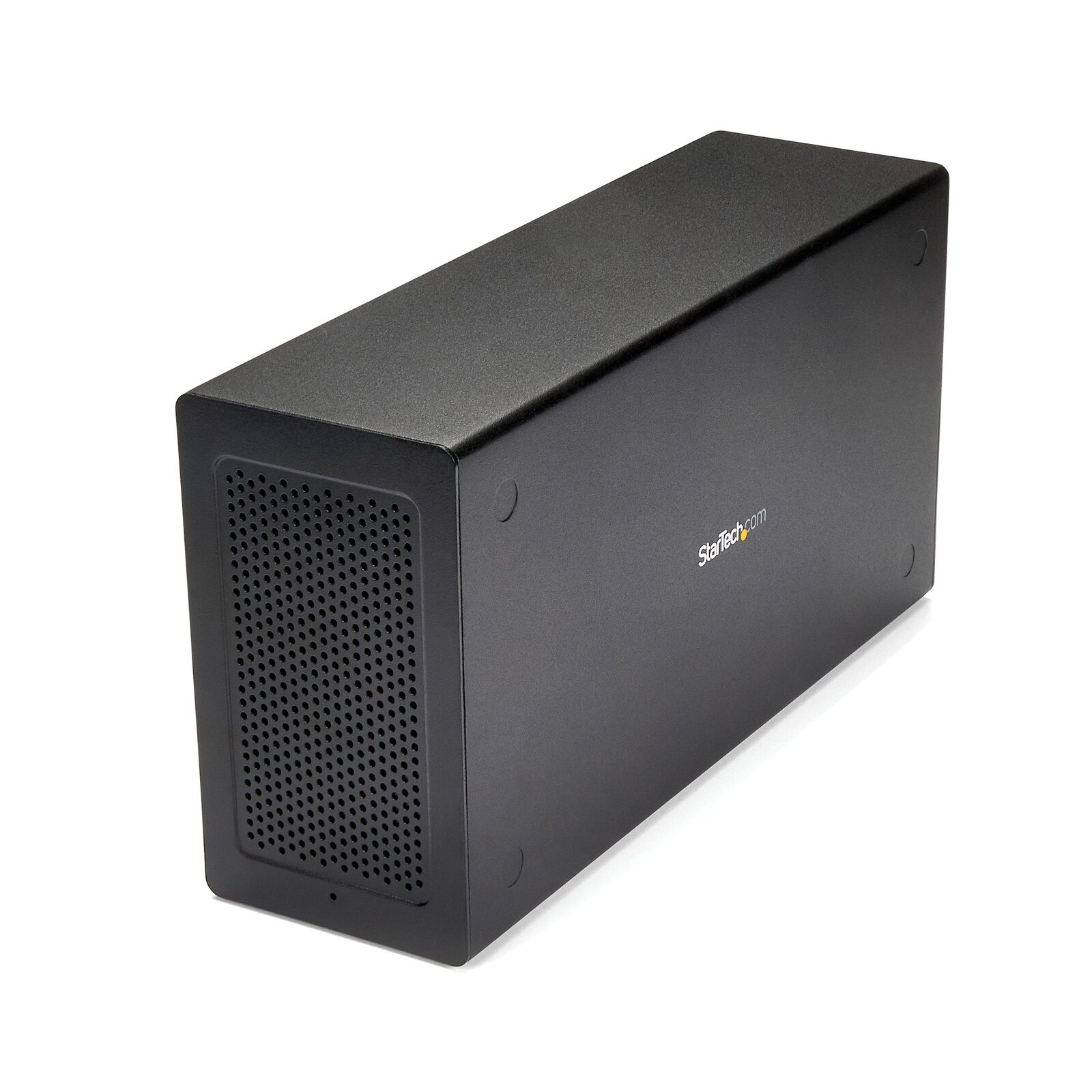

This Thunderbolt™3 PCIe expansion chassis lets you add a PCI Express card to your laptop or desktop computer, through an external Thunderbolt 3 connection. The chassis also features a DisplayPort video output, so you can connect an additional monitor to your laptop, and supports Thunderbolt 3 daisy chaining, so you can expand your workstation even further.

Expand the capabilities of your Thunderbolt 3 computer

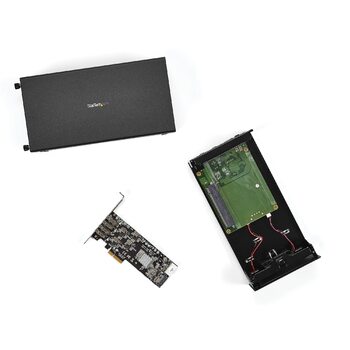

The Thunderbolt 3 PCIe chassis makes it easy to expand your system with the capabilities you need to work at peak productivity. You can add many types of PCI Express cards, such as a PCIe USB 3.1/3.0/2.0 and USB-C, SSD, network, eSATA, FireWire or video capture cards. And, with the speed and bandwidth support of Thunderbolt 3 and PCIe 3.0, you can enjoy many of the same port additions you would from the PCI Express expansion slots of a desktop system.

Extend your workstation

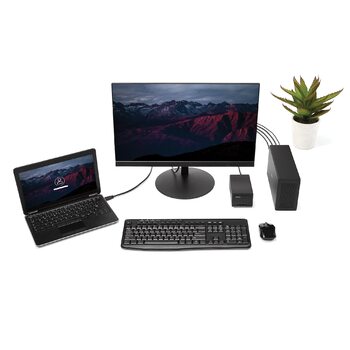

The external PCIe enclosure features a dedicated DisplayPort output that lets you add an additional display to your laptop or desktop computer. The enclosure features a second Thunderbolt 3 (USB-C) port, that you can use to connect a secondary display (a USB-C video adapter may be required). With multiple extended displays, you can work more efficiently by multitasking faster, and avoid the hassle of continually repositioning several open windows or programs.

You can also use the second Thunderbolt 3 port to connect additional Thunderbolt, USB and DisplayPort devices to your system. You can daisy chain up to six Thunderbolt 3 devices and expand your workstation to suit your specific requirements.

Increase productivity with faster speeds

Thunderbolt 3 is the fastest connection available, which means you don’t have to deal with the performance bottlenecks of a slower connection, and can accomplish more in the same amount of time.

At up to 40Gbps this Thunderbolt 3 expansion chassis gives you the throughput to add displays to your laptop, access files quickly, and work without disruptions. It’s easy to access and edit large uncompressed files such as videos and images on the fly, making it ideal for dynamic on-site production.

(TB31PCIEX16)

This item comes with a 24 months warranty

Expand the capabilities of your Thunderbolt 3 computer

Hardware
Noise Level: 24.55 dB
Ports: 3

Indicators
LED Indicators: Power(Blue)

Packaging Information
Package Height: 14.5 cm [5.7 in]
Package Length: 36 cm [14.2 in]
Package Width: 29 cm [11.4 in]
Shipping (Package) Weight: 3.1 kg [6.9 lb]

Performance
Bandwidth: 3.94 GB/s (x4 PCIe 3.0 )
Maximum Data Transfer Rate: 40 Gbps (Thunderbolt 3)
Type and Rate: Thunderbolt 3 - 40 Gbit/s

Physical Characteristics
Cable Length: 500 mm [19.7 in]
Color: Black
Material: Aluminum and Steel
Product Height: 8.2 cm [3.2 in]
Product Length: 28 cm [11 in]
Product Width: 14.2 cm [5.6 in]
Weight of Product: 1.6 kg [3.6 lb]

Power
Center Tip Polarity: Positive
Input Current: 2A
Input Voltage: 100 - 240 AC
Output Current: 5.417A
Output Voltage: 12V DC
Plug Type: N
Power Consumption (In Watts): 65
Power Source: AC Adapter Included

Software
OS Compatibility: Windows® 7, 8, 8.1, 10
macOS 10.12 - 10.15, 11.0

Special Notes / Requirements
Note: 5K support can only be achieved using a Thunderbolt 3 5K monitor. DisplayPort 5K monitors will not work with this expansion chassis. : A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K). : Certain monitors may be limited to 4K at 30Hz when connecting through DisplayPort. These monitors include the following models: Dell P2715Q, Viewsonic VX2475Smhl-4K, Philips 288P6LJEB, LG 31MU97C-B, Asus PB287Q (these models will need to be set to 4K at 30Hz). : Secondary Thunderbolt 3 port can also be used to connect USB 3.1 (10Gbps) USB-Type C devices, such as USB 3.1 Hubs. Backwards compatible with USB 3.0 (USB 3.1 Gen 1), and USB 2.0. : The expansion chassis does not support video cards. : This expansion chassis does not provide full power delivery but will provide 15W of power, resulting in a slow charge to some laptops, such as MacBook Pro. When the dock is connected to your host laptop, a charging icon may appear on your laptop's screen. This is only sufficient enough to charge your laptop in sleep state, and charging will require an extended time period. : When connecting a display to one of the Thunderbolt 3 USB-C ports, a USB-C video adapter might be required depending on the input of your display.

Hardware
Interface: Thunderbolt
Industry Standards: Thunderbolt 3
Fans: 60 mm
Fan(s): Yes
Fan Bearing Type: Sleeve Bearing
Chipset ID: Intel - Alpine Ridge DSL6540
Card Type: Standard Profile
Bus Type: Thunderbolt 3
Air Flow Rate: 14.06 CFM

Environmental
Storage Temperature: -20°C to 50°C (-4°F to 122°F)
Operating Temperature: 5°C to 35°C (41°F to 95°F)
Humidity: 20-80%RH

Connector(s)
Internal Ports: PCI Express x16 Female

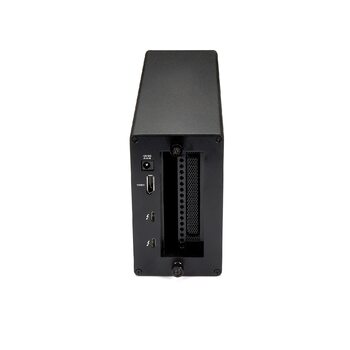

External Ports: Thunderbolt™ 3 USB-C (24-pin) (40Gbps) Female : DisplayPort (20 pin) Female

Special Notes / Requirements
System and Cable Requirements: Thunderbolt 3 equipped computer with a Thunderbolt 3 port.

What's in the Box
Included in Package: quick-start guide : rubber feet : Thunderbolt 3 cable : Thunderbolt 3 PCIe expansion box : universal power adapter (NA/JP, UK, EU, ANZ)

Model # TB31PCIEX16
Barcode # 065030868440
Brand STAR TECH
Shipping Weight 3.1300kg
Shipping Width 0.360m
Shipping Height 0.150m
Shipping Length 0.290m
Shipping Cubic 0.015138000m3
Type Adapter
