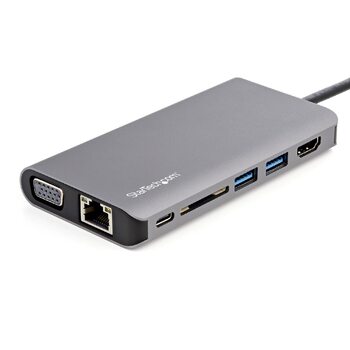

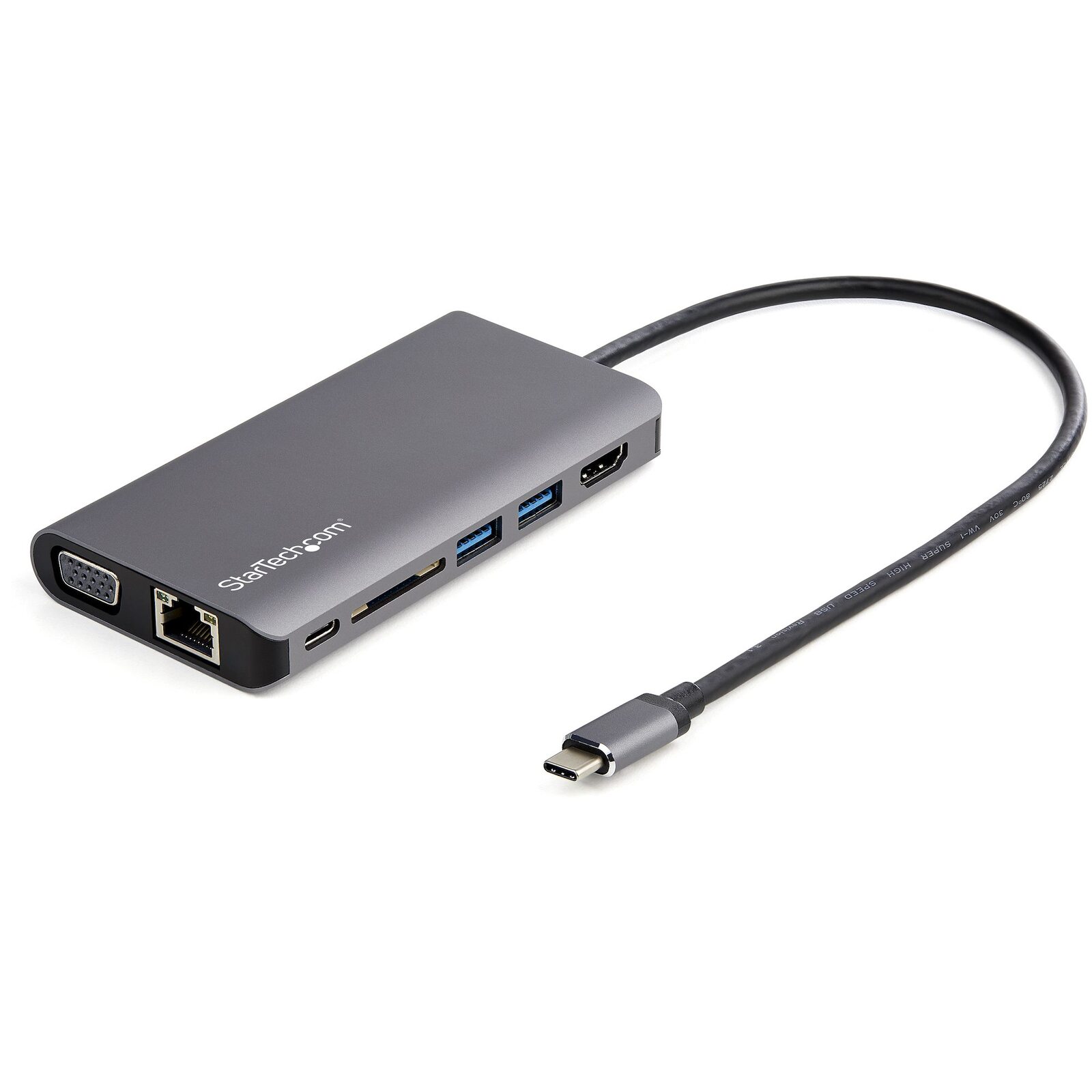

USB-C Multiport Adapter - HDMI / VGA - PD - SD - GbE & Audio

This USB-C multiport adapter turns your MacBook Pro, USB-C™ laptop, Chromebook, or Android (Samsung Galaxy S8, Note 9 and above) device into a workstation, anywhere you go. A USB Type-C adapter, ideal for travel, features everything from the essential HDMI or VGA video outputs and USB ports to an SD card reader and 100W PD including PD passthrough. All through a single extended length 30 cm, Thunderbolt 3 or USB-C attached host cable, providing more flexibility for harder to reach laptop and tablet connections.

To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery and DP Alt Mode.

Two Video Output Options with HDMI or VGA

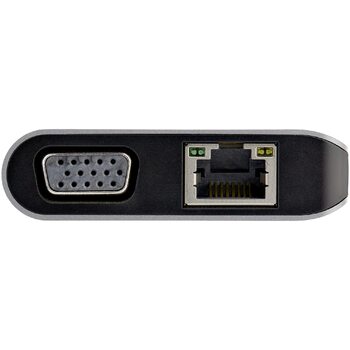

This USB-C multiport adapter features both an HDMI and VGA port providing you with two single video output options for your boardroom presentations or your workstation setup including support for an ultra-wide monitor.

Power & Charge with 100W Power Delivery 3.0

With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. The USB-C hub features PD passthrough so you can use your laptop's own charger to power the hub (requires 15W) and power or charge your laptop simultaneously.

All the Essential Ports with USB

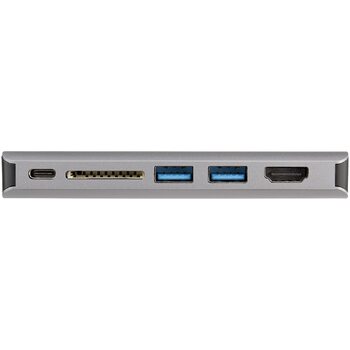

The USB-C to USB 3.0 hub gives you one USB-C port (power & data) and two USB-A ports to connect your latest and legacy USB devices.

Includes Ports to Do More with SD, Audio & Gigabit Ethernet

Access your multimedia content, audio, and network with ease. The multiport adapter provides direct access to your:

  • SD, SDHC™ and SDXC™ memory cards or microSD cards via the SD card slot

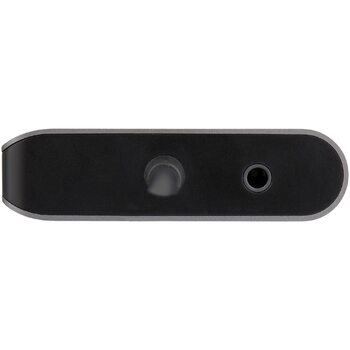

  • Audio content via headphones or microphone through the 3.5mm 4- position audio port
  • Ethernet network via the GbE port using a hard-wired connection

(DKT30CHVAUSP)

This item comes with a 36 months warranty

All through a single extended length 30 cm, Thunderbolt 3 or USB-C attached host cable, providing more flexibility for harder to reach laptop and tablet connections

Hardware
Chipset ID: Cmedia - HS100-B : Genesys Logic - GL823K : ITE Tech - IT6564 : Realtek - RTL8153B : VIA Labs - VL102 : VIA Labs - VL161 : VIA Labs - VL817
Displays Supported: 1
Fast-Charge Port(s): No
Port Style: Cable Adapters
Ports: 7

Packaging Information
Package Height: 3 cm [1.2 in]
Package Length: 17 cm [6.7 in]
Package Width: 14.5 cm [5.7 in]
Shipping (Package) Weight: 0.2 kg [0.4 lb]

Performance
Audio Specifications: 3.5mm Audio
Compatible Networks: 10/100/1000 Mbps
Maximum Analog Resolutions: 1920 x 1200 @ 60Hz (VGA)
Maximum Cable Length: 30 cm [11.8 in]
Maximum Digital Resolutions: 3840 x 2160 @30Hz, 4096 x 2160 @24hz, 3440 x 1440 @60Hz (HDMI)
MTBF: 372518 hours
Power Reservation: Power Reservation: 15W
Type and Rate: USB 3.1 Gen 1 - 5 Gbit/s

Physical Characteristics
Cable Length: 30 cm [11.8 in]
Color: Black & Space Gray
Material: Aluminum and Plastic
Product Height: 1.5 cm [0.6 in]
Product Length: 46 cm [18.1 in]
Product Width: 6.1 cm [2.4 in]
Weight of Product: 125 g [4.4 oz]

Power
Power Delivery: 100W
Power Source: Not Included (not required for standard applications)

Prominence
Description CDW 75 - 1st Line: StarTech.com USB C Multiport Adapter - 4K HDMI / VGA Mini Dock - 3x USB, SD

Hardware
Bus Type: USB 3.1 Gen 1
Audio: Yes
4K Support: Yes

Environmental
Storage Temperature: -10~82°C
Operating Temperature: 0~45°C
Humidity: 5%~90%

Connector(s)

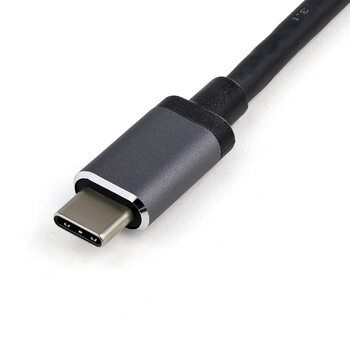

Host Connectors: USB Type-C (24 pin) USB 3.0 (5Gbps) Plug
External Ports: VGA (15 pin, High Density D-Sub) Receptacle : USB Type-C (24 pin) USB 3.0 (5Gbps) Receptacle : USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps) Receptacle : SD Slot Receptacle : RJ-45 Receptacle : HDMI Receptacle : 3.5 mm Audio Output Receptacle : 3.5 mm Audio Input Receptacle

Software
OS Compatibility: macOs Big Sur (11.0)
macOS Catalina (10.15)
macOS Mojave (10.14)
macOS High Sierra (10.13)
macOS Sierra (10.12)
Mac OS X El Capitan (10.11)
iOS
Windows 10
Windows 8.1
Windows 8
Windows 7
Chrome OS
Android

What's in the Box
Included in Package: Quick-Start Guide : USB-C Docking Station

Model # DKT30CHVAUSP
Barcode # 065030880244
Brand STAR TECH
Shipping Weight 0.1900kg
Shipping Width 0.170m
Shipping Height 0.030m
Shipping Length 0.150m
Shipping Cubic 0.000740000m3
Type Docking Station
