Ubiquiti 5 GHz NanoStation ac Radio -Up to 450+ Mbps Real TCP/IP Throughput

Ubiquiti 5 GHz NanoStation ac Radio -Up to 450+ Mbps Real TCP/IP Throughput

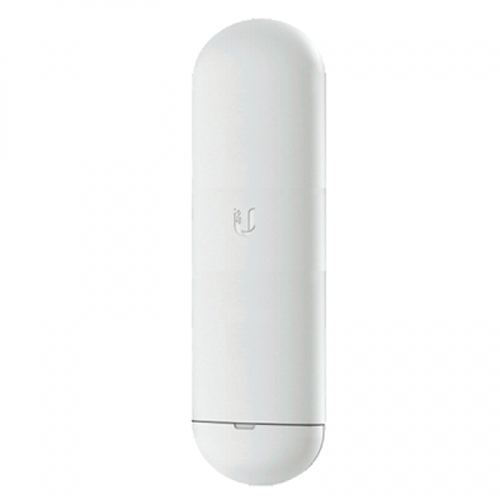

Ubiquiti 5 GHz NanoStation ac Radio

5 GHz airMAX® ac Radio
Models: NS-5AC, NS-5ACL
Ubiquiti® airMAX ac Processor
Up to 450+ Mbps Real TCP/IP Throughput
Dedicated Wi-Fi Radio for Management

Overview
Ubiquiti Networks set the bar for the world's first low-cost and efficient broadband Customer Premises Equipment (CPE) with the
NanoStation® M.The NanoStation AC and NanoStation AC loco take the same concept to the future with sleek form factors, along
with integrated airMAX (MIMO TDMA protocol) technology and dedicatedWi-Fi management.
The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC and NanoStation AC loco get maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC and NanoStation AC loco make them extremely versatile and economical to deploy.

Software
airOS® 8 is the revolutionary operating
system for Ubiquiti airMAX ac
products.

Powerful Wireless Features:-

• Access Point PtMP airMAX Mixed
Mode
• airMAX ac Protocol Support
• Long-Range Point-to-Point (PtP)
Link Mode
• Selectable Channel Width
• PtP: 10/20/30/40/50/60/80 MHz
• PtMP: 10/20/30/40 MHz
• Automatic Channel Selection
• Transmit Power Control:
Automatic/Manual
• Automatic Distance Selection
(ACK Timing)
• Strongest WPA2 Security

Usability Enhancements:-
• airMagic® Channel Selection Tool
• Dynamic Configuration Changes
• Instant Input Validation
• HTML5 Technology
• Optimization for Mobile Devices
• Detailed Device Statistics
• Comprehensive Array of Diagnostic
Tools, including RF Diagnostics and
airView® Spectrum Analyzer

Specifications:-
Dimensions
With Mount
Without Mount
257 x 84 x 30 mm (10.12 x 3.31 x 1.18')
257 x 84 x 41 mm (10.12 x 3.31 x 1.61')
Weight 233 g (8.22) oz
Power Supply 24V, 0.5A Gigabit PoE Supply (Included)
Max. Power Consumption 8.5W
Power Method 802.3af Alternative A (Pairs 1, 2+; 3, 6 Return)
24V Passive PoE
