Ubiquiti UniFi 48 port Managed Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE, SFP+ : Touch Display - 660W GEN2

Ubiquiti UniFi 48 port Managed Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE, SFP+ : Touch Display - 660W GEN2

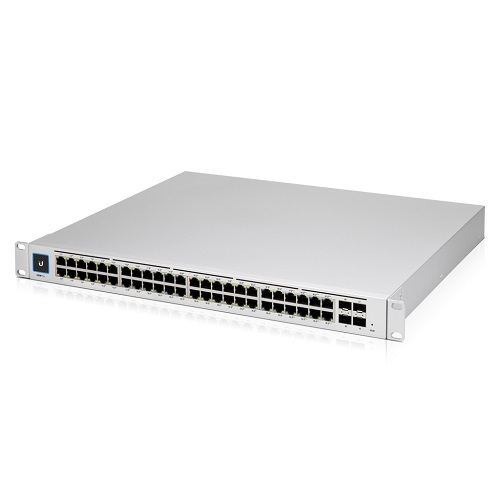

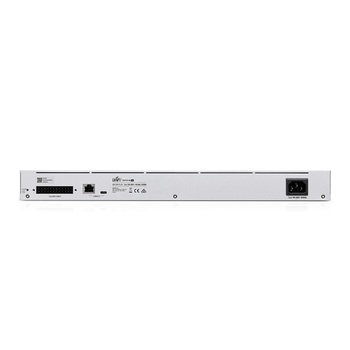

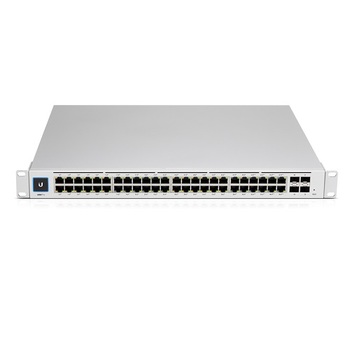

UniFi Switch Pro 48 PoE is a fully managed Layer 3 switch with (8) 802.3bt (PoE++) and (40) 802.3at (PoE+) Gigabit Ethernet ports. (4) 10G SFP+ uplinks offer link aggregation for higher capacity and increased availability. The UniFi Switch Pro 48 PoE features a rich set of Layer 2 capabilities and integrates Layer 3 functionality such as inter-VLAN routing, static routing, and DHCP server. The UniFi Switch Pro 48 PoE is the ideal access layer switch for any UniFi solution – it combines up to 600W of near-silent PoE power with UniFi SmartPower RPS power redundancy. UniFi Network Controller and UniFi Network mobile app allow admins to configure and monitor virtually all of the switch features in  an intuitive graphical user interface from anywhere.

Features:

• (8) Gigabit RJ45 802.3bt PoE++ ports
• (40) Gigabit RJ45 802.3at PoE+ ports
• (4) 10G SFP+ ports
• Layer 2 and Layer 3 features
• 600W maximum PoE power
• UniFi SmartPower RPS DC input
• Near-silent cooling
• 1.3" touchscreen display
• Managed by UniFi Network Controller

PRODUCT SPECIFICATIONS
Mechanical

• Dimensions: 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72")
• Weight: 6.25 kg (13.78 lb) With Rackmount Brackets 66.34 kg (13.98 lb)
• Interfaces: (48) 10/100/1000 RJ45 Ports
• Networking: (4) 1/10G SFP+ Ethernet Ports
• Management: Ethernet In-Band
• Power Method
  • Universal Input: 100-240VAC/50-60 Hz
  • USP RPS DC Input : 52VDC, 11.54A; 11.5VDC, 5.22A
• Power Supply: AC/DC, Internal, 660W
• Supported Voltage Range: 100 to 240VAC
• Max. Power Consumption (Excluding PoE Output): 60W
• LEDs
  • RJ45 Data Ports: PoE; Speed/Link/Activity
  • SFP Data Ports: Link/Activity
• ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
• Shock and Vibration: ETSI300-019-1.4 Standard
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity : 10 to 90% Noncondensing
• Certifications: CE, FCC, IC

Sound Level*

• 25% PoE Load, 25° C Room Temperature: 0.9 dBr
• 50% PoE Load, 25° C Room Temperature: 7.3 dBr
• 100% PoE Load, 40° C: 22.5 dBr

PoE

• PoE Interfaces
  • Ports 1-40: POE+ IEEE 802.3af/at, (pins 1, 2+; 3, 6-)
  • Ports 41-48: 60W PoE++ IEEE 802.3bt, (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
• Max. PoE Wattage per Port by PSE
  • 802.3at: 32W
  • 802.3bt : 64W
• Voltage Range 802.3af Mode: 44-57V
• Voltage Range 802.3at Mode: 50-57V

*Background noise level: 27.5 dB
