Conference Table Connectivity Box for A/V

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

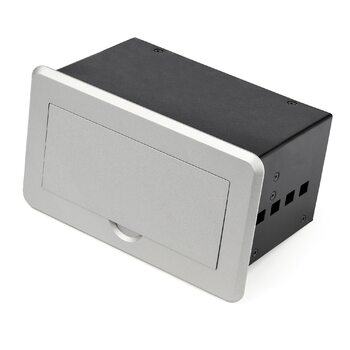

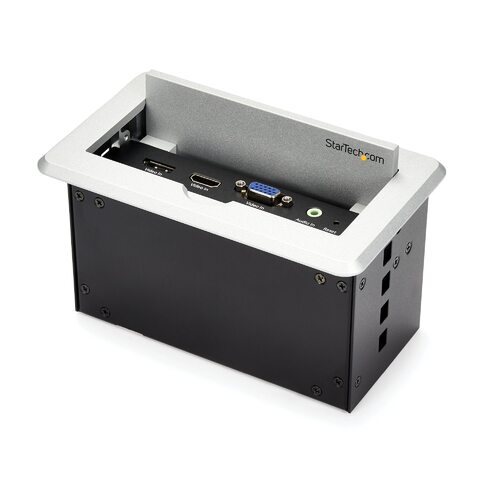

This conference table connectivity box for A/V installs in your table or lectern to provide A/V, networking, and USB charging connectivity in your boardroom, auditorium, or classroom. The box makes it easy to connect HDMI, DisplayPort and VGA laptops to your room’s large HDMI display, and provides LAN and USB power connectivity for charging USB devices. The box also provides some boardroom cable management by hiding connectivity cables in your table.

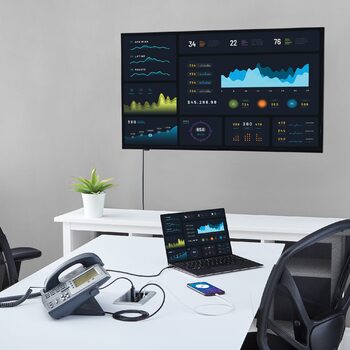

Collaborate Easily Using the Big Screen

The table box enables presenters in your conference room to easily share their laptop screen on the room’s large display or projector, with supported resolutions up to 4K 30Hz.

To share video from virtually any laptop, the table box supports HDMI, VGA and DisplayPort inputs and automatically outputs the most recently connected input to the HDMI display.

Provide Convenient USB Charging and Wired Network Connectivity

Enabling visitors in your conference room to charge their iPhone, iPad, smartphone, or tablet, the table box features three USB charge ports. Plus, the box features an Ethernet pass-through port to provide secure wired network connectivity in rooms where Wi-Fi® isn’t available.

Add Style and Technological Sophistication to Any Room

The boardroom interconnect box has an aluminum finish that complements your space. The hideaway panel eliminates clutter by discreetly covering the connection ports when they’re not in use.

(BOX4HDECP2)

Standard Consumer Warranty
Collaborate Easily Using the Big Screen

Hardware
AV Input: DisplayPort : HDMI : VGA
AV Output: HDMI
USB Pass-Through: No

Packaging Information
Package Height: 9.8 cm [3.9 in]
Package Length: 17 cm [6.7 in]
Package Width: 100 mm [3.9 in]
Shipping (Package) Weight: 1.8 kg [4 lb]

Performance
Aspect Ratio: 16:9
Maximum Analog Resolutions: 1920 x 1200 60Hz
Maximum Cable Length: 15.2 m [50 ft]
Maximum Digital Resolutions: 3840x2160 (4K) 30Hz
Supported Resolutions: 3840x2160 (4K) 30Hz (HDMI and DP Inputs Only)
2560x1600 60Hz (HDMI and DP Inputs Only)
1920x1200 60Hz (Maximum VGA Input)
1920x1080 (1080p) 60Hz
1280x720 (720p) 60Hz

**Lower resolutions and refresh rates, not stated but below the maximum, may also be supported
Video Revision: DisplayPort 1.2 : HDMI 1.4
Wide Screen Supported: Yes

Physical Characteristics
Color: Silver
Product Height: 9.8 cm [3.9 in]
Product Length: 17 cm [6.7 in]
Product Width: 10 cm [3.9 in]
Weight of Product: 1.7 kg [3.8 lb]

Power
Input Voltage: 100 - 240 AC
Output Current: 2A
Output Voltage: 12V DC
Plug Type: N
Power Consumption (In Watts): 24
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com Conference Table Connectivity Box for A/V - 4K

Special Notes / Requirements
Note: VGA (Input) to HDMI (Output) - HDMI Output Port is Active
DisplayPort (Input) to HDMI (Output) - HDMI Output Port is Active
HDMI (Input) to HDMI (Output) - HDMI Output Port is Passive

What's in the Box
Included in Package: cable tie bracket : cable tie bracket screws : conference table box

Hardware
AV Input: 3.5 mm Audio
Audio: Yes
Active or Passive Adapter: Passive : Active

Environmental
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 10% to 85% (non-condensing)

Connector(s)

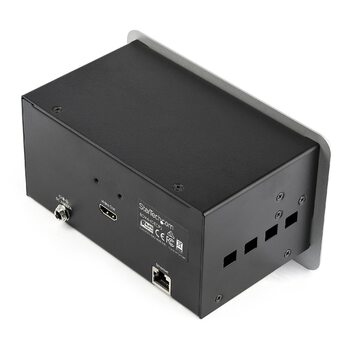

Connector B: RJ-45 Female : HDMI (19 pin) Output Female

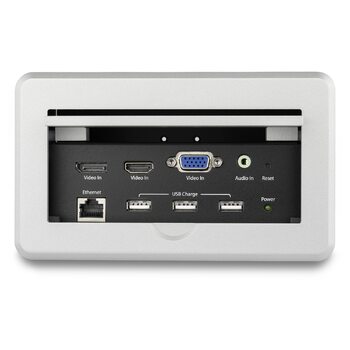

Connector A: VGA (15 pin, High Density D-Sub) Input Female : USB Type-A (4 pin) USB 2.0 Female : RJ-45 Female : HDMI (19 pin) Input Female : DisplayPort (20 pin) Input Female : 3.5 mm Mini-Jack (3 Position) Input Female

What's in the Box
Included in Package: die cut outline : mounting brackets : quick-start guide : universal power adapter (NA/JP, EU, UK, ANZ)

Model # BOX4HDECP2
Barcode # 065030867498
Brand STAR TECH
Shipping Weight 1.8000kg
Shipping Width 0.170m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.001700000m3
Type Cable Holders
