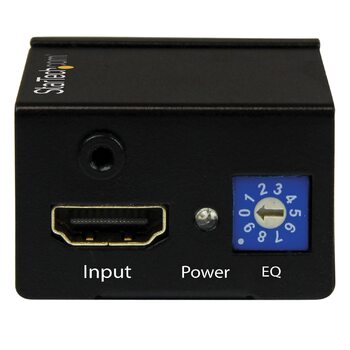

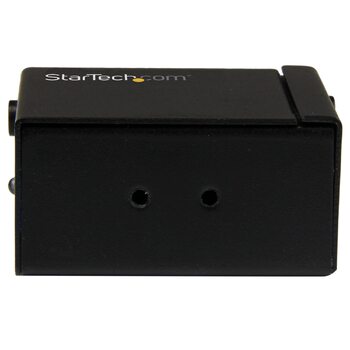

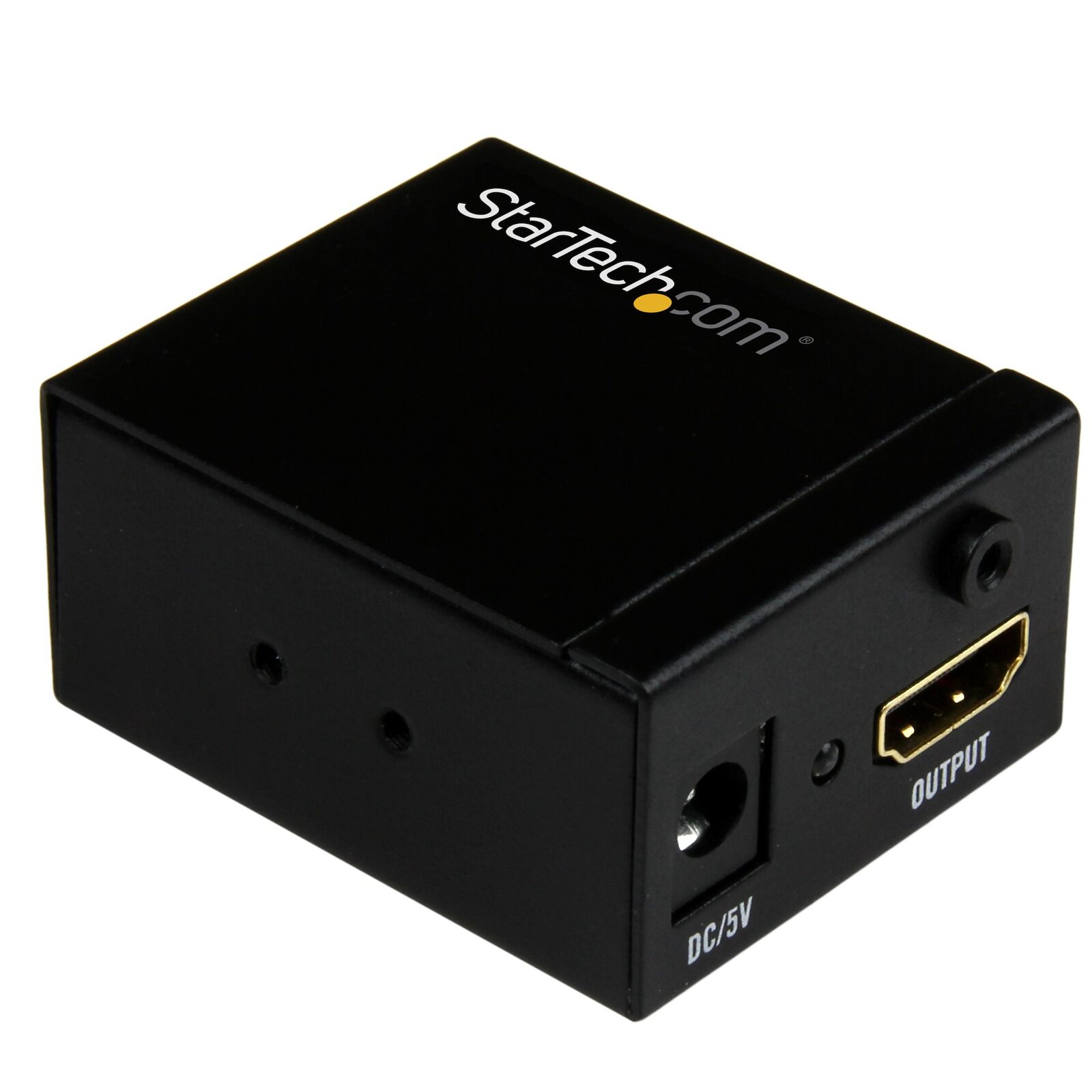

HDMI Signal Amplifier - HDMI Booster - 115 ft. - 1080p 60Hz

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

This HDMI signal booster lets you increase the signal strength of your HDMI video source so you can connect an HDMI display up to 115 ft. (35 m) away, using standard HDMI cables. You can place the booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output.

Discreet installation

With its small form factor, the HDMI booster is easy to hide, for a discreet installation. You don’t need an external power adapter to operate the signal booster, and it includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard HDMI cables, the HDMI booster is a cost-effective alternative to more expensive HDMI extension systems that require the installation of CAT5 or CAT6 cabling infrastructure.

Compatible with varying distances

The HDMI booster features an equalization switch with ten different levels. The equalization switch lets you adjust the amplification of your HDMI signal based on the distance of your cables, so that you can ensure your HDMI signal will be perfect even at distances up to 115 ft. (35 m). The booster is perfect for boardrooms, offices or classrooms that may require varying distances depending on the room size.

Maintains high-definition video signals

When extending HDMI over long distances using standard video cabling, higher resolutions can become unavailable. Using the HDMI signal booster ensures that you’ll still be able to depend on high-definition resolutions up to 1080p at 60Hz.

(HDBOOST)

Standard Consumer Warranty
You can place the booster inline betweentwo HDMI cables,up to 82ft

Packaging Information
Package Width: 17.3 cm [6.8 in]
Shipping (Package) Weight: 163 g [5.8 oz]

Performance
Audio Specifications: 7.1 surround Sound
Max Distance: 35 m / 115 ft
Maximum Cable Length: 35 m [114.8 ft]
Maximum Digital Resolutions: 1920 x 1080 at 60Hz
Supported Resolutions: 1920 x 1080, 1680 x 1050, 1600 x 900, 1440 x 900, 1360 x 768, 1280 x 800, 1280 x 768, 1280 × 720
Wide Screen Supported: Yes

Physical Characteristics
Material: Steel
Product Height: 2.6 cm [1 in]
Product Length: 54.2 mm [2.1 in]
Product Width: 42.2 mm [1.7 in]
Weight of Product: 74 g [2.6 oz]

Power
Center Tip Polarity: Positive
Input Voltage: 100 - 240 AC
Output Current: 1 A
Output Voltage: 5 DC
Plug Type: N
Power Source: Not Included (not required for standard applications)

Prominence
Description CDW 75 - 1st Line: StarTech.com HDMI Signal Booster - HDMI Extender Amplifier - 115 ft - 1080p

Special Notes / Requirements
System and Cable Requirements: The HDMI cable connected to your video source must be longer or equal to the length of the cable connected to your display. : The maximum supported display cable length is 33 ft. (10m). : The maximum supported video source cable length is 82 ft. (25m).

What's in the Box
Included in Package: HDMI signal booster : mounting brackets : mounting screws : screwdriver

Packaging Information
Package Length: 14.4 cm [5.7 in]
Package Height: 33 mm [1.3 in]

Indicators
LED Indicators: video source LED (blue) : power LED (blue)

Hardware
Rack-Mountable: Yes
Daisy-Chain: No
Cabling: HDMI
AV Output: HDMI
AV Input: HDMI
Audio: Yes

Environmental
Storage Temperature: -10°C to 80°C (14°F to 176°F)
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Humidity: 5% to 90%

Connector(s)
Connector B: HDMI (19 pin) Output Female
Connector A: HDMI (19 pin) Input Female

Model # HDBOOST
Barcode # 065030863209
Brand STAR TECH
Shipping Weight 0.1600kg
Shipping Width 0.140m
Shipping Height 0.030m
Shipping Length 0.170m
Shipping Cubic 0.000714000m3
Type HDMI Extender
