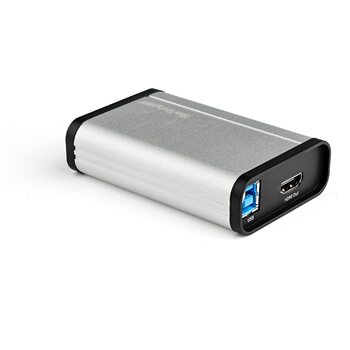

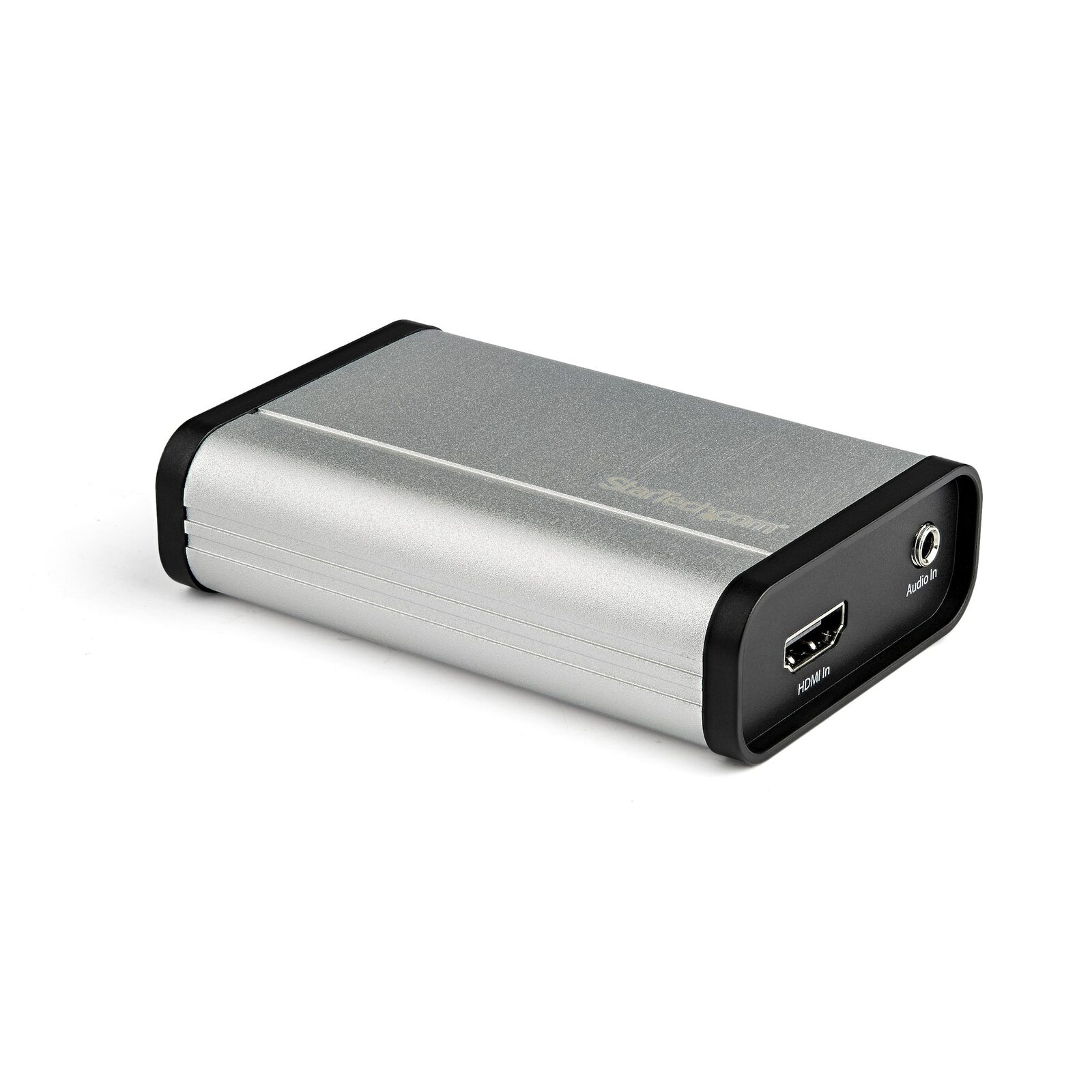

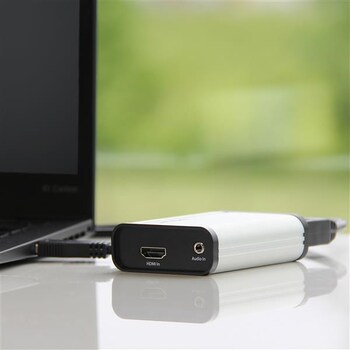

HDMI to USB C Video Capture Device - UVC - 1080p - 60fps

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

This HDMI® to USB-C™ video capture device lets you record HDMI video to your USB-C, USB-A or Thunderbolt™ 3 computer.

Easy Setup, Easy Capture

For hassle-free recording, you can install the HDMI capture device by simply connecting it to your computer. The capture device features USB Video Class (UVC), a video capture standard that’s natively supported by Mac, Windows® and Linux®. Unlike other capture devices that require proprietary driver installation, UVC based capture devices install automatically for a truly plug-and-play solution. Also, with this recorder you're not limited to the included software; you can use any third-party software that uses UVC compatible frameworks such as Quicktime or DirectShow®.

Capture HD Video

Record 1080p video at 60fps (frames per second) from your Windows PC, gaming console, camera (and more) so you can save, share or edit your content. Capture meetings, presentations, conference calls and security footage directly to your computer.

Stream Your 1080p Content

Stream video over the web using Twitch™ or other third-party streaming platforms. With the included software or third-party UVC compatible software like Open Broadcaster Software (OBS), you can live broadcast video over the internet using third-party video streaming platforms.

(UVCHDCAP)

Packaging Information
Shipping (Package) Weight: 392 g [13.8 oz]

Performance
Audio Specifications: 2-channel stereo audio
Maximum Digital Resolutions: 1920 x 1080 60 FPS
Supported Resolutions: 1920 x 1080, 1280 x 720, 1024 x 768, 800 x 600
Wide Screen Supported: Yes

Physical Characteristics
Color: Silver & Black
Product Height: 2.3 cm [0.9 in]
Product Length: 9.2 cm [3.6 in]
Product Width: 60 mm [2.4 in]
Weight of Product: 86 g [3 oz]

Prominence
Description CDW 75 - 1st Line: StarTech.com HDMI to USB C Video Capture Device - UVC 1080p 60fps Recorder

Software
OS Compatibility: Windows® 7, 8, 8.1, 10
macOS 10.11 to 10.15, 11.0
Linux 4.x (LTS Versions only)

Special Notes / Requirements
Note: A computer that supports USB 3.0 or higher is required. This product will not work with USB 2.0 or 1.1 controllers.

What's in the Box
Included in Package: capture device : HDMI cable (1m) : quick-start guide : USB-A to USB-B cable (1m) : USB-C to USB-B cable (1m)

Packaging Information
Package Width: 47 cm [18.5 in]
Package Length: 21.5 cm [8.5 in]
Package Height: 47 cm [18.5 in]

Hardware
Industry Standards: USB Video Class (UVC) : MPEG4 (H.264)
Chipset ID: Mstar - MST3363CNK-170
AV Output: USB
AV Input: HDMI
Audio: Yes

Environmental
Storage Temperature: -5°C to 40°C
Operating Temperature: 0°C to 40°C
Humidity: 20-80% RH Non-Condensing

Connector(s)

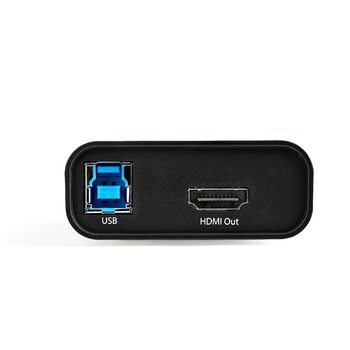

Connector B: USB Type-B (9 pin) USB 3.0 Female

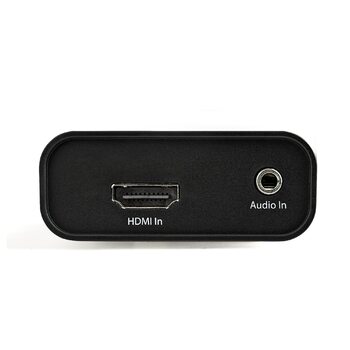

Connector A: HDMI (19 pin) Input Female : 3.5 mm Mini-Jack (3 Position) Input Female

Model # UVCHDCAP
Barcode # 065030876025
Brand STAR TECH
Shipping Weight 0.3900kg
Shipping Width 0.220m
Shipping Height 0.470m
Shipping Length 0.470m
Shipping Cubic 0.048598000m3
Type Video Capture
