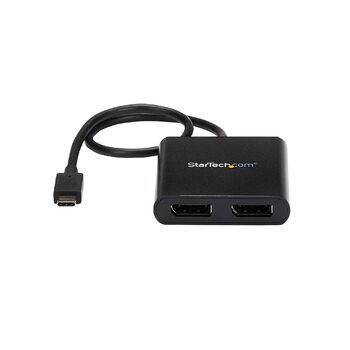

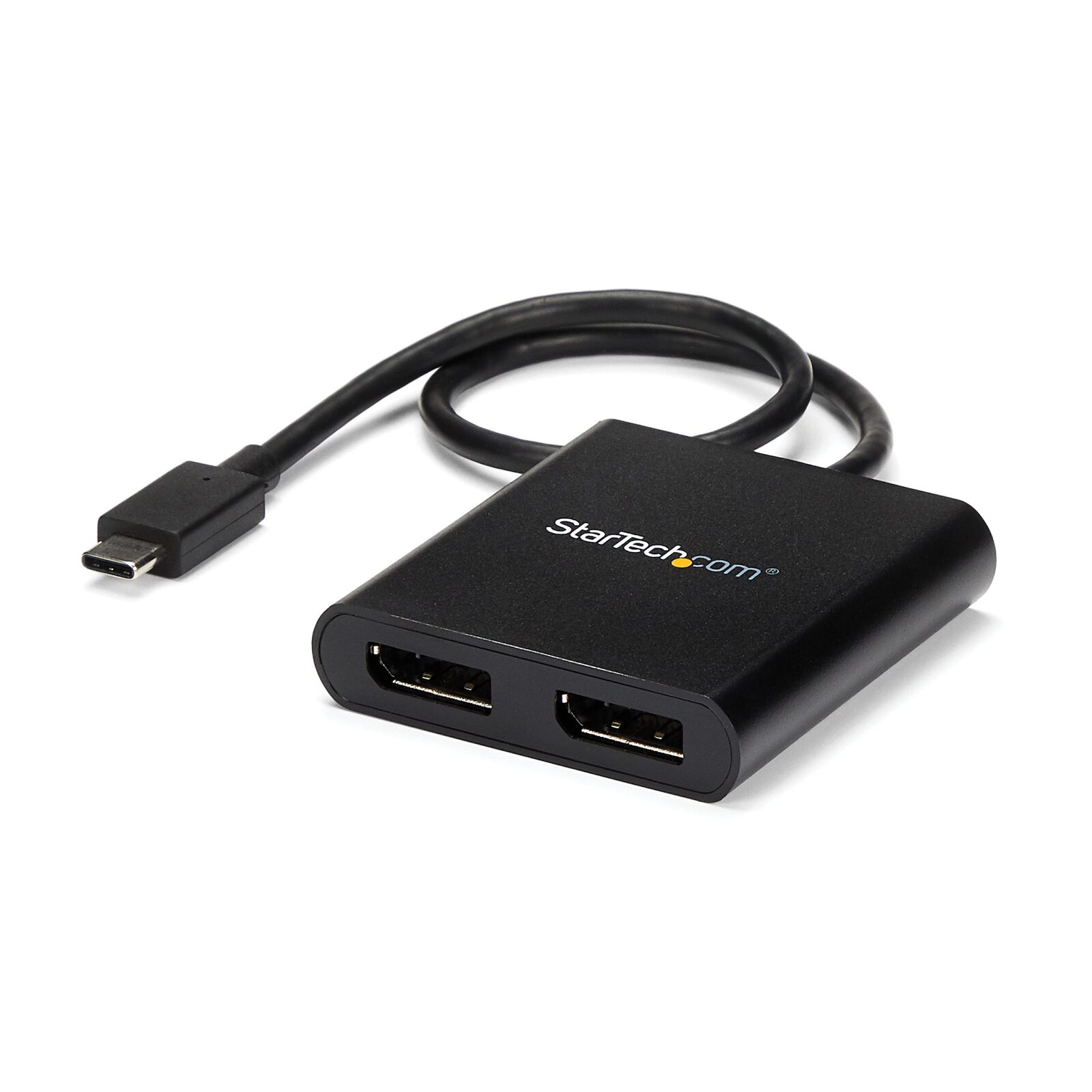

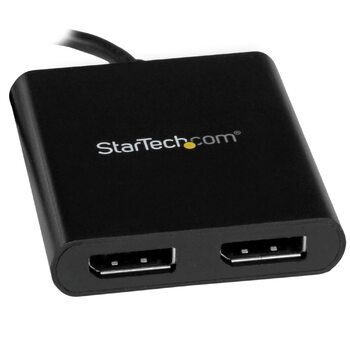

Star Tech 2-Port USB-C to DisplayPort MST Hub - Dual 4K Video Splitter

This USB-C to DisplayPort MST Hub lets you connect two DisplayPort monitors to your USB Type-C Windows device, conveniently helping you to maximize your productivity.

Multitasking Made Easy

With devices becoming more portable than ever, you can be limited to fewer video outputs and confined to your small integrated screen. This multi-stream transport hub solves that problem by enabling you to connect two separate displays to your USB-C computer, making multitasking much easier.

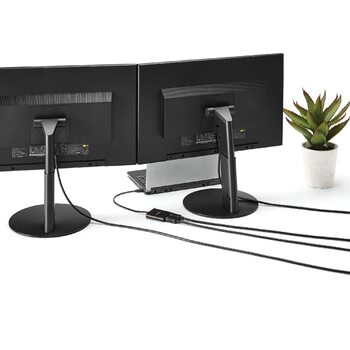

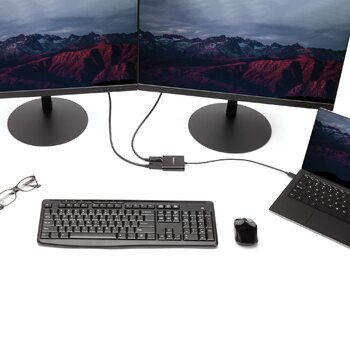

Using this USB-C to dual DisplayPort monitor adapter, you can mirror your display onto additional monitors or stream independent content to each display, which makes it the ideal accessory for travel or hot-desking.

Astonishing Picture Quality

MST technology uses your existing video card to minimize the use of system resources, while delivering UHD 4K resolutions for two monitors or displays simultaneously. With support for HD 1080p and UHD 4K, the dual-monitor splitter is perfect for all high-resolution applications such as graphic design and CAD drawing.

Hassle-Free Setup

Multi-stream transport offers an easy setup, by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C dual-monitor adapter is Thunderbolt 3 compatible, and offers plug-and-play installation with no drivers or software required. Additionally, this DP MST hub is powered by the USB-C port, meaning no external power cords are necessary.

(MSTCDP122DP)

This item comes with a 3 Years warranty

Performance
Maximum Cable Distance To Display: 2 m [6.6 ft]
Maximum Digital Resolutions: 3840x2160 @ 30hz
Supported Resolutions:

Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.

Average resolution bandwidth allocation

1920x1080 (High-definition 1080p) @60hz - 22%
1920x1200 @60hz - 30%
2560x1440 @60hz - 35%
2560x1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30hz - 38%

Note: Exceeding 100% will reduce functionality.


Wide Screen Supported: Yes



Physical Characteristics
Cable Length: 32.4 cm [12.8 in]
Color: Black
Product Height: 1.4 cm [0.6 in]
Product Length: 38.6 cm [15.2 in]
Product Width: 58 mm [2.3 in]
Weight of Product: 44 g [1.6 oz]

Power
Power Source: USB-Powered

Prominence
Description CDW 75 - 1st Line: StarTech.com 2-Port Multi Monitor Adapter - USB-C Dual DisplayPort MST Hub

Software
OS Compatibility: Microsoft Windows® 10, 8/8.1, 7

Special Notes / Requirements
Note: DisplayPort 1.2 with MST+HBR2 support from the GPU is required for independent display output : Your USB-C equipped device must support video (DP alt mode) to work with this adapter

What's in the Box
Included in Package: MST hub : quick-start guide

Performance
Audio Specifications: DisplayPort - 5.1 Channel Audio

Packaging Information
Shipping (Package) Weight: 0.1 kg [0.3 lb]
Package Width: 14.3 cm [5.6 in]
Package Length: 17.2 cm [6.8 in]
Package Height: 32 mm [1.3 in]

Hardware
Ports: 2
Chipset ID: MegaChips - STDP4320
VIA/VLI - VL100
AV Output: DisplayPort - 1.2
AV Input: USB-C
Audio: Yes

Environmental
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Temperature: 5°C to 35°C (41°F to 95°F)
Humidity: 50-90%

Connector(s)
Connector B: DisplayPort (20 pin) Output Female

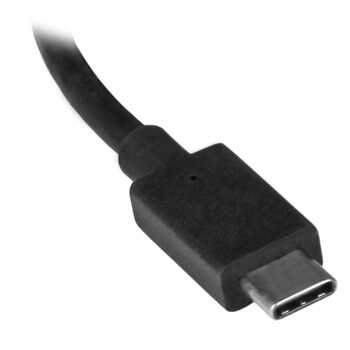

Connector A: USB-C (24 pin) DisplayPort Alt Mode Input Male

Model # MSTCDP122DP
Barcode # 065030864497
Brand STAR TECH
Shipping Weight 0.1300kg
Shipping Width 0.170m
Shipping Height 0.030m
Shipping Length 0.140m
Shipping Cubic 0.000714000m3
Type AV Adapter/Converter
