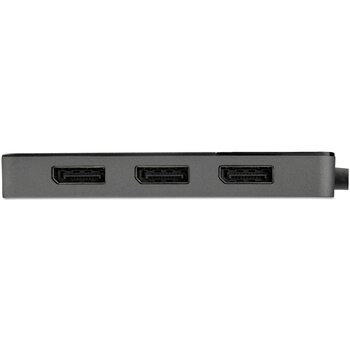

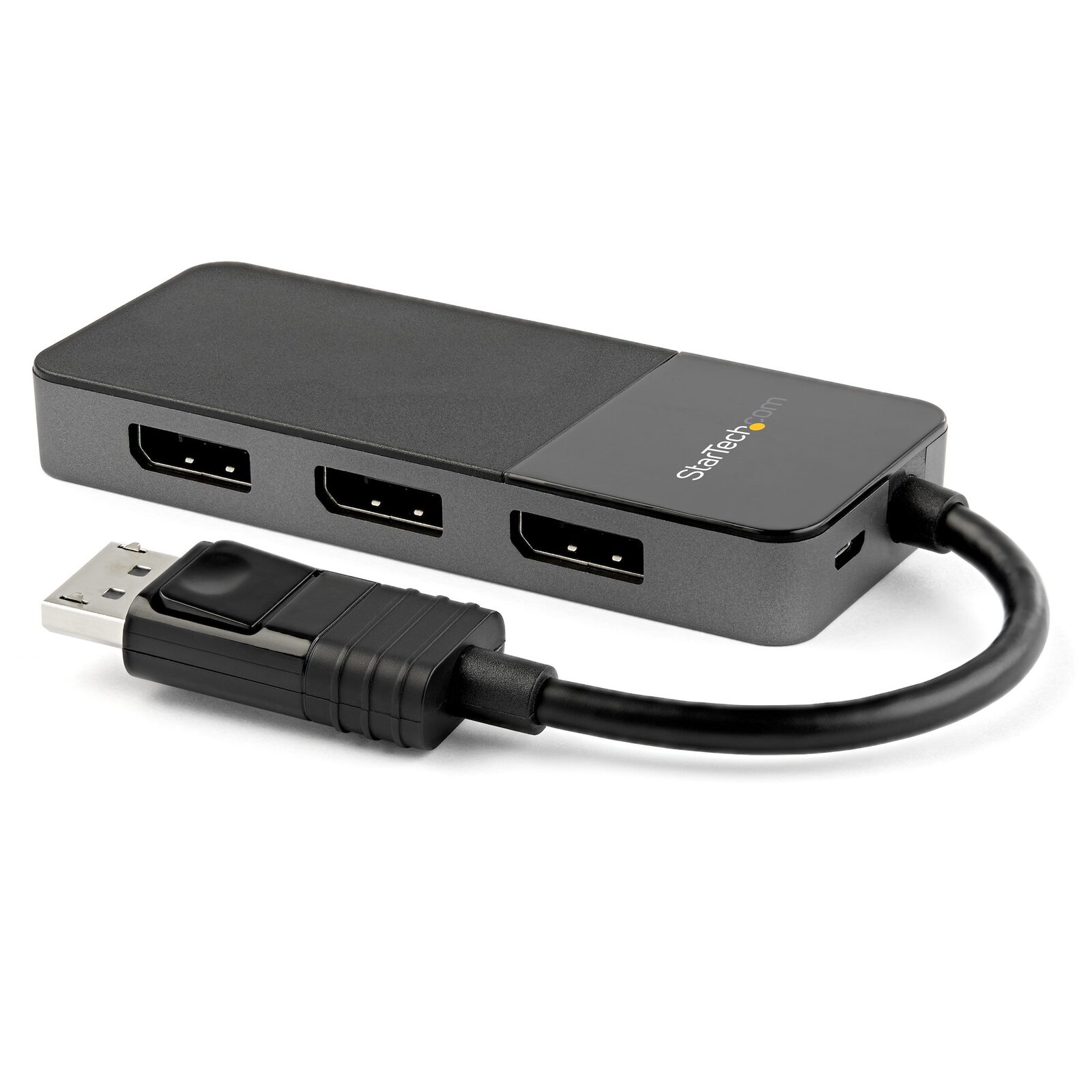

Star Tech 3 Port DisplayPort MST Hub - 3x4K - DP 1.4 Monitor Splitter

This 3-port DisplayPort MST hub lets you create a high-performance workstation by connecting three DisplayPort monitors to your DisplayPort device, helping to increase and maximize your productivity. The multi-monitor splitter supports High Dynamic Range (HDR) and provides sharper images with enhanced video.

Incredible Picture Quality

Supporting four times the resolution of 4K, this DP 1.4 MST hub delivers the stunning quality of UHD at resolutions up to 7680×4320 at 30Hz on a single monitor and supports multi-monitor applications at lower resolutions and refresh rates, enabling a dynamic work environment whether you’re in the office, at home or traveling.

Both your source and destination must support DisplayPort 1.4 in order to achieve maximum resolution (8K 30Hz).

Lower resolutions and refresh rates may also be supported.

Multi-Tasking Made Easy

This DisplayPort to 3x DisplayPort MST hub enables you to connect three displays to your DP computer, making multi-tasking much easier. Using this multi-monitor video splitter, you can mirror your display onto multiple monitors, stream independent content to each display or extend your screen to create a video wall effect.

Hassle-Free Setup

Multi-stream transport offers an easy setup, by natively working on any Windows device. It offers plug-and-play installation with no drivers or software required. Additionally, the DisplayPort MST hub is bus-powered (with the included micro-USB cable), creating an ultra-portable solution for business and IT professionals.

(MST14DP123DP)

This item comes with a 3 Years warranty

Performance
Audio Specifications: DisplayPort - 7.1 Channel Audio
Maximum Cable Distance To Display: 2 m [6.6 ft]
Supported Resolutions: DisplayPort: 7680x4320 (8K) / 30Hz
Video Revision: DisplayPort 1.4
Wide Screen Supported: Yes

Physical Characteristics
Color: Black
Material: Plastic
Product Height: 1.4 cm [0.6 in]
Product Length: 4.3 cm [1.7 in]
Product Width: 10.5 cm [4.1 in]
Weight of Product: 55 g [1.9 oz]

Power
Power Source: USB-Powered

Prominence
Description CDW 75 - 1st Line: StarTech.com 3-Port Multi Monitor Adapter - DisplayPort 1.4 to 3 DP MST Hub

Software
OS Compatibility: Windows 10 (32/64)
Windows 8/8.1 (32/64)
Windows 7(32/64)

What's in the Box
Included in Package: DisplayPort MST Hub : Micro-USB Power Cable

Packaging Information
Shipping (Package) Weight: 132 g [4.7 oz]
Package Width: 14.2 cm [5.6 in]
Package Length: 17 cm [6.7 in]
Package Height: 3 cm [1.2 in]

Hardware
Ports: 3
Chipset ID: Synaptics VMM5330
AV Output: DisplayPort - 1.4
AV Input: DisplayPort - 1.4
Audio: Yes
Active or Passive Adapter: Active

Environmental
Storage Temperature: -20°C to 80°C (-4°F to 176°F)
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
Humidity: 5% to 90 % RH (no condensation)

Connector(s)
Connector B: DisplayPort (20 pin) Female Output Female
Connector A: DisplayPort (20 pin) Input Male Latching

Model # MST14DP123DP
Barcode # 065030884051
Brand STAR TECH
Shipping Weight 0.1300kg
Shipping Width 0.170m
Shipping Height 0.030m
Shipping Length 0.140m
Shipping Cubic 0.000714000m3
Type AV Adapter/Converter
