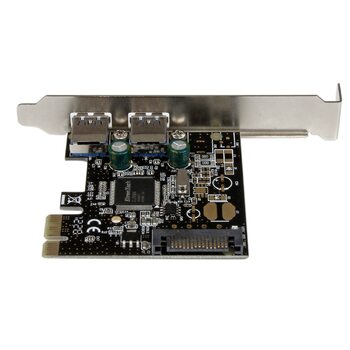

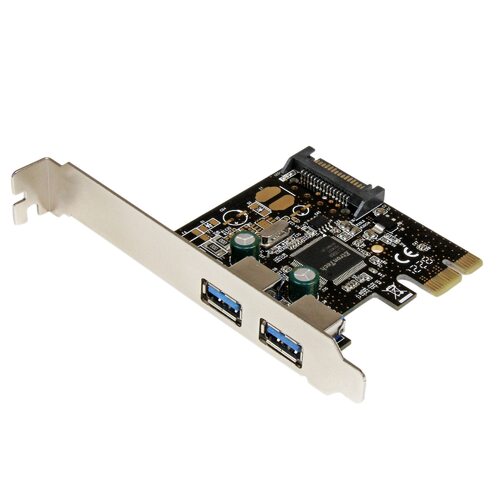

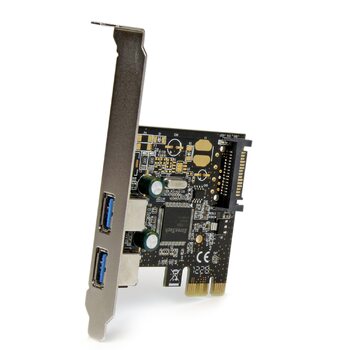

Star Tech 2Port 5 Gbps USB 3.0 PCI Express Adapter Card
or 4 payments of $11.00 with Learn more
The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector.
Reviews
Be The First To Review This Product!
Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.
Star Tech 2Port 5 Gbps USB 3.0 PCI Express Adapter Card
The PEXUSB3S23 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to any PCI Express-enabled computer system. The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector.
The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
(PEXUSB3S23)
This item comes with a 2 Years warranty
Packaging Information
Shipping (Package) Weight : 130 g [4.6 oz]
Performance
Maximum Cable Length : 3 m [9.8 ft]
Type and Rate : USB 3.0 - 5 Gbit/s
UASP Support : No
Physical Characteristics
Material : Steel
Product Height : 12 cm [4.7 in]
Product Length : 80 mm [3.1 in]
Product Width : 21 mm [0.8 in]
Weight of Product : 43 g [1.5 oz]
Software
OS Compatibility : Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Special Notes / Requirements
System and Cable Requirements : Available 15-pin SATA power connector
Available PCI Express slot
What's in the Box
Included in Package : Driver CD
Instruction Manual
Low Profile Bracket
PCI Express USB 3.0 card
Packaging Information
Package Width : 14.5 cm [5.7 in]
Package Length : 17 cm [6.7 in]
Package Height : 32 mm [1.3 in]
Hardware
Ports : 2
Port Style : Integrated on Card
Interface : USB 3.0
Chipset ID : Etron - EJ168A
Card Type : Standard Profile (LP bracket incl.)
Bus Type : PCI Express
Environmental
Storage Temperature : 0°C to 80°C (32°F to 176°F)
Operating Temperature : 0°C to 60°C (32°F to 140°F)
Humidity : 10~90% RH, Non-condensing
Connector(s)
Internal Ports : SATA Power (15 pin) Plug
External Ports : USB Type-A (9 pin) USB 3.0 (5 Gbps) Female
Connector Type(s) : PCI Express x1 Male
Model # | PEXUSB3S23 |
Barcode # | 065030851633 |
Brand | STAR TECH |
Shipping Weight | 0.1300kg |
Shipping Width | 0.170m |
Shipping Height | 0.030m |
Shipping Length | 0.150m |
Shipping Cubic | 0.000789000m3 |
Type | USB Card Adapter |
