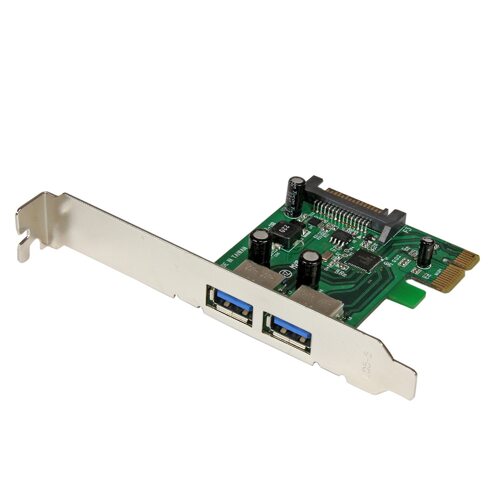

Star Tech Dual Port 5Gbps USB 3 PCIe Controller Card w/ UASP

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Star Tech Dual Port 5Gbps USB 3 PCIe Controller Card w/ UASP

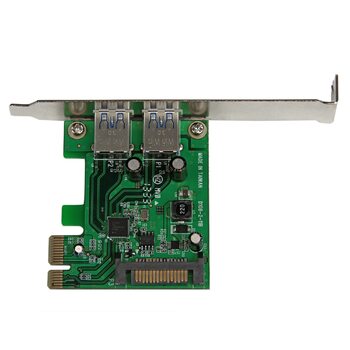

The PEXUSB3S24 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to your PCI Express-enabled computer system, with an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0).

Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP is not supported by all operating systems). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

(PEXUSB3S24)

This item comes with a 2 Years warranty

Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers

Packaging Information
Package Width  : 17.4 cm [6.9 in]
Shipping (Package) Weight  : 130 g [4.6 oz]

Performance
Maximum Cable Length  : 3 m [9.8 ft]
Maximum Data Transfer Rate  : 5 Gbps
Type and Rate  : USB 3.0 - 5 Gbit/s
UASP Support  : Yes

Physical Characteristics
Material  : Steel
Product Height  : 12 cm [4.7 in]
Product Length  : 65 mm [2.6 in]
Product Width  : 18 mm [0.7 in]
Weight of Product  : 40 g [1.4 oz]

Software
OS Compatibility  : Windows® Vista, 7, 8, 8.1, 10
Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019
Linux 2.6.31 to 4.11.x LTS versions only

Special Notes / Requirements
Note  : The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.
System and Cable Requirements  : Available PCI Express slot

What's in the Box
Included in Package  : Driver CD
Instruction Manual
Low Profile Bracket
PCI Express USB 3.0 Card

Packaging Information
Package Length  : 14.5 cm [5.7 in]
Package Height  : 32 mm [1.3 in]

Hardware
Ports  : 2
Port Style  : Integrated on Card
Interface  : USB 3.0
Industry Standards  : USB 3.0 Specification Rev. 1.0
PCI Express Base Specification Rev. 2.0
Intel xHCI Specification Rev. 1.0
Chipset ID  : Renesas/NEC - µPD720202
Card Type  : Standard Profile (LP bracket incl.)
Bus Type  : PCI Express

Environmental
Storage Temperature  : -25°C to 70°C (-13°F to 158°F)
Operating Temperature  : 5°C to 50°C (41°F to 122°F)
Humidity  : 20-80% RH

Connector(s)
Internal Ports  : SATA Power (15 pin) Plug
External Ports  : USB Type-A (9 pin) USB 3.0 (5 Gbps) Female
Connector Type(s)  : PCI Express x1 Male

Model # PEXUSB3S24
Barcode # 065030855587
Brand STAR TECH
Shipping Weight 0.1300kg
Shipping Width 0.150m
Shipping Height 0.030m
Shipping Length 0.170m
Shipping Cubic 0.000807000m3
Type USB Card Adapter
