Star Tech 3Port M.2 NGFF SSD Card Adapter - PCI Express 3.0 M.2 Card

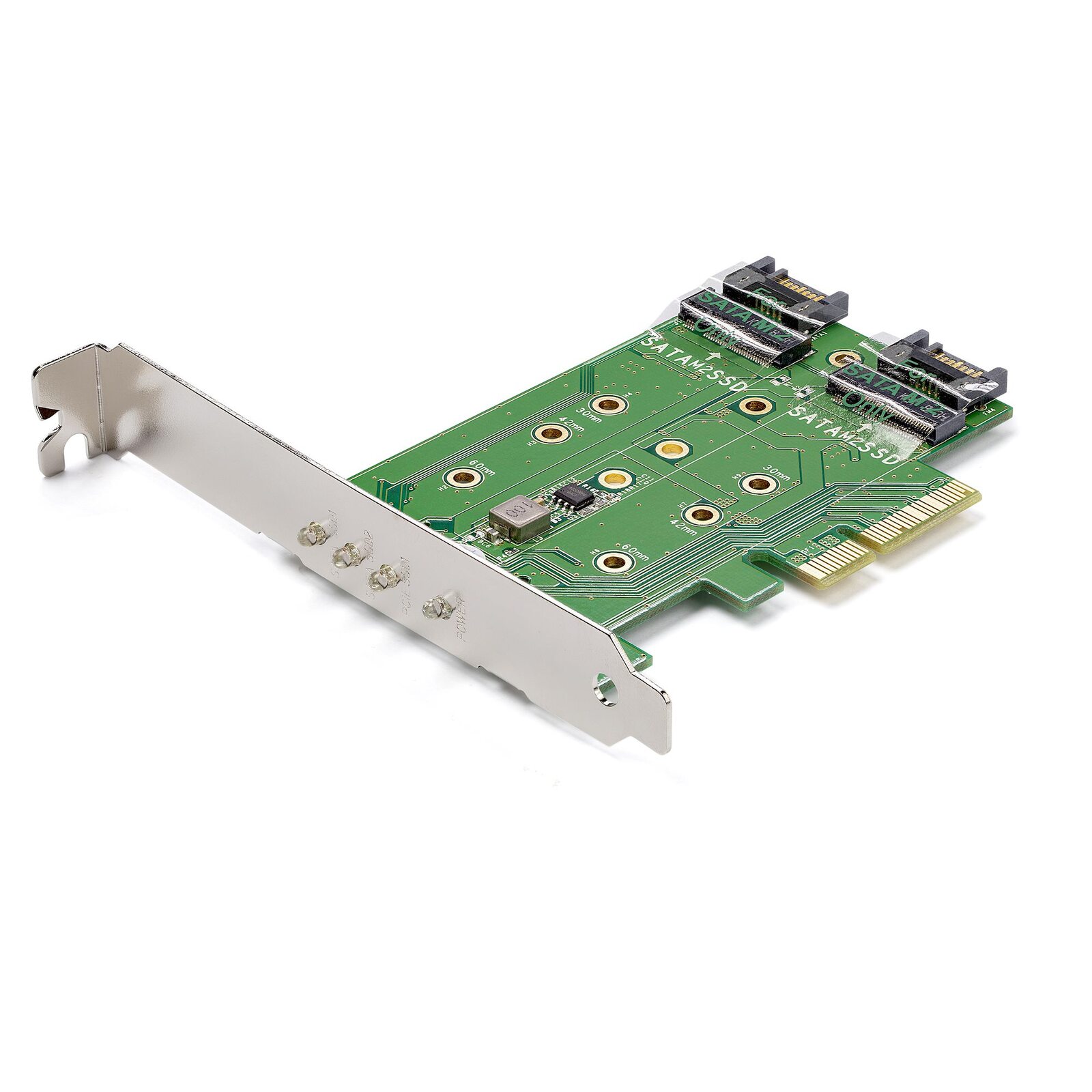

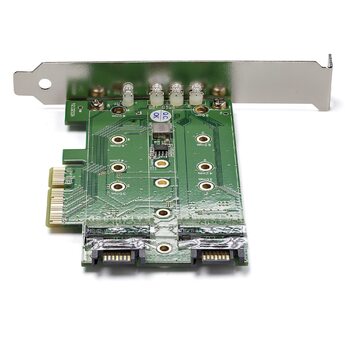

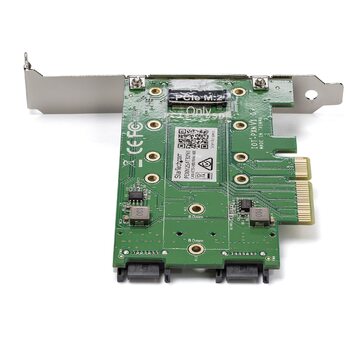

This 3-port M.2 SSD adapter card is one of the only cards that supports both PCIe and SATA-based M.2 SSDs (solid-state drives). It’s a versatile way to expand the overall storage capacity of your desktop PC or server. Plus, because it supports a high-speed PCIe M.2 drive, you can increase the speed and performance of your computer.

Increase the storage of your desktop PC

If you need a simple and discreet way to expand your computer’s storage, then this card can help. The card provides a platform for adding up to three M.2 SSDs to virtually any computer that has a PCIe slot. It supports common M.2 SATA SSDs, as well as newer high-performance M.2 PCIe drives. Now, you have a simple and effective way to expand the storage of your computer, regardless of the M.2 drive types you are using.

Optimize your computer’s performance

When you couple this card with a PCI Express based M.2 drive, you can give your computer’s performance a noticeable speed boost. With support for PCI Express 3.0 (up to approximately 40Gbps), you can install the latest high-performance M.2 PCIe SSDs inside your computer. With faster performance, you can get more work done in less time.

Peace of mind, with simple and cost-effective data recovery

Due to their performance and size advantages, M.2 drives are commonly used in laptops. If your laptop has failed, but its M.2 drive is still functional, then this card can help with data recovery. Once the M.2 drive is installed and the data recovery is complete, you can continue to use the drive for storage and backup purposes.

Leverage the size and speed of M.2 drives

This M.2 card lets you take advantage of the size and performance benefits of NGFF M.2 SSDs. M.2 drives are smaller than typical platter drives or mSATA-based SSDs, so you can install them in small form-factor PCs and servers, or in tighter areas within your computer case.

Supports a wide range of drives

You can rest assured that your M.2 SSDs are compatible with the adapter card. It supports the most common drive sizes, including, 2280, 2260, 2242 and 2230.

(PEXM2SAT32N1)

This item comes with a 2 Years warranty

Plus, because it supports a high-speed PCIe M.2 drive, you can increase the speed and performance of your computer.

Hardware
Ports  : 3

Indicators
LED Indicators  : M.2 drive status/activity
Power

Packaging Information
Package Height  : 32 mm [1.3 in]
Package Length  : 13 cm [5.1 in]
Package Width  : 16.2 cm [6.4 in]
Shipping (Package) Weight  : 127 g [4.5 oz]

Performance
ATAPI Support  : Yes
Bootable  : Yes
Hardware Raid Supported  : No
MTBF  : 50,000 Hours
Port Multiplier  : No
Type and Rate  : SATA III (6 Gbps)

Physical Characteristics
Material  : Steel
Product Height  : 12 cm [4.7 in]
Product Length  : 12 cm [4.7 in]
Product Width  : 20 mm [0.8 in]
Weight of Product  : 65 g [2.3 oz]

Software
OS Compatibility  : OS Independent; No additional drivers or software required

Note: When installed in a compatible operating system, the card is natively supported and doesn’t require any additional drivers or software. However, your operating system must natively support PCIe SSDs (NVMe - Non-Volatile Memory Express).

Special Notes / Requirements
Note  : The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5Gbps per lane.
System and Cable Requirements  : A computer enabled with PCI Express (PCIe), and an available PCI Express x4, x8, or x16 slot
An operating system that natively supports PCIe SSDs (NVMe), such as:
- Windows® 8 and later
- Mac OS 10.10.3 and later
One or two SATA host ports on the host computer (for example, the SATA controller card, or the motherboard SATA ports inside of your computer)

What's in the Box
Included in Package  : 3-port M.2 NGFF SSD adapter card
low-profile bracket
M.2 mounting nuts
M.2 mounting screws
M.2 mounting standoffs
quick-start guide
screwdriver

Hardware
Port Style  : Integrated on Card
Interface  : SATA
M.2 SATA
M.2 PCIe
Industry Standards  : Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
PCI Express 3.0
Card Type  : Standard Profile (LP bracket incl.)
Bus Type  : PCI Express

Environmental
Storage Temperature  : -25°C to 70°C (-13°F to 158°F)
Operating Temperature  : 5°C to 50°C (41°F to 122°F)
Humidity  : 20%~80% RH (Non-condensing)

Connector(s)
Internal Ports  : SATA (7 pin, Data) Plug
M.2 (SATA, B-Key, NGFF) Receptacle
M.2 (PCIe, M-Key, AHCI/NVMe, NGFF)
Connector Type(s)  : PCI Express x4 Male

Model # PEXM2SAT32N1
Barcode # 065030865708
Brand STAR TECH
Shipping Weight 0.1300kg
Shipping Width 0.130m
Shipping Height 0.030m
Shipping Length 0.160m
Shipping Cubic 0.000674000m3
Type Adapter Card
