Star Tech PCI Express SATA RAID Card
or 4 payments of $49.50 with Learn more
Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives
Reviews
Be The First To Review This Product!
Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.
Star Tech PCI Express SATA RAID Card

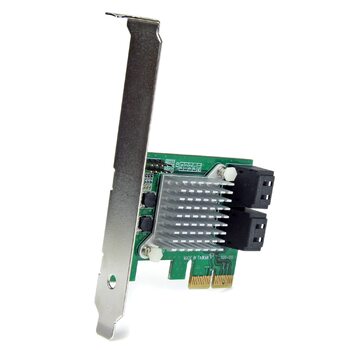

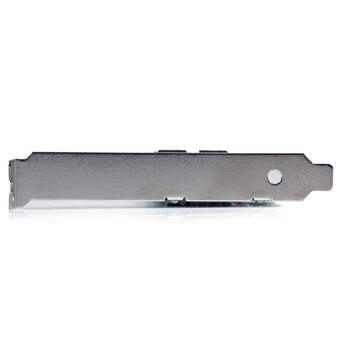

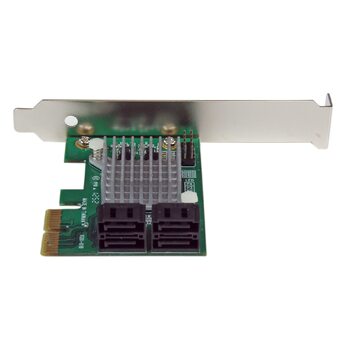

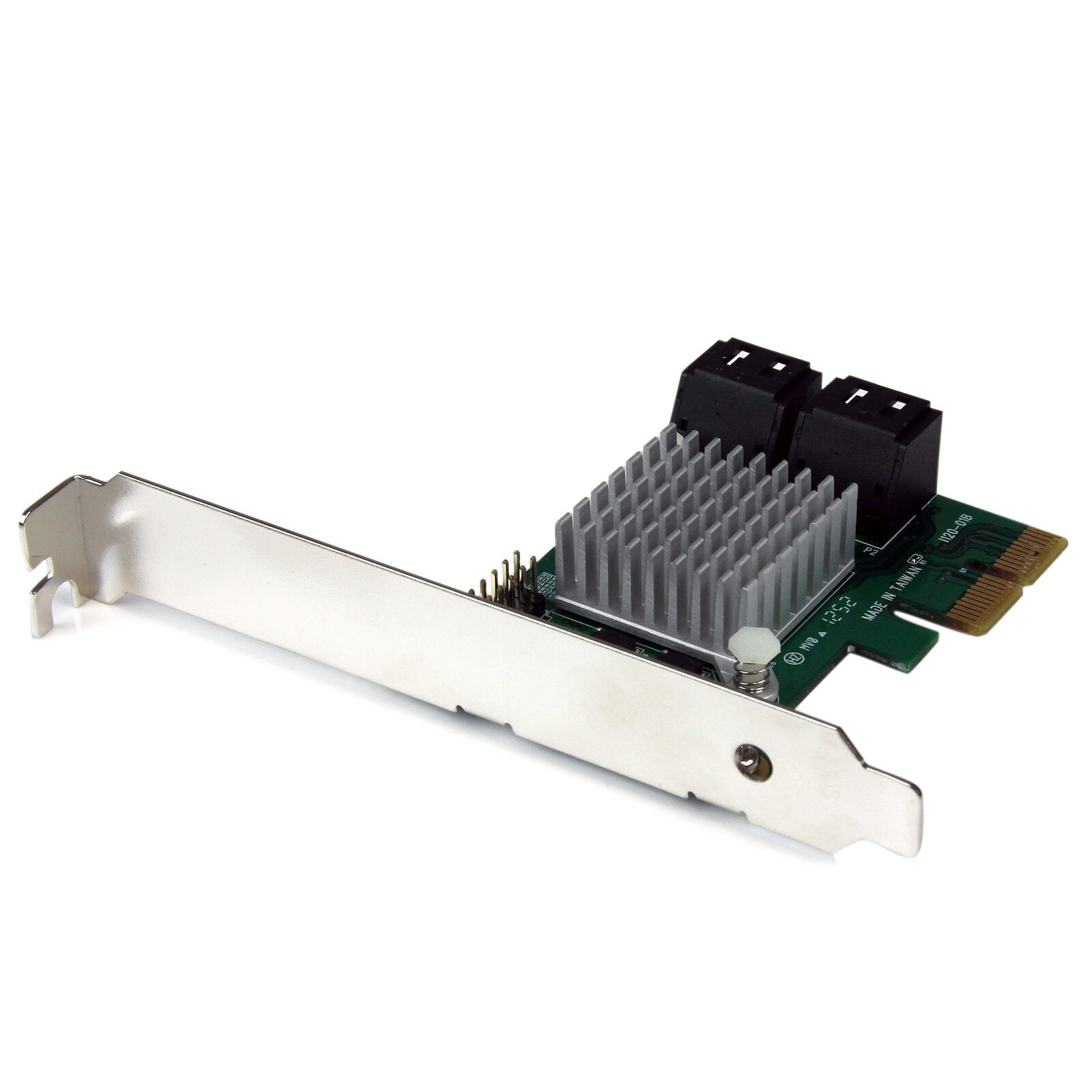

The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).
Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)
The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.
Throughput Benchmark
Drive configuration Throughput Drive size
1 x HDD 112.81 MB/s 2 TB
1 x SSD 490.28 MB/S 120 GB
1 x HDD + 1 x SSD HyperDuo (Safe Mode) 489.28 MB/s 2 TB
1 x HDD + 2 x SSD HyperDuo (Safe Mode) 715.13 MB/s 2 TB
Drives Used:
SSD: OCZ Vertex 3 Series 2.5” 120 GB (VTX3-25SAT3-120G)
HDD: Western Digital Caviar Green 3.5” 2 TB (WD20EARS)
Software Used:
IO Meter, 256KB Sequential Read, queue depth = 10
(PEXSAT34RH)
This item comes with a 2 Years warranty
Packaging Information The Marvell Storage Utility application requires macOS 10.9 to 10.14. The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps per lane. Only one port can use the Port Multiplier feature at a time. Supports up to 4 drives connected via Port Multiplier, 7 drives total. Port Multiplier not supported in Mac OS. Note: Connected drives cannot be used as System / Primary drive in Windows Server 2012, 2012 R2, 2016
Package Quantity : 1
Package Width : 14.5 cm [5.7 in]
Shipping (Package) Weight : 141 g [5 oz]
Performance
ATAPI Support : Yes
Bootable : Yes
Hardware Raid Supported : Yes
Hot Swap Capability : Yes
LBA support : 48-bit
Max Drive Capacity : Currently tested up to 4TB per drive
Number of Drives Supported Through Port Multiplier : 1 to 4
Number of Ports That Support Port Multiplier : 4 (can only use 1 PM at a time)
Port Multiplier : Yes
Supported RAID Modes : JBOD - (Just a Bunch of Disks)
RAID 0 (Striped Disks)
RAID 1 (Mirrored Disks)
RAID 10 (1+0, Striped set of Mirrored Subset)
Type and Rate : SATA III (6 Gbps)
Physical Characteristics
Material : Steel
Product Height : 2 cm [0.8 in]
Product Length : 70 mm [2.8 in]
Product Width : 12 cm [4.7 in]
Weight of Product : 49 g [1.7 oz]
Prominence
Description CDW 75 - 1st Line : StarTech.com 4 Port PCIe SATA III Controller Card w/ HyperDuo SSD Tiering
Software
OS Compatibility : Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
Mac OS® 10.6 to 10.14
Linux 3.5.x to 4.11.x LTS versions only
Special Notes / Requirements
Note :
System and Cable Requirements : Available PCI Express x2 slot (backward compatible with x4, x8, and x16 slots)
What's in the Box
Included in Package : Driver CD
Instruction Manual
Low Profile Bracket
PCIe SATA Controller Card
Packaging Information
Package Length : 17.5 cm [6.9 in]
Package Height : 32 mm [1.3 in]
Hardware
Ports : 4
Port Style : Integrated on Card
Interface : SATA
Industry Standards : Serial ATA 3.0 specification
PCI Express 2.0
Chipset ID : Marvell - 88SE9230
Card Type : Standard Profile (LP bracket incl.)
Bus Type : PCI Express
Environmental
Storage Temperature : -25°C ~ 70°C (-13°F ~ 158°F)
Operating Temperature : 5°C ~ 50°C (41°F ~ 122°F)
Humidity : 20% ~ 80% RH
Connector(s)
Internal Ports : SATA (7 pin, Data) Plug
Connector Type(s) : PCI Express x2 Male
Model # | PEXSAT34RH |
Barcode # | 065030849951 |
Brand | STAR TECH |
Shipping Weight | 0.1400kg |
Shipping Width | 0.180m |
Shipping Height | 0.030m |
Shipping Length | 0.150m |
Shipping Cubic | 0.000812000m3 |
Type | Adapter Card |
