Star Tech Triple-4K Monitor USB-C Dock - Windows / Mac - 60W USB PD

This TAA compliant 4K USB-C™ dock for Mac and Windows® laptops takes productivity to a whole new level, with support for triple 4K monitors - a first in the market. The USB Type-C dock provides 60W charging power, and 5x USB 3.0 ports to connect your peripheral devices. It’s the perfect accessory for your Dell™ XPS 15, Chromebook Pixel™, or another USB-C enabled PC laptop.

The dock also connects to USB 3.0 laptops with a USB-A port (using a USB-C to A cable such as the USB315AC1M, sold separately).

Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity

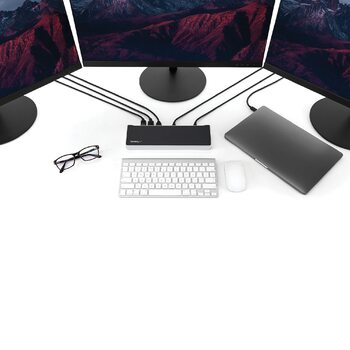

The 4K USB-C Dock for Mac and Windows lets you create a three-monitor Ultra HD workstation. Connect:

2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution / 3840 x 2160 @ 60Hz and
1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, the universal laptop docking station can also connect to a 5K display (5120 x 2880 resolution) at 60Hz, by connecting the two DisplayPort ports to a single 5K display.

Powerful Connections

This triple-monitor docking station lets you connect your peripherals to transform your laptop into a full-sized workstation. With five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl 1x Fast-Charge port), a Gigabit Ethernet port, headset jack and separate 3.5 mm audio and microphone ports, you have all the connections you need for maximum performance.

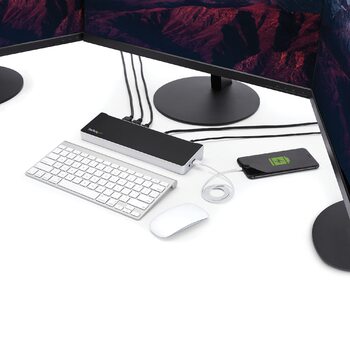

60W Power Delivery

Using a single cable, the USB-C docking station with Power Delivery (up to 60W) will power and charge your laptop, and power your peripherals with its 120W power adapter.

(DK30CH2DPPD)

This item comes with a 3 Years warranty

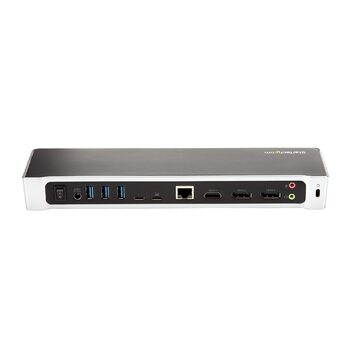

Connector(s)
Connector Type(s): 3.5 mm Mini-Jack (3 Position) Female : 3.5 mm Mini-Jack (4 Position) Female: DisplayPort (20 pin) Female : HDMI (19 pin) Female : RJ-45 Female : Security Lock Slot Female : USB 3.0 A (Fast-Charge, 9 pin) Female : USB Type-A (9 pin) USB 3.0 (5 Gbps) Female : USB Type-C (24 pin) USB 3.0 (5Gbps) Female

Environmental
Humidity: 0~95% RH
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)

Hardware
4K Support: Yes
Bus Type: USB-C
Chipset ID: DisplayLink - DL-6950
Genesys Logic - GL3523
Texas Instruments - TPS65982
Parade Technologies - PS176
Displays Supported: 3

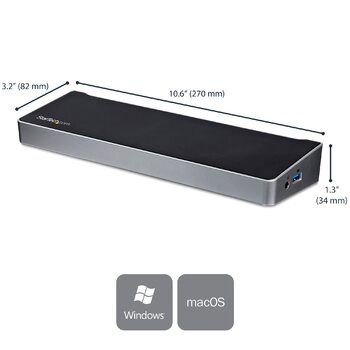

Physical Characteristics
Product Height: 3.4 cm [1.3 in]
Product Length: 27 cm [10.6 in]
Product Width: 82 mm [3.2 in]
Weight of Product: 385 g [13.6 oz]

Power
Center Tip Polarity: Positive
Input Current: 2 A
Input Voltage: 100 - 240 AC
Output Current: 6 A
Output Voltage: 20V DC
Plug Type: N
Power Delivery: 60W
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com 4K USB-C Dock - Triple Monitor - Mac & Windows - 60W USB PD

Software
OS Compatibility: Windows® 7, 8, 8.1, 10
macOS 10.9 - 10.12, 10.14 - 10.15, 11.0
Ubuntu 18.04, 20.04
Chrome OS™ v55+

Special Notes / Requirements
Note: 4K resolution is supported on all 3 video ports. A 4K-capable DisplayPort display is required to achieve 4Kx2K resolutions : 5K resolution is supported by connecting the two DisplayPort video ports to a single 5K display. A 5K-capable display is required to achieve 5K (5120 x 2880 60Hz) resolutions : DisplayLink docking stations and video adapters support more than one external display on Apple's M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup. : If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included) : Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode. : The dock connects to the USB-C port on your laptop. The dock can also be connected to the USB-A port on laptops using a USB-C to A cable, sold separately, but only dual display is supported, and Power Delivery to charge your laptop is not available through USB-A : USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
System and Cable Requirements: USB-C enabled computer with an available USB Type-C port

What's in the Box
Included in Package: add anti-slip rubber pads : docking station : instruction manual : universal power adapter (NA/JP, ANZ) : USB-C cable

Physical Characteristics
Material: Plastic
Color: Black & Silver

Performance
UASP Support: Yes
Type and Rate: USB 3.0 - 5 Gbit/s
Maximum Digital Resolutions: 1x HDMI (DP Alt Mode) - 4096 x 2160p @24Hz / 3840 x 2160p @30Hz
2x DisplayPort (DisplayLink) - 4096 x 2160p @60Hz / 3840 x 2160p @60Hz

1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz

Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.

Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Full Duplex Support: Yes
Compatible Networks: 10/100/1000 Mbps
Auto MDIX: Yes

Packaging Information
Shipping (Package) Weight: 1.4 kg [3.1 lb]
Package Width: 16.1 cm [6.3 in]
Package Length: 29.6 cm [11.7 in]
Package Height: 71 mm [2.8 in]

Hardware
Industry Standards: USB Power Delivery Specification Rev. 2.0
USB Battery Charging Specification Rev. 1.2
DisplayPort 1.2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Fast-Charge Port(s): Yes

Model # DK30CH2DPPD
Barcode # 065030867672
Brand STAR TECH
Shipping Weight 1.4000kg
Shipping Width 0.300m
Shipping Height 0.070m
Shipping Length 0.160m
Shipping Cubic 0.003360000m3
Type Docking Station
