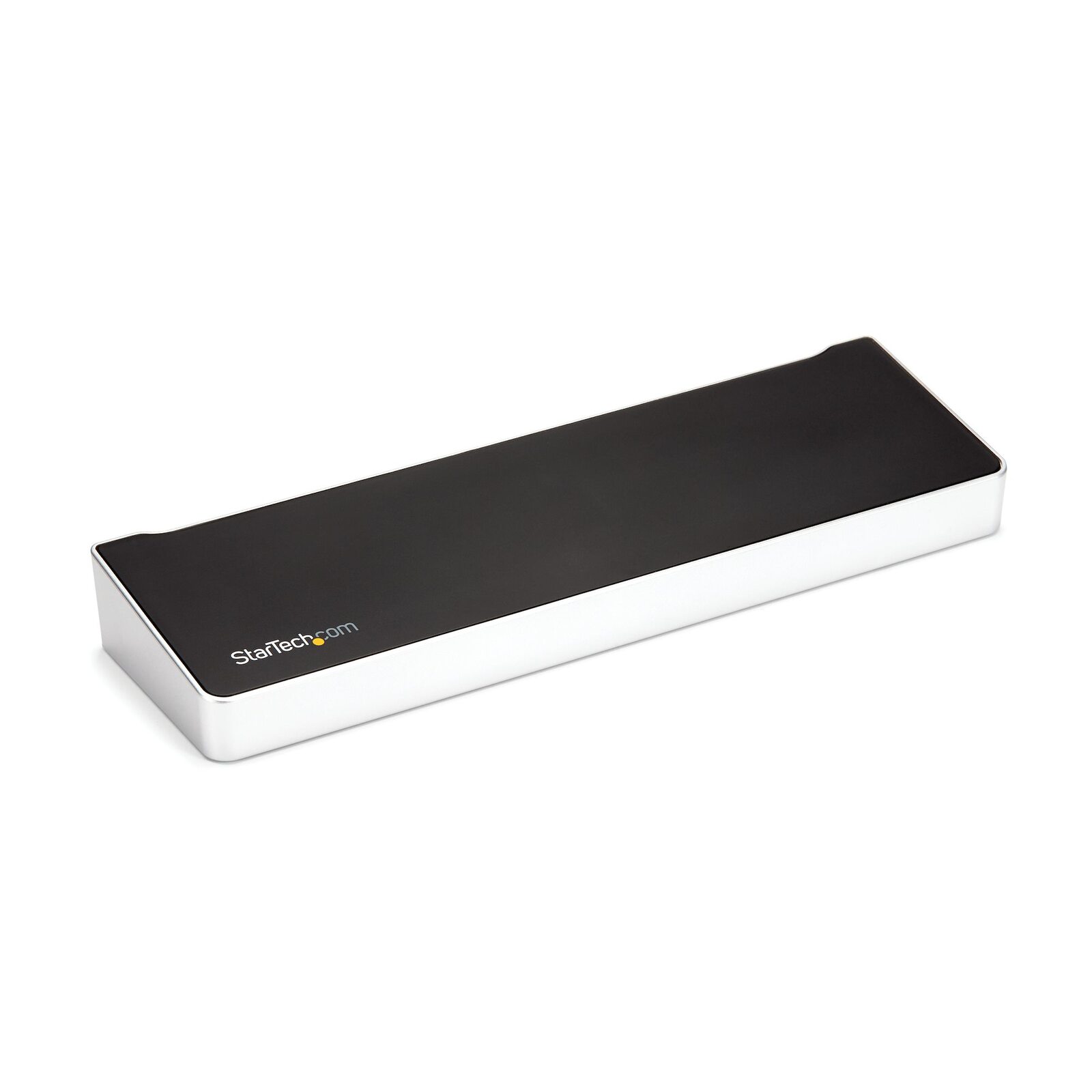

Star Tech Triple-Monitor 4K USB-C Dock with 5x USB 3.0 Ports

This triple-4K dock for Mac, Windows and Chrome USB-C laptops helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports.

You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity

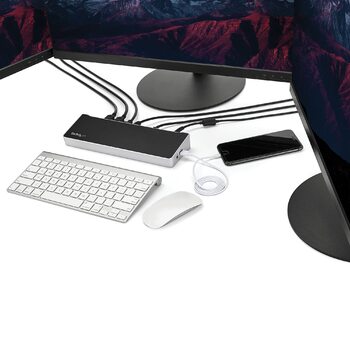

The 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect:

  • 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and
  • 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports.

100W Power Delivery

Using a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter.

Powerful Connections

This triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports.

Connected Device Transparency with the StarTech.com MAC Address Changer Utility

The DK30CH2DEP, includes a free Windows® application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer’s MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly.

(DK30CH2DEP)

This item comes with a 3 Years warranty

Hardware
Displays Supported: 3
Fast-Charge Port(s): Yes
Industry Standards: USB Power Delivery Specification Rev. 2.0
USB Battery Charging Specification Rev. 1.2
DisplayPort 1.2
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1

Packaging Information
Package Height: 80 mm [3.1 in]
Package Length: 32 cm [12.6 in]
Package Width: 16 cm [6.3 in]
Shipping (Package) Weight: 1654 g [58.4 oz]

Performance
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 1x HDMI (DP Alt Mode) - 4096 x 2160p @24Hz / 3840 x 2160p @30Hz
2x DisplayPort (DisplayLink) - 4096 x 2160p @60Hz / 3840 x 2160p @60Hz

1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz

Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.

Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes

Physical Characteristics
Color: Black & Silver
Material: Plastic
Product Height: 3.4 cm [1.3 in]
Product Length: 27 cm [10.6 in]
Product Width: 82 mm [3.2 in]
Weight of Product: 382 g [13.5 oz]

Power
Center Tip Polarity: Positive
Input Current: 2.5 A
Input Voltage: 100 - 240 AC
Output Current: 7.5 A
Output Voltage: 20V DC
Plug Type: N
Power Delivery: 100W
Power Source: AC Adapter Included

Prominence
Description CDW 75 - 1st Line: StarTech.com USB-C Dock 4K Triple Monitor DisplayPort/HDMI 100W PD, USB Hub

Software
OS Compatibility: Windows® 7, 8, 8.1, 10
macOS 10.9 - 10.12, 10.14 - 10.15, 11.0
Ubuntu 18.04, 20.04
Chrome OS™ v55+

Special Notes / Requirements
Note: 4K resolution is supported on all 3 video ports. A 4K-capable display is required to achieve 4Kx2K resolution : 5K resolution is supported by connecting the two DisplayPort video ports to a single 5K display. A 5K-capable display is required to achieve 5K (5120 x 2880 60Hz) resolutions : DisplayLink docking stations and video adapters support more than one external display on Apple's M1-based Mac. Requires driver installation. Please contact StarTech.com support for a recommendation based on your specific setup.

Hardware
Chipset ID: DisplayLink - DL-6950
Genesys Logic - GL3523
Genesys Logic - GL3523S
Texas Instruments - TPS65982
Parade Technologies - PS176
Bus Type: USB-C
4K Support: Yes

Environmental
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Humidity: 0~70% RH

Connector(s)
Connector Type(s): USB Type-C (24 pin) USB 3.0 (5Gbps) Female: USB Type-A (9 pin) USB 3.0 (5 Gbps) Female : USB 3.0 A (Fast-Charge, 9 pin) Female : Security Lock Slot Female : RJ-45 Female : HDMI (19 pin) Female : DisplayPort (20 pin) Female : 3.5 mm Mini-Jack (4 Position) Female: 3.5 mm Mini-Jack (3 Position) Female

Special Notes / Requirements
Note: If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included) : Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode. : The dock connects to the USB-C port on your laptop. The dock can also be connected to the USB-A port on laptops using a USB-C to A cable, sold separately, but only dual display is supported, and Power Delivery to charge your laptop is not available through USB-A : USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
System and Cable Requirements: USB-C enabled computer with an available USB Type-C port

What's in the Box
Included in Package: Anti-Slip Rubber Pads : Docking Station : Universal Power Adapter (NA/JP, ANZ) : USB-C Cable : User Manual

Model # DK30CH2DEP
Barcode # 065030879996
Brand STAR TECH
Shipping Weight 1.6500kg
Shipping Width 0.320m
Shipping Height 0.080m
Shipping Length 0.160m
Shipping Cubic 0.004096000m3
Type Docking Station
