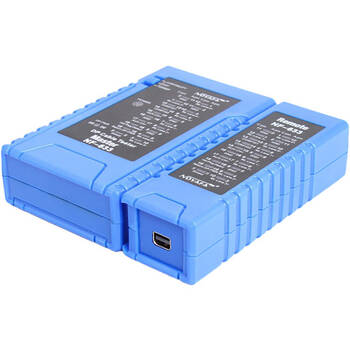

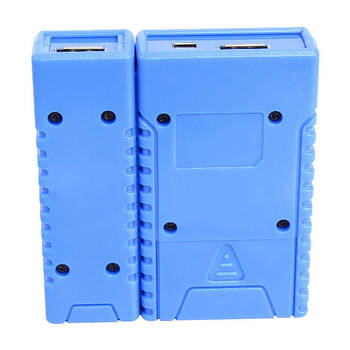

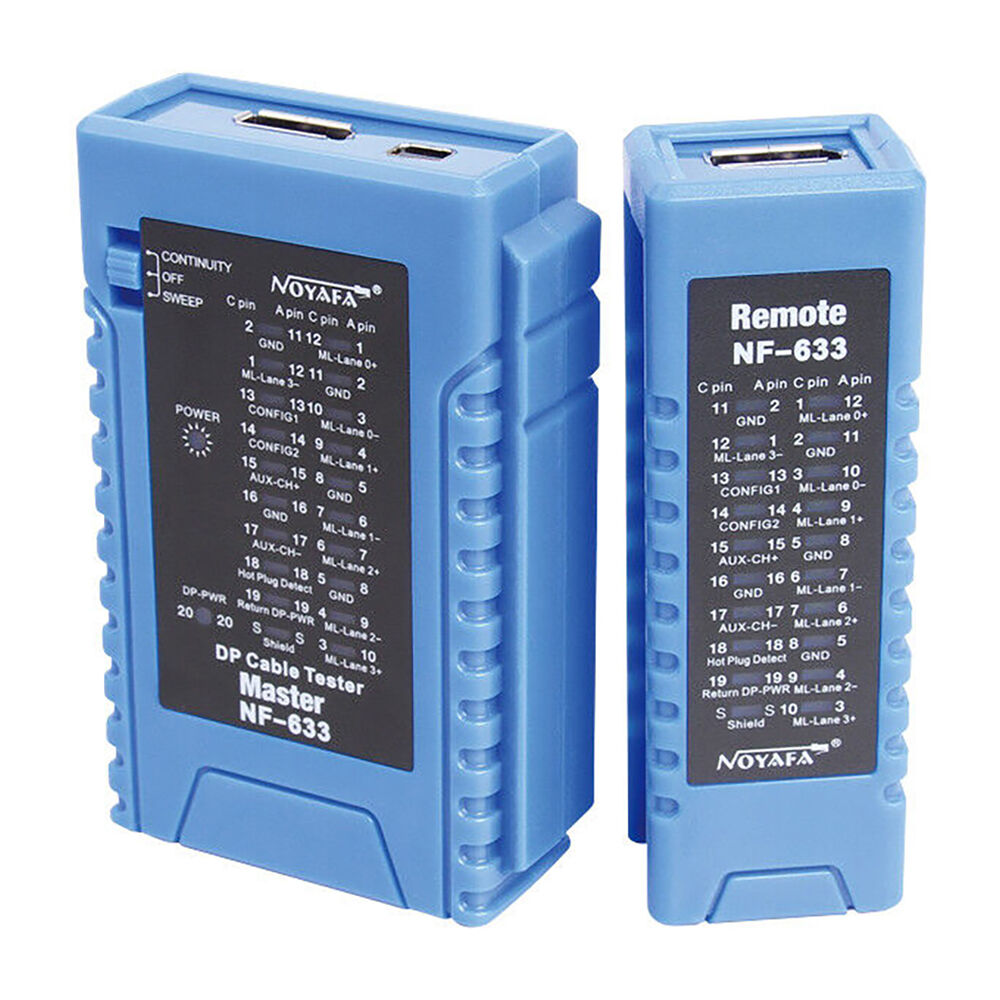

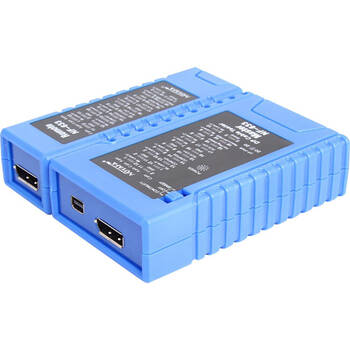

Doss NF-633 Cable Tester w/ Mini Display Port Testing Portable Device Blue

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Doss NF-633 Cable Tester w/ Mini Display Port Testing Portable Device Blue

The Doss NF-633 display port cable tester tests 20 internal wires individually and gives a clear reading of display port cable condition.

Specifications

cables versions support		1) Display Port Cable 2) Mini Display Port Cable 3) Display Port to Mini Display Port Cable
support test		1th ~19th pin to pin wire map and shield detection, and 20th detection.
Test interface of master unit		Display Port 1 Mini Display Port 1
Test interface of remote unit		Display Port 1 Mini Display Port 1
Test mode		Sweep and Continuity
Max test distance		15 metres
Status Display		19 LEDs and Shield Led on both Master and Remote Unit
		20th LED only on Mater Unit
Beeper indication		Yes
Low battery indication		6.0V
Power source		DC 9V (NEAD 1604/ 6F22) x1 (not included)
Environment		Operating: 0° to 40° < 80% RH
		Storage: -10° to 50° < 70% RH
Dimensions		Master unit: 103x66x27mm
		Remote unit: 103x35x27mm

Includes:
1 x Cable Tester

(44365122)

12 Months
