Doss NF300 Network Coax Cable Tester Portable For RJ45/RJ11/USB/BNC Black

Be The First To Review This Product!

Help other KG Electronic Pty Ltd users shop smarter by writing reviews for products you have purchased.

Write a product review

Doss NF300 Network Coax Cable Tester Portable For RJ45/RJ11/USB/BNC Black

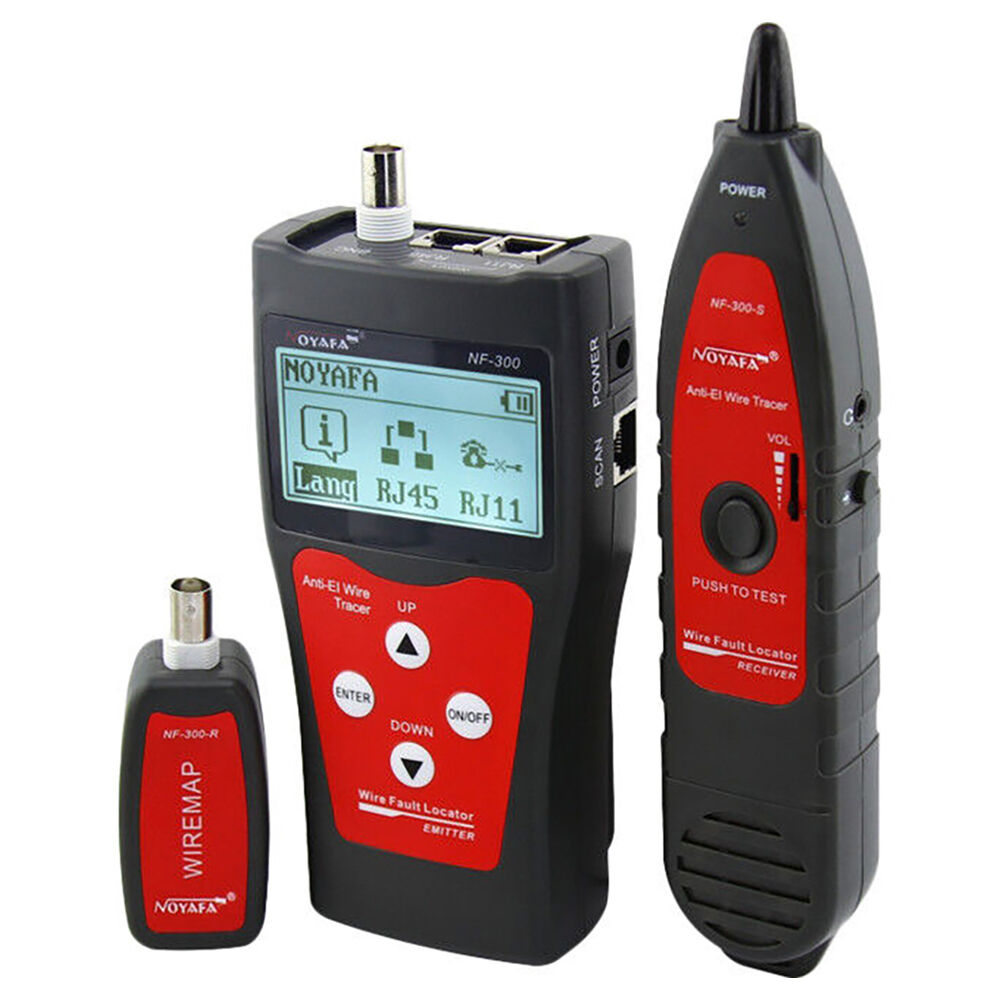

Doss NF-300 is a multifunction network coax cable tester. Itincludes remote wire map and tone tracer. It also features aporting flashing function for cable identifying on switch.

Features

  • Enables cables to be located even when totally concealed
  • Memory and storage function
  • LCD Screen shows test result clearly
  • RJ45, RJ11, USB and BNC cable testing
  • Port flashing function
  • Cable length testing
  • Cable fault testing
  • Headphone jack on tone tracer
  • LCD screen
  • Voltage protection

Specifications

NF-300 Transmitter specifications
LCD screen 53x25mm
Tone frequency 225kHz
Trace cable coonected to switch Anti-jamming
Tone mode 2 Tones, adjustable
Compatible with connectors RJ11,RJ45,BNC,USB
Cable map indication Pin #1- #8
Shielded indication # G
Voltage protection AC 60V/DC 42V
Low battery display LCD (6.5V)
Battery type DC9.0V(NEDA 1604/6F22 DC9V) x 1pc
Dimensions (LxWxD) 185x80x32mm
NF-300 Receiver specifications
Frequency 225kHz
The Max. working current Less than 70mA
Battery type DC9.0V(NEDA 1604/6F22 DC9V) x 1pc
Dimensions (LxWxD) 218x46x29mm
NF-300 Remote unit specifications
Compatible with connectors RJ45,BNC
Dimensions (LxWxD) 107x30x24mm

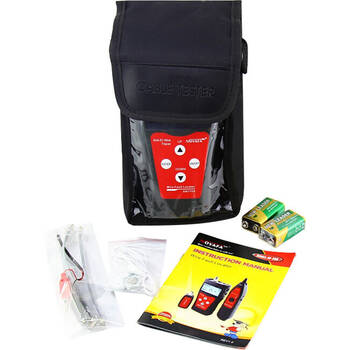

Accessories Included:

earphone x 1 set
telephone line adapter x 1 set
network cable adapter x 1 set
Cable clips x 1 set

Includes:
1 x Cable Tester

(47650012)

12 Months

Model # 47650012
Barcode # 9328202001962
Brand DOSS
Shipping Weight 0.5300kg
Shipping Width 0.170m
Shipping Height 0.050m
Shipping Length 0.120m
Shipping Cubic 0.001020000m3
Type Computer Cable Tester
