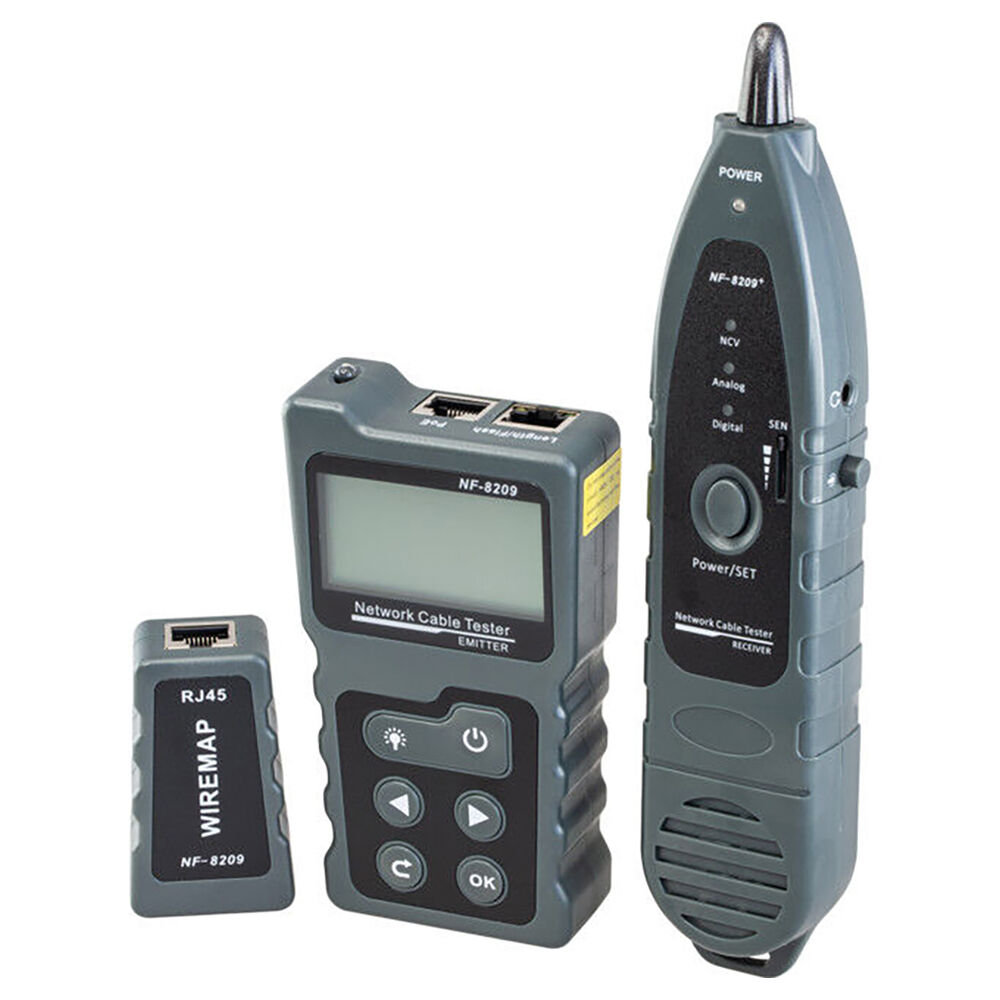

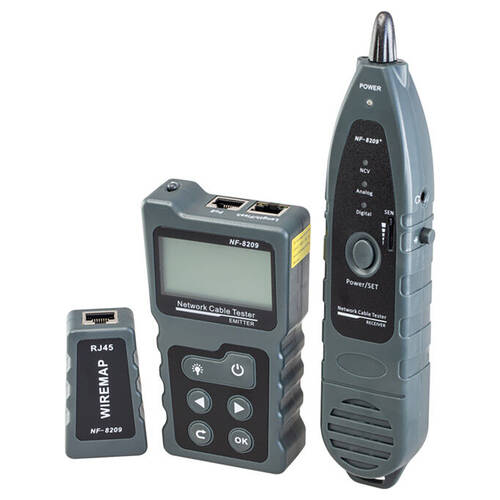

Doss NF8209 Multifunction Cable Tester For CAT5e/CAT6/STP/UTP/LAN Black

Features

POE information testing: Identifying which pins are providing power and detect how much voltage, and which type of the PSE (at/af standard) from DC range 5V to 60V standard or non-standard POE switch.
Featured with the new generation to offer AC filter and analog signaling all in one network toner and probe, there are three cable scan options to track cable like Digital mode analog mode and PoE mode, which means it’s equipped with the most powerful cable location technologies for any work environment.
Cable continuity testing. Test physical status forCat5e/Cat6, Cat6a STP, UTP LAN cable such as open, short or cross.
Measure cable length and locate fault distance for LANcable from the range up to 200m.
Hub blink, Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M Hub/ switch.
NCV, Non-Contact Voltage, Detect AC voltage presence 50V-1000V.
Lamp

Transmitter	Wiremap	Cable type	CAT5e, CAT6, CAT6a (STP & UTP)
		Test with switch directly	Yes
		Max range	600m
	Length	Cable type	CAT5e, CAT6, CAT6a (STP & UTP)
		Test range	2~200m
		Accuracy	±1.6m
		Breakage location	Yes
	Scan	Cable type	CAT5e, CAT6, CAT6a (STP & UTP)
		Max. signal voltage	8Vp-p
		Frequency	130KHz
		AC filter	Yes
		Max range	600m
	POE	Test range	DC 5~60V standard / non-standard PoE switch
		Voltage display	Yes
		PSE type	IEE?E 802.3af/at
	LCD display		128*64 Dot-matrix with backlight
	Power supply		AAA*3
	Low battary warning		2.7V
	Auto-off time		15min?30min?60min?OFF
	Max working current		<150mA
Receiver	Sentivity adjustable		Yes
	AC Voltage detecting		Yes
	Lamp		Yes
	Battary type		9V*1
	Low battary warning		6± 0.5V
	Max working current		<100mA
Remote	Wiremap Port		RJ45

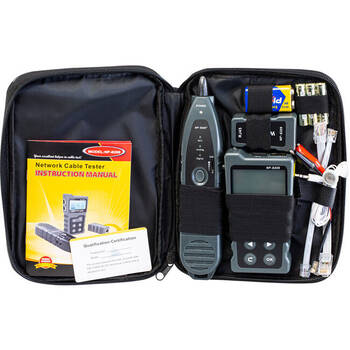

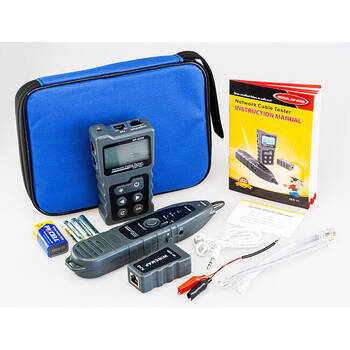

Includes:
1 x Cable Tester

(44365151)

12 Months
