Doss HDMI Cable Tester Portable Device For Wire Circuit/HDMI/Type A-C Red
The HDMI Cable Tester is designed for the HDMI installations. This portable device allows installers to quickly test, troubleshoot and verify HDMI cables. It is designed to test wire circuit state of HDMI cables with TypeA & C connectors conforming to all HDMI specifications up to version 2.0. Equipped with 2 test modes: fast and slowscan, to identify the cable short, open and crossed status.
The main differences between NF622 and NF611:
- There is no loopback HDMI A socket on the NF611, so all the HDMI tests require to use of the master unit and remote unit.
- There are no Pass/Open/Cross/Short led lights on the master unit of NF611.
Features
- Fast and accurate verification with type A-A, A-C, C-A and C-C connectors
- Test fragile, easily damaged HDMI patch cords and in-wall HDMI cables
- Quickly troubleshoot and verify HDTV installation and DIY termination in the field
- Test disorder, short, open and cross status of HDMI cables
- Mapping continuity and proper configuration

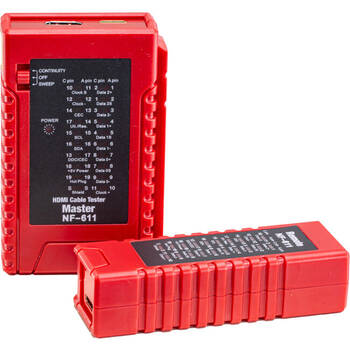

- 19 pins and grounded connection with the leds on both main and remote unit
- Adjustable test modes: Continuity and sweep modes
- Supplied with small carry bag
Specifications
Cable Tested | HDMI cables with Type A & C connectors conforming to 1.1, 1.2, 1.2a, 1.3, 1.3a, 1.3b, 1.3c, 1.4, 1.4a Category 1 and Category 2 cables |
Support test (main unit and remote unit) | 19 pin-to-pin wire map and shielding detection |

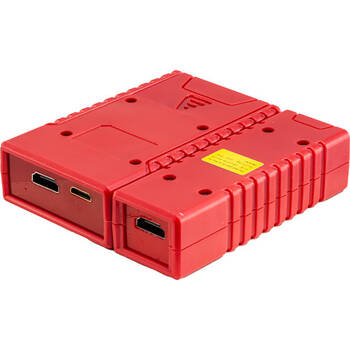

Test interface of Master unit | HDMI (type A) Mini HDMI (type C) |
Test interface of Remote unit | HDMI (type A) Mini HDMI (type C) |
Test Cable length | ≤ 50 metres |
Test Mode | Automatically fast scan Automatically slow scan/sweep |

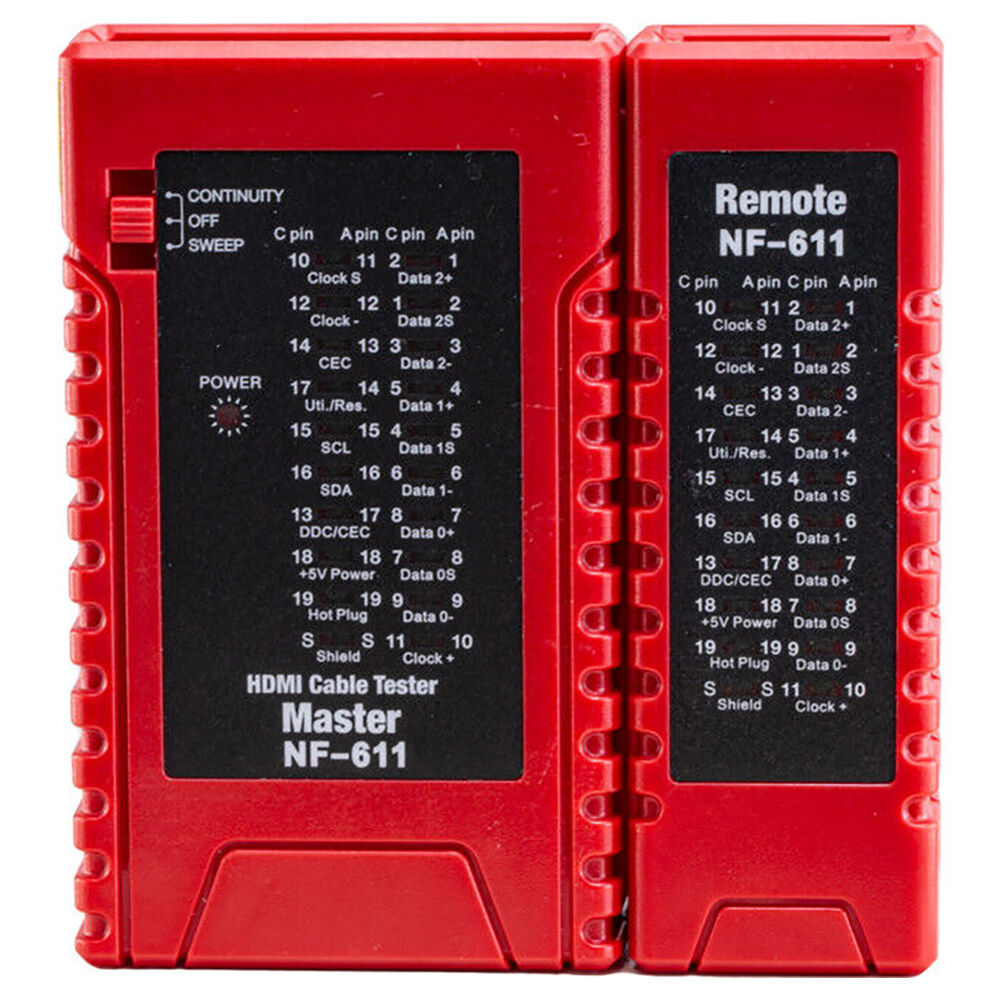

Displays | 19 LEDs and shield LED on both main and remote unit |
Result indication | Beep sound |
Low battery indication | Under 6V |
Power source | 9V battery (included) |
Operating temperature | 0 to 40°C <80% RH |
Storage temperature | -10 to 50 °C < 70% RH |
Dimensions main unit | 103*66*27mm |
Dimensions remote unit | 103*35*27mm |

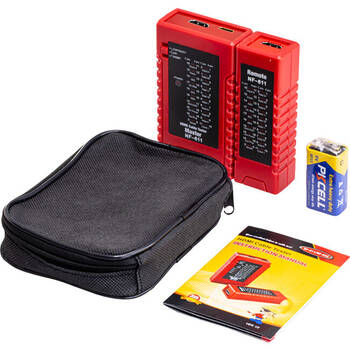

Includes:
1 x Cable Tester
(44365119)
12 Months
Model # | 44365119 |
Barcode # | 9328202033598 |
Brand | DOSS |
Shipping Weight | 0.1600kg |
Shipping Width | 0.150m |
Shipping Height | 0.040m |
Shipping Length | 0.100m |
Shipping Cubic | 0.000600000m3 |
Type | Computer Cable Tester |
